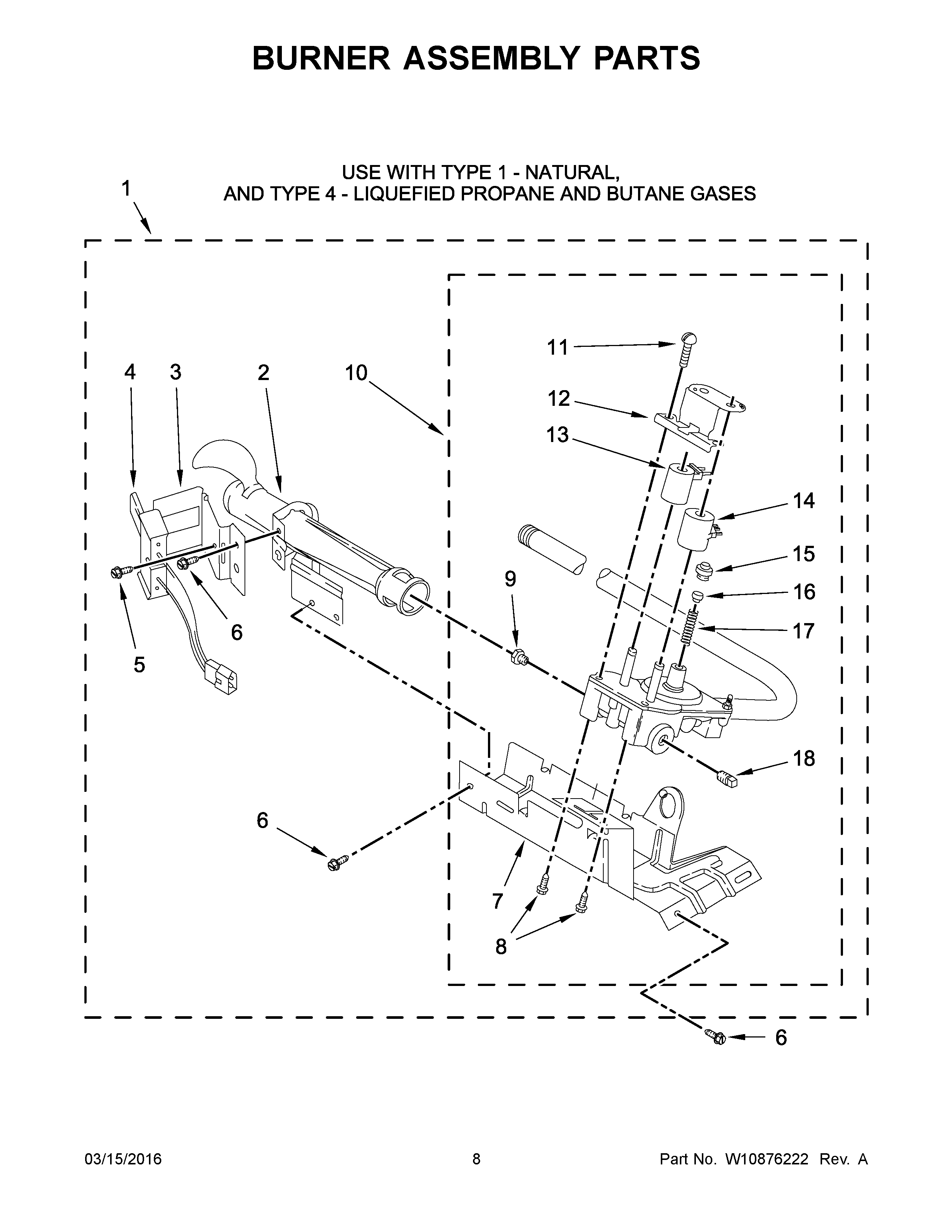

CGD147SDW2 05 – BURNER ASSEMBLY PARTS

Products

Position	Product
NI	49572A Whirlpool Dryer Propane Gas Conversion Kit
NI	CABINET (NOT A SERVICEABLE PART)
1	W10823508 Whirlpool Gas Burner
2	WP693140 Whirlpool Burner
3	WP694298 Whirlpool Bracket
4	279311 Whirlpool Dryer Flat Igniter with Bracket
5	WPW10366705 Whirlpool Screw
6	SCREW
7	Base, Burner
8	WP693995 Whirlpool Screw
9B	WP234868 Whirlpool Gas Orifice
9A	WP229742 Whirlpool Gas Orifice
9	WP234826 Whirlpool Gas Orifice
10	WP8318277 Whirlpool Gas Valve
11	694421 Whirlpool Screw Assembly
12	694538 Whirlpool Bracket
14	279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15	WP694424 Whirlpool Limiter
16	WP694423 Whirlpool Regulator
17	WP694422 Whirlpool Spring
18	W10295523 Whirlpool Plug
