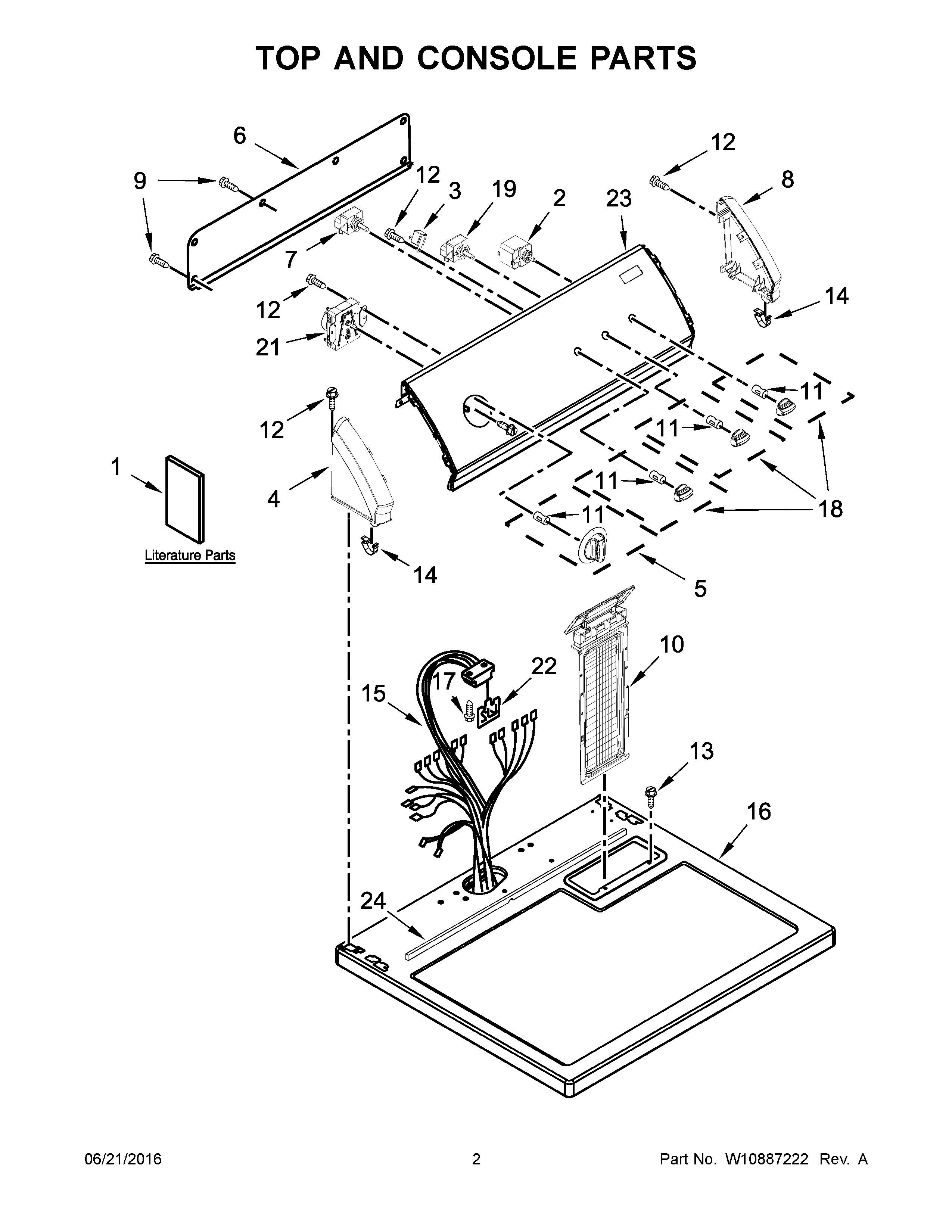

CGD147SDW3 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BWIRING DIAGRAM
1AUSE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
2WPW10117655 Whirlpool Dryer Start Switch
3WP694419 Whirlpool Buzzer Adjuster
4WP8559502 Whirlpool Endcap Assembly
5W10317457 Whirlpool Knob
6W10103406 Whirlpool Rear Panel
78530169 Whirlpool Switch
8WP8559501 Whirlpool Endcap
9WP693995 Whirlpool Screw
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
14WP8312709 Whirlpool Endcap Clip
15HARNESS, WIRING
16WP8563663 Whirlpool Top Assembly
17W11693756 Whirlpool Screw Assembly
18W10317458 Whirlpool Knob
19WP3405156 Whirlpool Switch
20WP3400818 Whirlpool Screw
21TIMER
22WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
23W10774834 Whirlpool Control Panel
24W10316616 Whirlpool Seal
