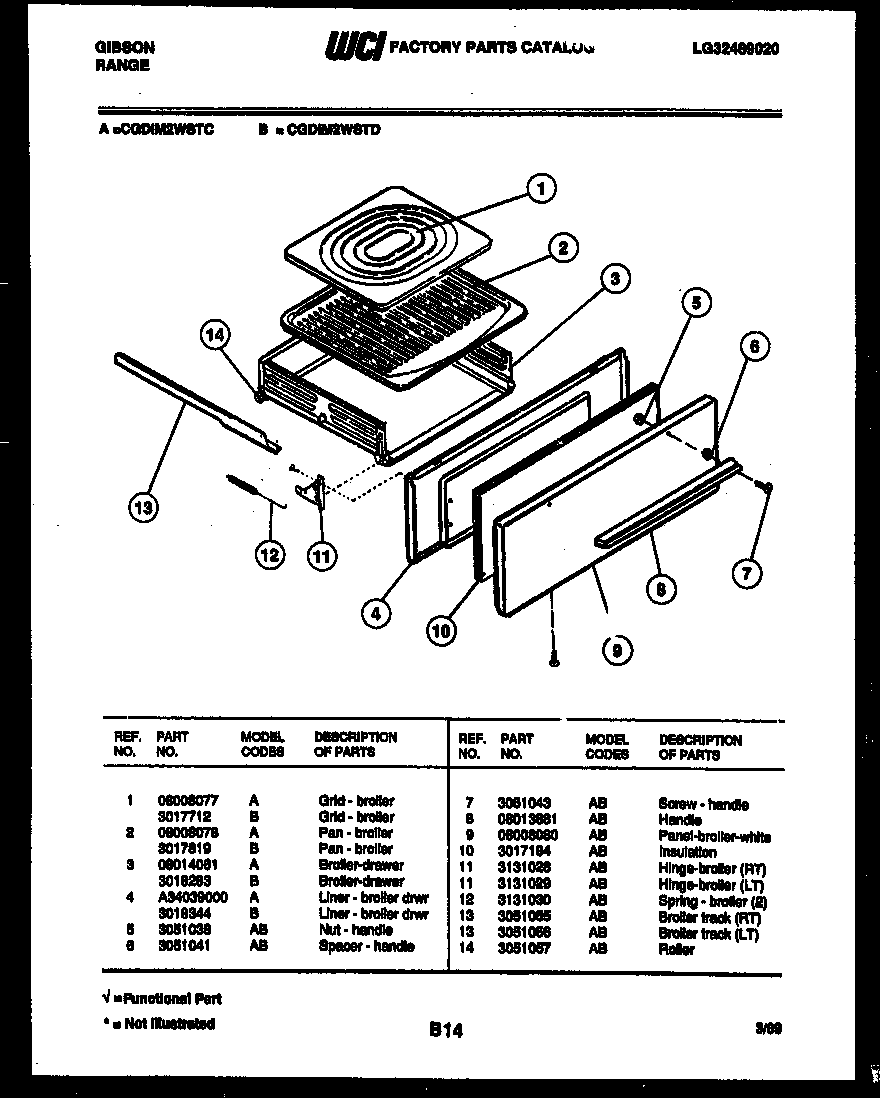

CGD1M2WSTC 05 – BROILER DRAWER PARTS

CGD1M2WSTC 05 – BROILER DRAWER PARTS

Written by

in

CGD1M2WSTC 05 – BROILER DRAWER PARTS

Products

PositionProduct
1INSERT – BROILER PAN
2WCI 08008078
35304504568 Frigidaire Drawer Assembly
4WCI A34039000
55303013272 Frigidaire Oven Nut
6SPACER HANDLE (2)
75303292012 Frigidaire Oven Screw
8WCI 08013881
9WCI 08008080
10WCI 3017184
11HINGE – RH
11HINGE – LH
12SPRING (2)
13TRACK LEFT HAND
13TRACK RIGHT HAND
14WCI 3051057
