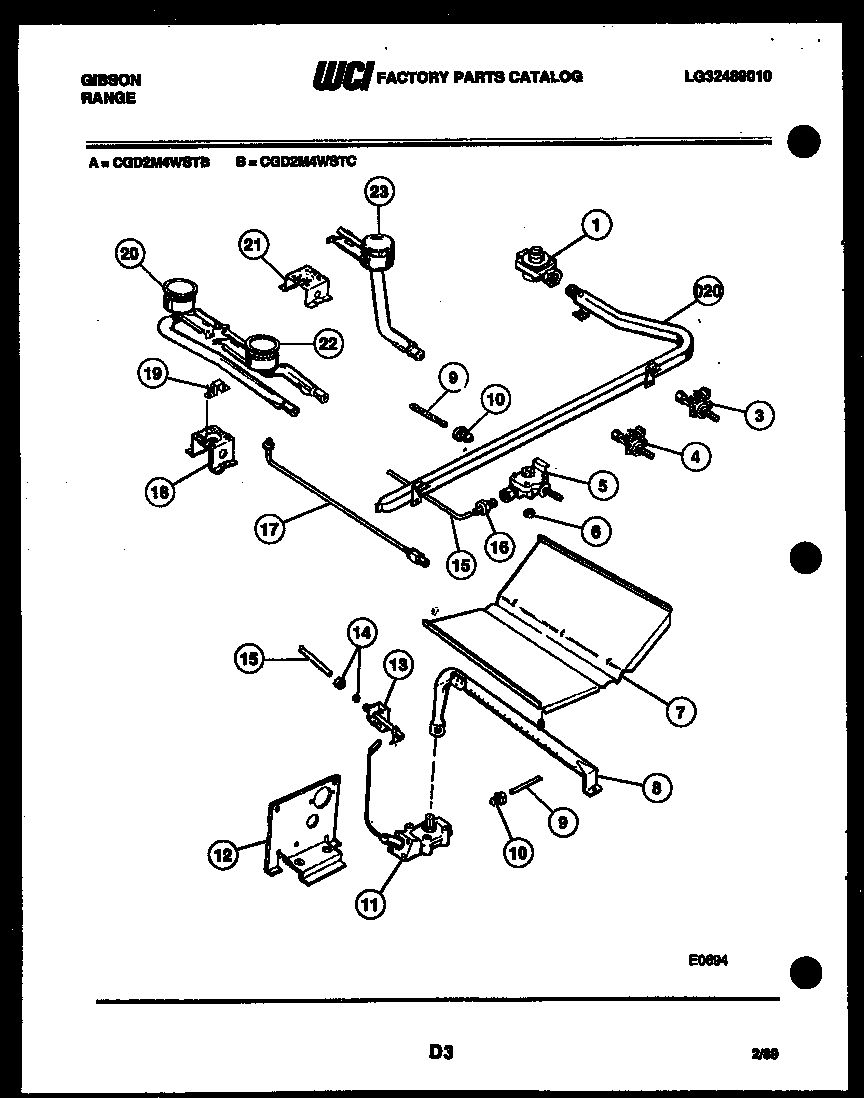

CGD2M4WSTB 04 – BURNER PARTS

CGD2M4WSTB 04 – BURNER PARTS

Written by

in

CGD2M4WSTB 04 – BURNER PARTS

Products

PositionProduct
15308007974 Frigidaire Pressure Regulator
2WCI AP254185
3WCI 3131057
4GRIDDLE VALVE
5WCI 08013927
6NUT – WING
7BAFFLE-OVEN BURNER
8WCI 3131062
9TUBE-FEED OVEN
10BUT – 3/8 LOXIT
11WCI 3131068
12SUPPORT-OVEN SAFETY VALVE
13PILOT – OVEN
14NUT COMPRESSION W/ SLEEVE
15TUBE OVEN PILOT
16NUT
17AWCI AP288035
17PILOT-TOP BURNER (RIGHT)
18SUPPORT – TOP BURNER
19STRAP – PILOT SHIELD
20BURNER – TOP REAR
21SUPPORT – GRID BURNER
22BURNER – TOP FRONT
23WCI 3131882
