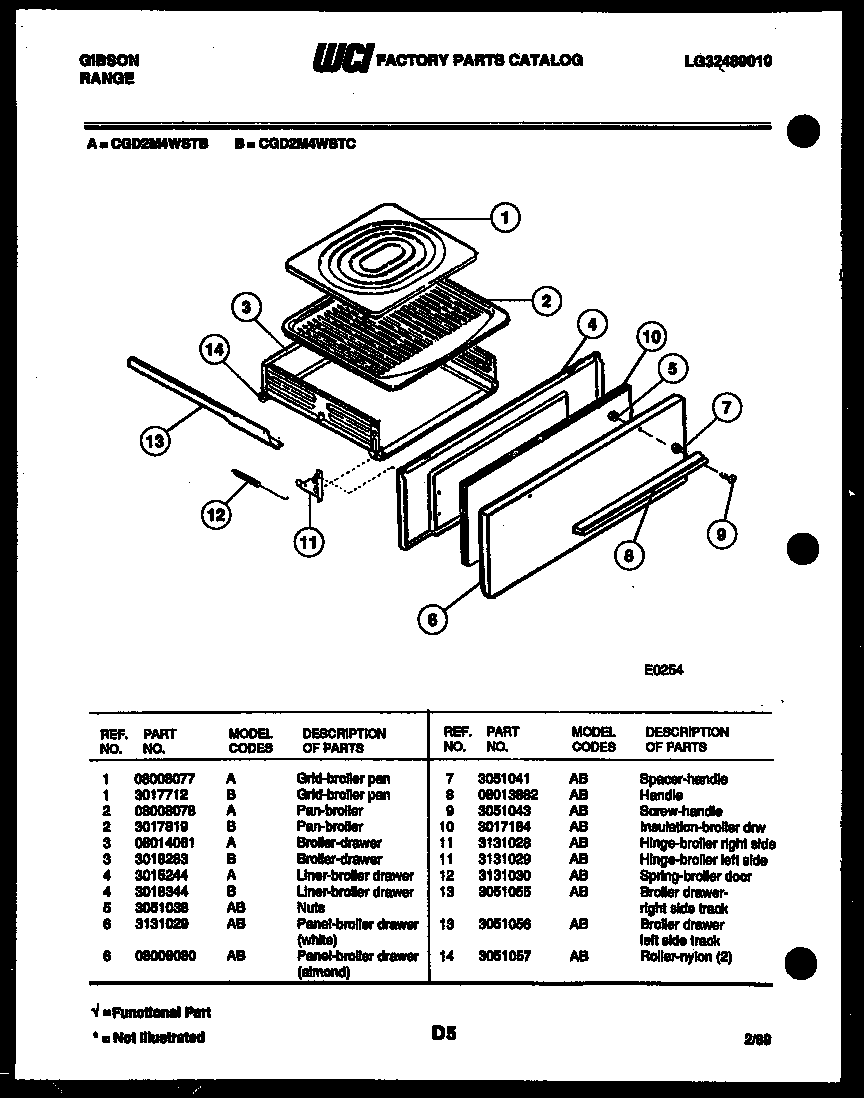

CGD2M4WSTB 05 – BROILER DRAWER PARTS

CGD2M4WSTB 05 – BROILER DRAWER PARTS

Written by

in

CGD2M4WSTB 05 – BROILER DRAWER PARTS

Products

PositionProduct
1INSERT – BROILER PAN
2WCI 08008078
35304504568 Frigidaire Drawer Assembly
4LINER – BROILER
55303013272 Frigidaire Oven Nut
6WCI 08008080
7SPACER HANDLE (2)
8WCI 08013882
95303292012 Frigidaire Oven Screw
10WCI 3017184
11HINGE – LH
11HINGE – RH
12SPRING (2)
13TRACK LEFT HAND
13TRACK RIGHT HAND
14WCI 3051057
