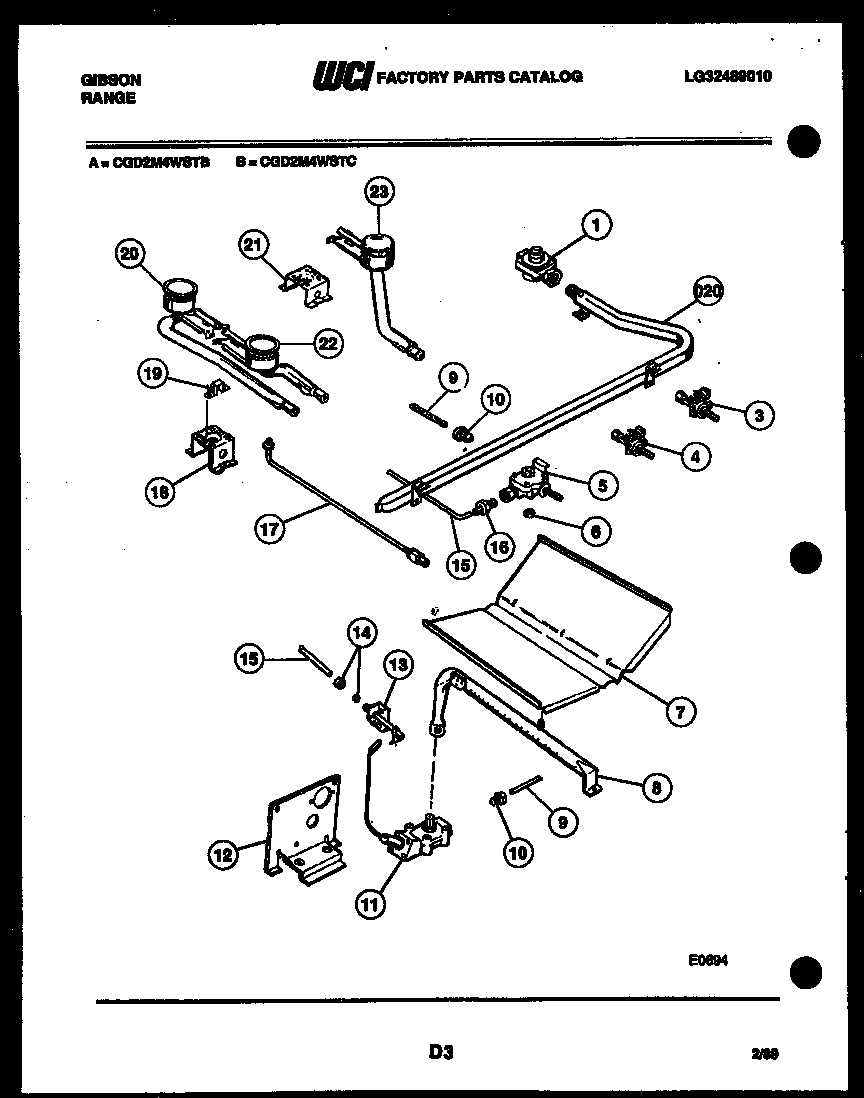

CGD2M4WSTC 04 – BURNER PARTS

Products

Position	Product
1	5308007974 Frigidaire Pressure Regulator
2	WCI AP254185
3	WCI 3131057
4	GRIDDLE VALVE
5	WCI 08013927
6	NUT - WING
7	BAFFLE-OVEN BURNER
8	WCI 3131062
9	TUBE-FEED OVEN
10	BUT - 3/8 LOXIT
11	WCI 3131068
12	SUPPORT-OVEN SAFETY VALVE
13	PILOT - OVEN
14	NUT COMPRESSION W/ SLEEVE
15	TUBE OVEN PILOT
16	NUT
17A	WCI AP288035
17	PILOT-TOP BURNER (RIGHT)
18	SUPPORT - TOP BURNER
19	STRAP - PILOT SHIELD
20	BURNER - TOP REAR
21	SUPPORT - GRID BURNER
22	BURNER - TOP FRONT
23	WCI 3131882
