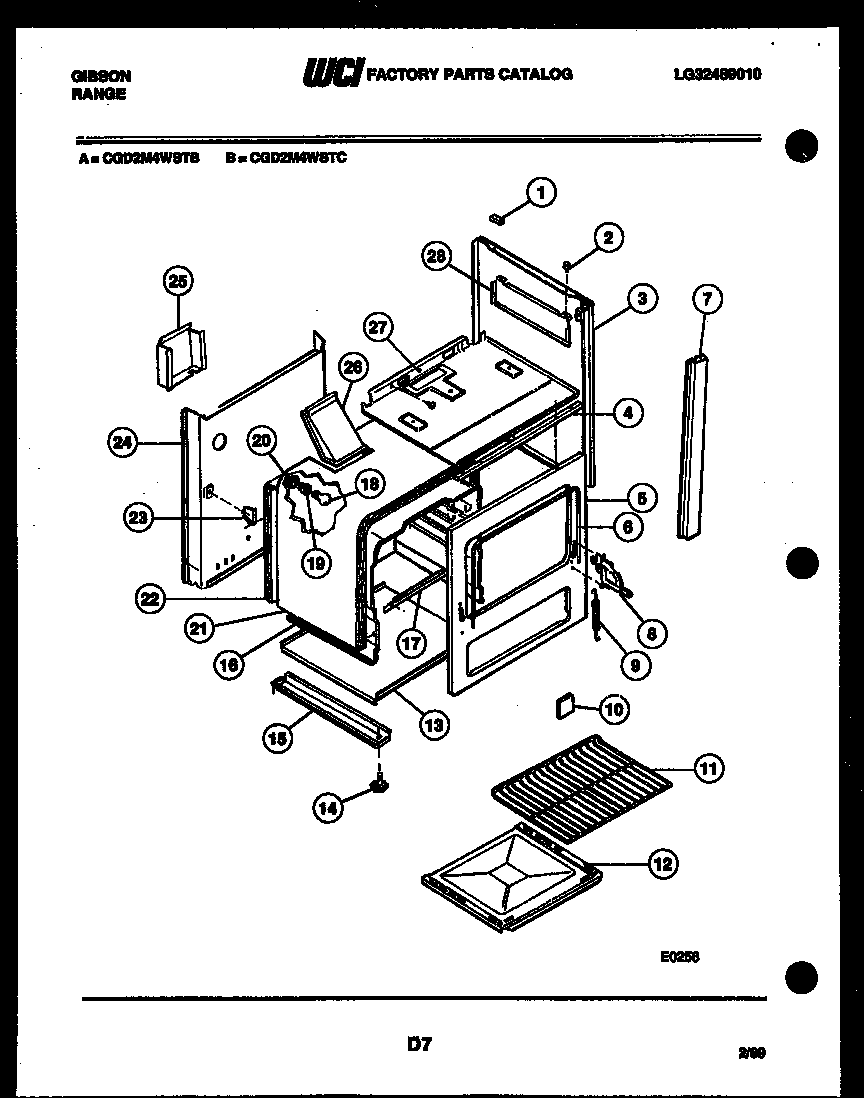

CGD2M4WSTC 07 – BODY PARTS

Products

Position	Product
*15766	REFLECTOR PLATE (NON-ILLUSTRATED)
*15766	CLIP BACKSPLASH CORNER
1	GROMMET MAIN TOP
2	GROMMET
3	PANEL-BODYSIDE (WHITE) (2)
3	WCI 08014019
4	WCI 08014025
5	WCI 3017790
6	WCI 08008022
7	PANEL - FILLER (WHITE)
7	PANEL FILLER - ALMOND
8	CAM-DOOR RIGHT HAND
8	318348801 Frigidaire Oven Left Side Door Hinge
9	SPRING - OVEN DOOR
10	SUPPORT - BASE RAIL (2)
11	WCI 3014714
12	WCI 3018282
13	WCI 3011645
14	WCI 3051080
15	BASE-RAIL (2)
16	WCI 3018286
16	OVEN LINER-SIDE RH
16	OVEN LINER-SIDE LH
16	WCI 3018347
17	SUPPORT-OVEN BOTTOM
18	316538904 Frigidaire Oven Lamp Light
19	316116400 Frigidaire Oven Light Socket
20	WCI 3051511
21	WCI 3017171
22	WCI 3017172
23	SUPPORT-REAR OVN (2)
24	WCI 08013945
25	WCI 3018340
26	WCI 3017173
27	WCI 3017993
28	BUMPER (2)
28	PANEL-DRAWER ALMD
