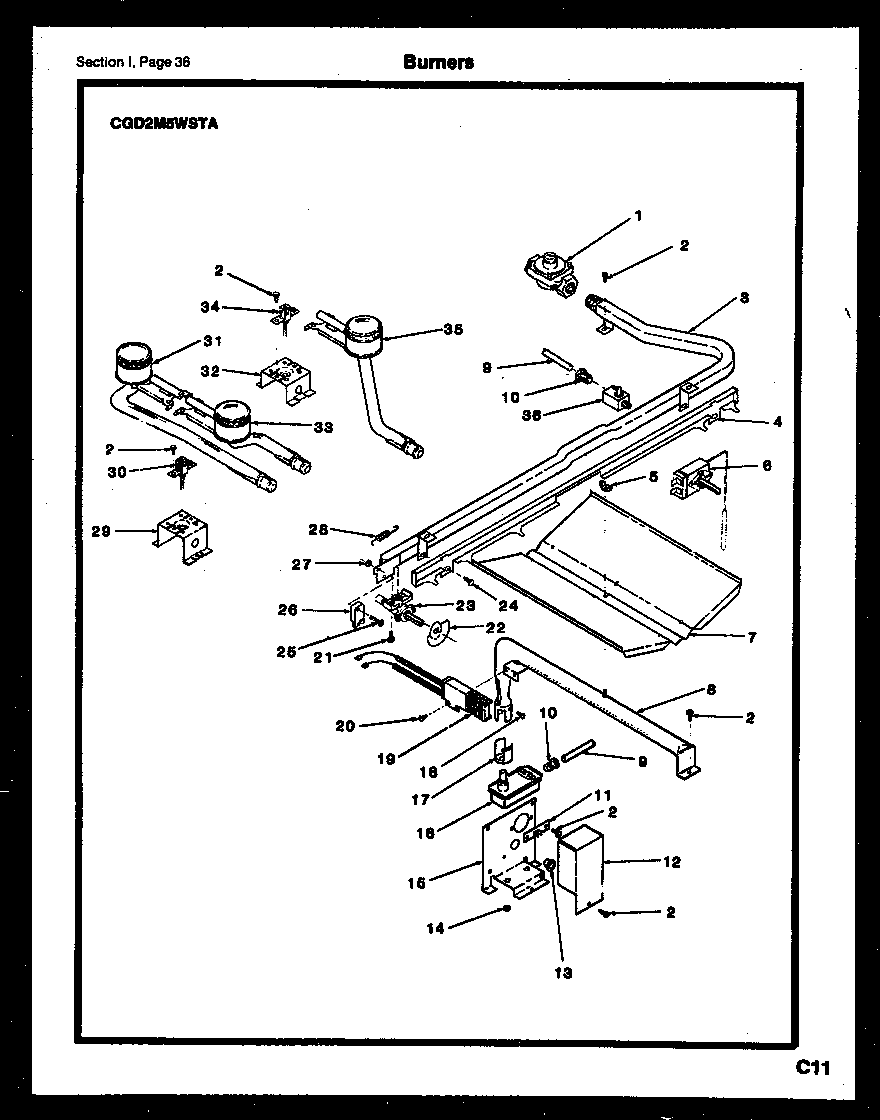

CGD2M5WSTA 24 – BURNERS

Products

Position	Product
1	5308007974 Frigidaire Pressure Regulator
2	WCI AP051056
3	WCI AP245174
4	WCI A66020000
5	WING NUT
6	WCI AP367066
6A	CLIP, CAP. TUBE
7	BAFFLE
8	BURNER
9	WCI AP377129
10	NUT
11	TERMINAL BLOCK
12	VALVE COVER
13	WCI AP074001
14	WCI AP265008
15	SUPPORT
16	WCI AP385181
17	WCI AP330003
19	5303935066 Frigidaire Oven Flat Igniter 17" Leads
20	SCREW
21	WCI AP051027
22A	WCI A22003000
22	WCI A22002000
23	WCI AP385194
23A	WCI AP385195
24	WCI AP051065
25	SCREW
26	WCI AP351123
27	WCI AP265017
28	WCI AP339058
29	WCI A74082000
30A	TOP BURNER LT.
30	WCI AP205018
31	WCI AP072031
32	WCI A74084000
33	WCI AP072030
34	IGNITER – TOP BURNER RT. (NON-ILLUSTRATED)
35	WCI AP072032
36	VALVE
