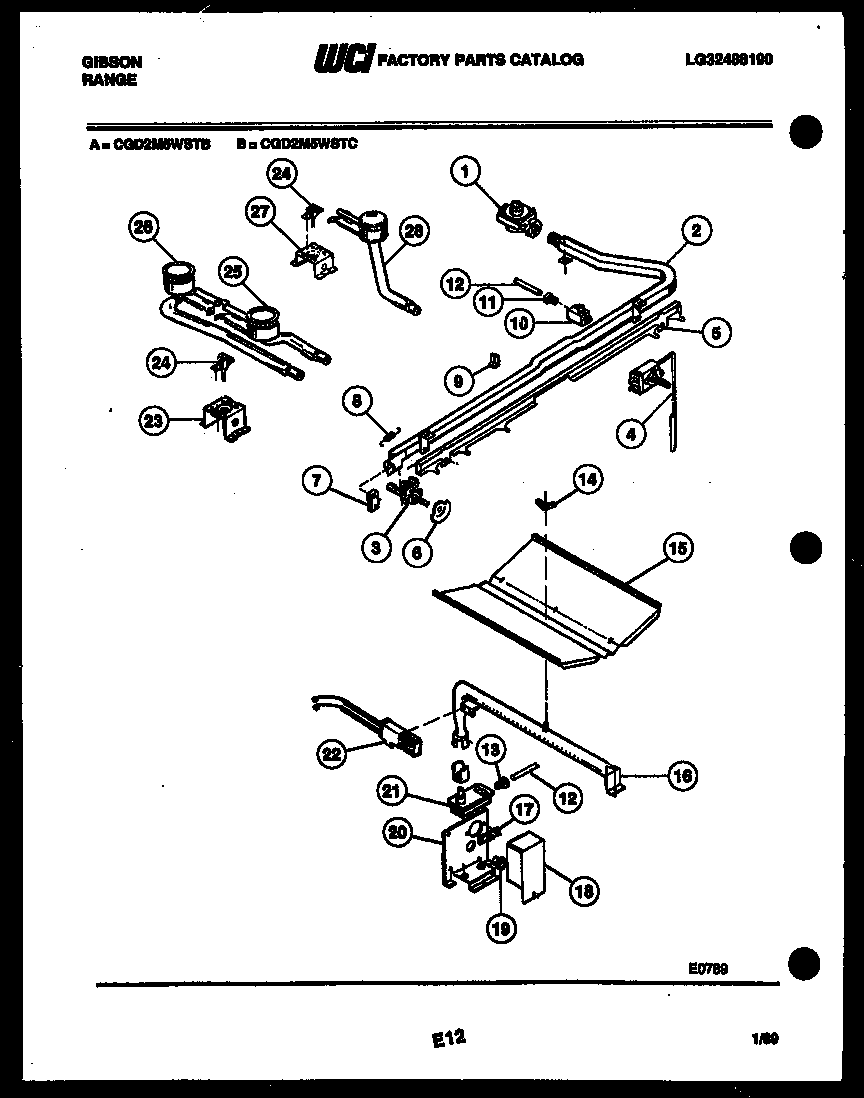

CGD2M5WSTB 06 – BURNER PARTS

Products

Position	Product
1	5308007974 Frigidaire Pressure Regulator
2	MANIFOLD PIPE
3A	GRIDDLE VALVE
3	WCI 3131057
4	THERMOSTAT
5	WCI 3018341
6A	WCI 3131859
6	CAM TOP BURNER VALVE
7	MICRO – SWITCH
8	WCI 3131096
9	CLIP CAPILLARY (2)
10	WCI 3131099
11	FITTING LOXIT
12	TUBING-OVEN SPLY 3/8
13	LOXIT – NUT (2)
14	NUT – WING
15	BAFFLE-OVEN BURNER
16	WCI 3131084
17	TERMINAL BLOCK
18	COVER – OVEN SAFETY VALVE
19	SNAP – BUSHING
20	SUPPORT-OVEN SAFETY VALVE
21	VALVE-SAFETY
22	5303935066 Frigidaire Oven Flat Igniter 17" Leads
23	SUPPORT – TOP BURNER
24	IGNITER-TOP BURNER 48“
25	BURNER – TOP FRONT
26	BURNER – TOP REAR
27	SUPPORT – GRID BURNER
28	WCI 3131882
