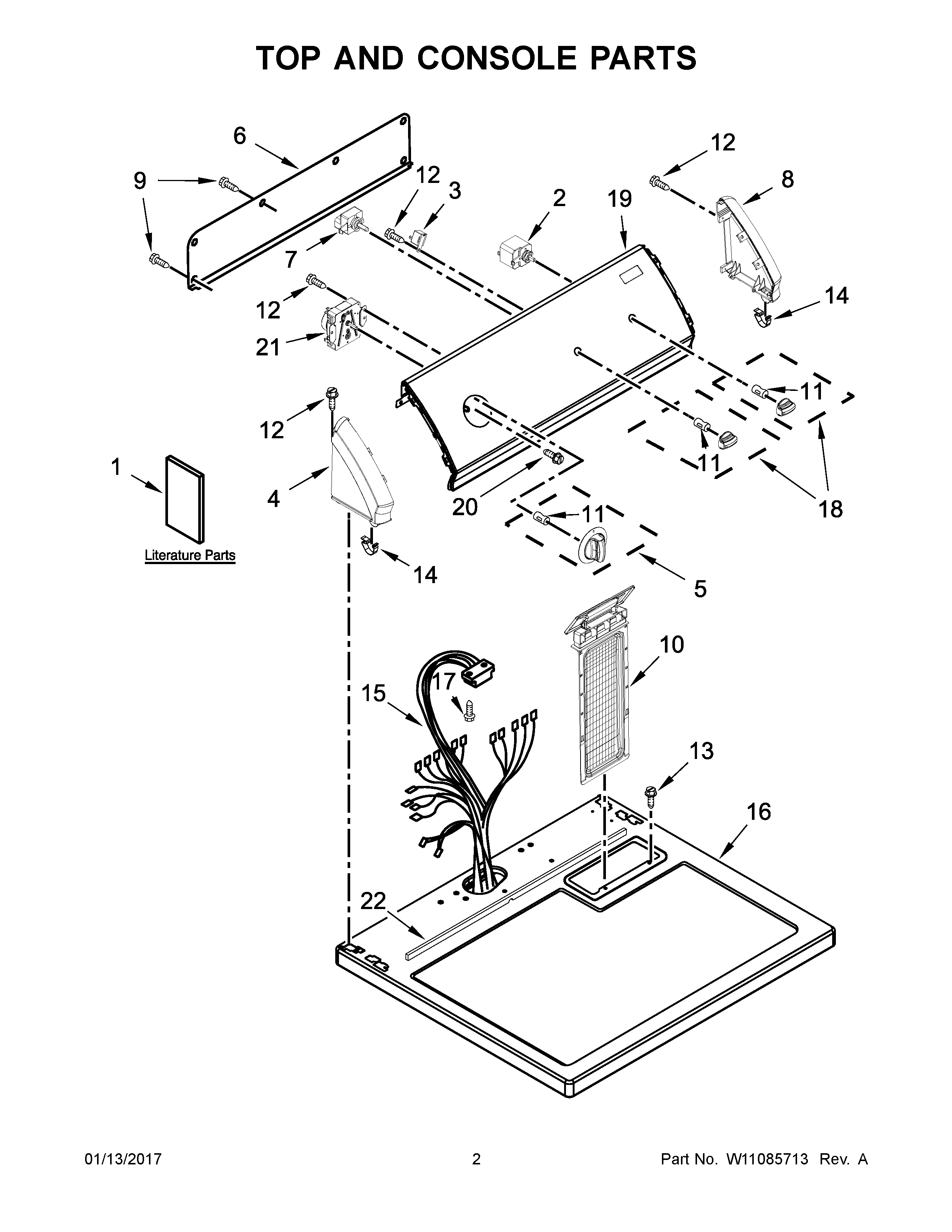

CGD7006GW0 02 – TOP AND CONSOLE PARTS

CGD7006GW0 02 – TOP AND CONSOLE PARTS

Written by

in

CGD7006GW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1AUSE & CARE GUIDE
1BWIRING DIAGRAM
2WPW10117655 Whirlpool Dryer Start Switch
3WP694419 Whirlpool Buzzer Adjuster
4WP8559502 Whirlpool Endcap Assembly
5W10317457 Whirlpool Knob
6W10103406 Whirlpool Rear Panel
7WP3399639 Whirlpool Switch
8WP8559501 Whirlpool Endcap
9WP693995 Whirlpool Screw
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
14WP8312709 Whirlpool Endcap Clip
15HARNESS, WIRING
16WP8563663 Whirlpool Top Assembly
17W11693756 Whirlpool Screw Assembly
18W10317458 Whirlpool Knob
19W11089351 Whirlpool Control Panel
20WP3400818 Whirlpool Screw
21WPW10185981 Whirlpool Timer
22W10316616 Whirlpool Seal
