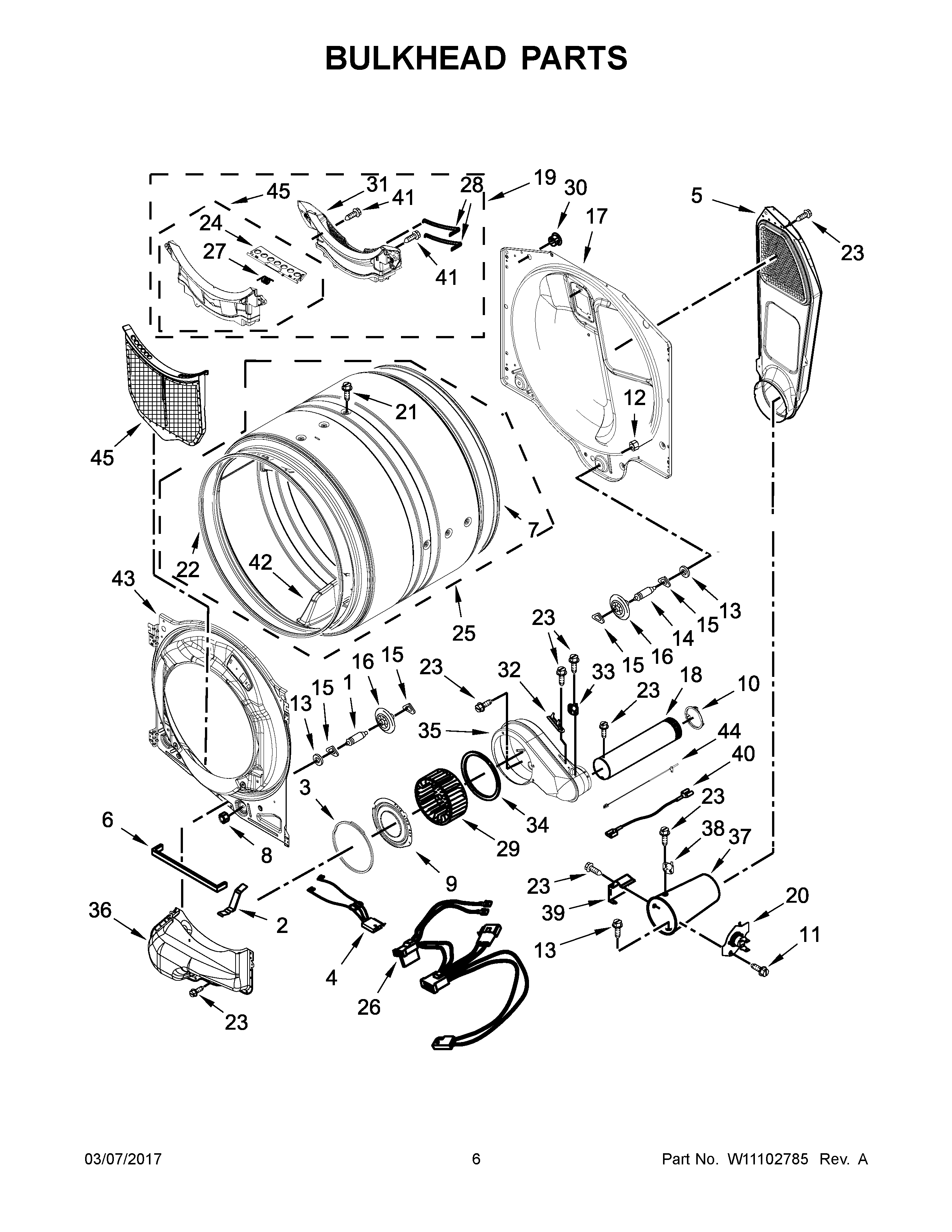

CGD7464GW0 04 – BULKHEAD PARTS

CGD7464GW0 04 – BULKHEAD PARTS

Products

PositionProduct
1SHAFT
2W10414388 Whirlpool Clip
3W10211899 Whirlpool Seal
4WPW10298258 Whirlpool Wire Harness
5WPW10293765 Whirlpool Air Duct
6W11676493 Whirlpool Seal Assembly
7280114 Whirlpool Dryer Drum Seal
8WPW10080210 Whirlpool Nut
9W10211901 Whirlpool Cover Assembly
10WPW10344699 Whirlpool Collar
11WP693995 Whirlpool Screw
12WPW10080190 Whirlpool Nut
13W11236646 Whirlpool Washer Assembly
14SHAFT
15WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
16WPW10314173 Whirlpool Dryer Drum Support Wheel
17W11299300 Whirlpool Bulkhead Assembly
18WPW10342188 Whirlpool Exhaust Pipe
19HOUSNG-DRYER LINT
20WP8573713 Whirlpool Thermal Fuse
21W10853898 Whirlpool Screw
22W11193479 Whirlpool Seal
23WP488729 Whirlpool Refrigerator Door Screw
24SCREEN - LINT. ALPHA W/FELT
25W10508188 Whirlpool Drum
26W10708958 Whirlpool Wire Harness
27W11678124 Whirlpool Dryer Spring
28WP3387223 Whirlpool Electrode Assembly
29WP697772 Whirlpool Dryer Blower Wheel
308529007 Whirlpool Plug
31W11125442 Whirlpool Outer Grille
32FUSE-THRML
33WP8577274 Whirlpool Dryer Thermistor
34WP697770 Whirlpool Blower Cover Plate Seal
35WPW10211911 Whirlpool Housing
36WPW10211896 Whirlpool Duct Lint
37WP8573824 Whirlpool Funnel
38THRMST-FIX
39WP338906 Whirlpool Dryer Gas Sensor
40W10525140 Whirlpool Wire Harness
41W11590579 Whirlpool Screw
42W10416098 Whirlpool Baffle Assembly
43W11712678 Whirlpool Bulkhead Assembly
44W11396709 Whirlpool Gas Inlet Thermostat
45W10905013 Whirlpool Door
