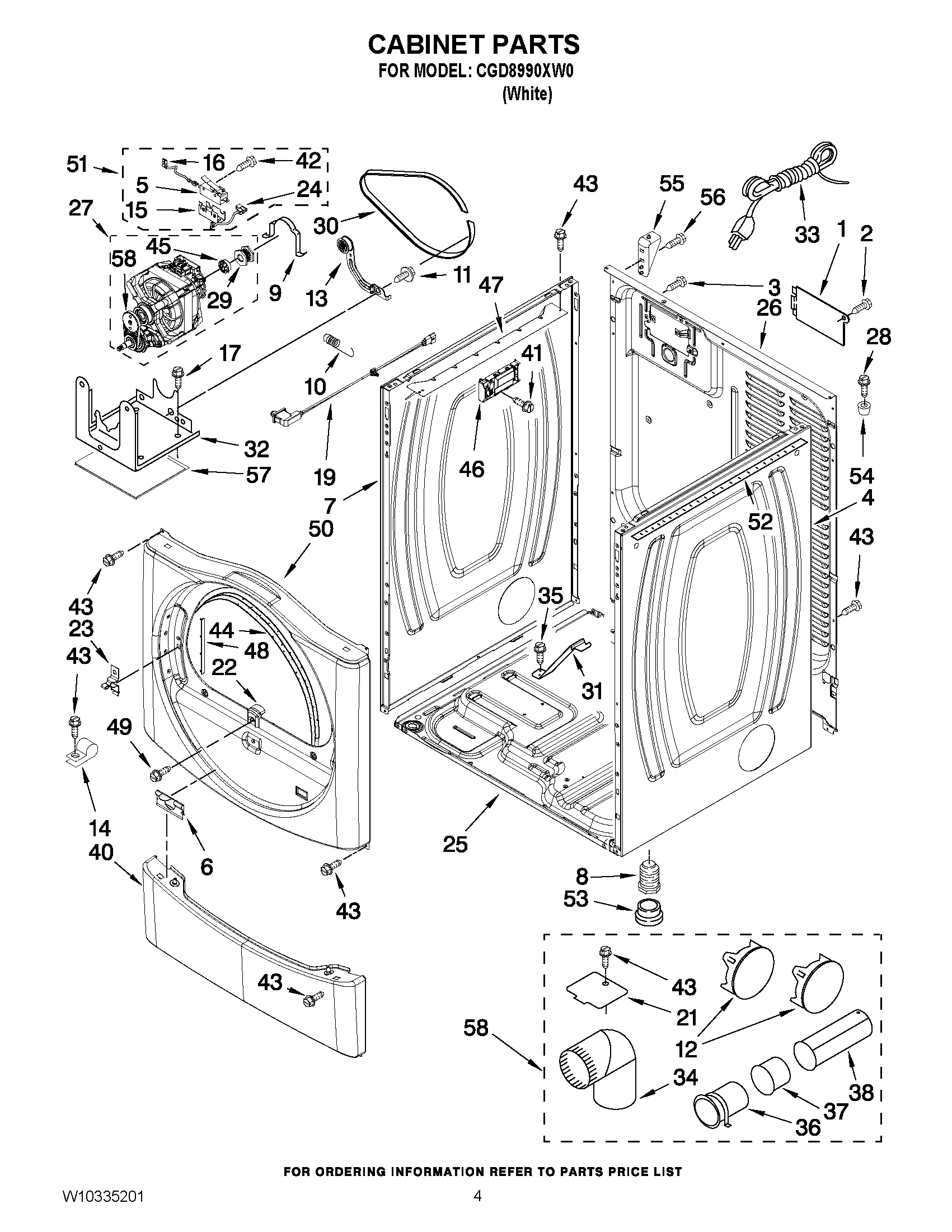

CGD8990XW0 02 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
NI	W10331132 Whirlpool Plug
1	W10819767 Whirlpool Cover
2	WP90767 Whirlpool Screw
3	W10850756 Whirlpool Screw
4	W10542714 Whirlpool Panel
5	WP8564010 Whirlpool Plug Switch
6	W11295573 Whirlpool Clip
9	WP660658 Whirlpool Clamp
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WPW10404617 Whirlpool Plug Assembly
13	WPW10344192 Whirlpool Idler Pulley
14	3978776 Whirlpool Bracket
15	8564011 Whirlpool Bracket
16	W10167613 Whirlpool Wire
17	SCREW
19	W10128087 Whirlpool Door Switch
21	WPW10354249 Whirlpool Cover
22	8565083 Whirlpool Ramp Assembly
23	WP8565122 Whirlpool Strike Assembly
24	WIRE, MOTOR TO BELT SWITCH
25	W11215531 Whirlpool Base
26	Panel, Rear
27	W11234001 Whirlpool Drive Motor
28	3353994 Whirlpool Screw Assembly
29	WP8066184 Whirlpool Dryer Motor Pulley
30	WPW10131172 Whirlpool Belt
31	W10181903 Whirlpool Bracket
32	W11676491 Whirlpool Base
33	W11628810 Whirlpool Power Cord
34	WPW10416072 Whirlpool Elbow
35	WP693995 Whirlpool Screw
36	WP8563747 Whirlpool Exhaust Pipe
37	WPW10331278 Whirlpool Exhaust Pipe
38	WP8563749 Whirlpool Exhaust Pipe
40	WP8540621 Whirlpool Toe Panel
42	W10002600 Whirlpool Screw
44	WP3387242 Whirlpool Seal
45	WP3393657 Whirlpool Belt Retainer
46	CONTROL BOARD
47	WP8563727 Whirlpool Bracket
48	8565043 Whirlpool Plug
49	WP308685 Whirlpool Microwave Screw
50	WPW10117421 Whirlpool Panel
51	W11247665 Whirlpool Switch
52	Seal, Foam
53	WP3391943 Whirlpool Foot Boot
54	WPL 356674
55	W10137398 Whirlpool Block
56	WP488729 Whirlpool Refrigerator Door Screw
57	W11113654 Whirlpool Pad
58	WP3405160 Whirlpool Belt Assembly
