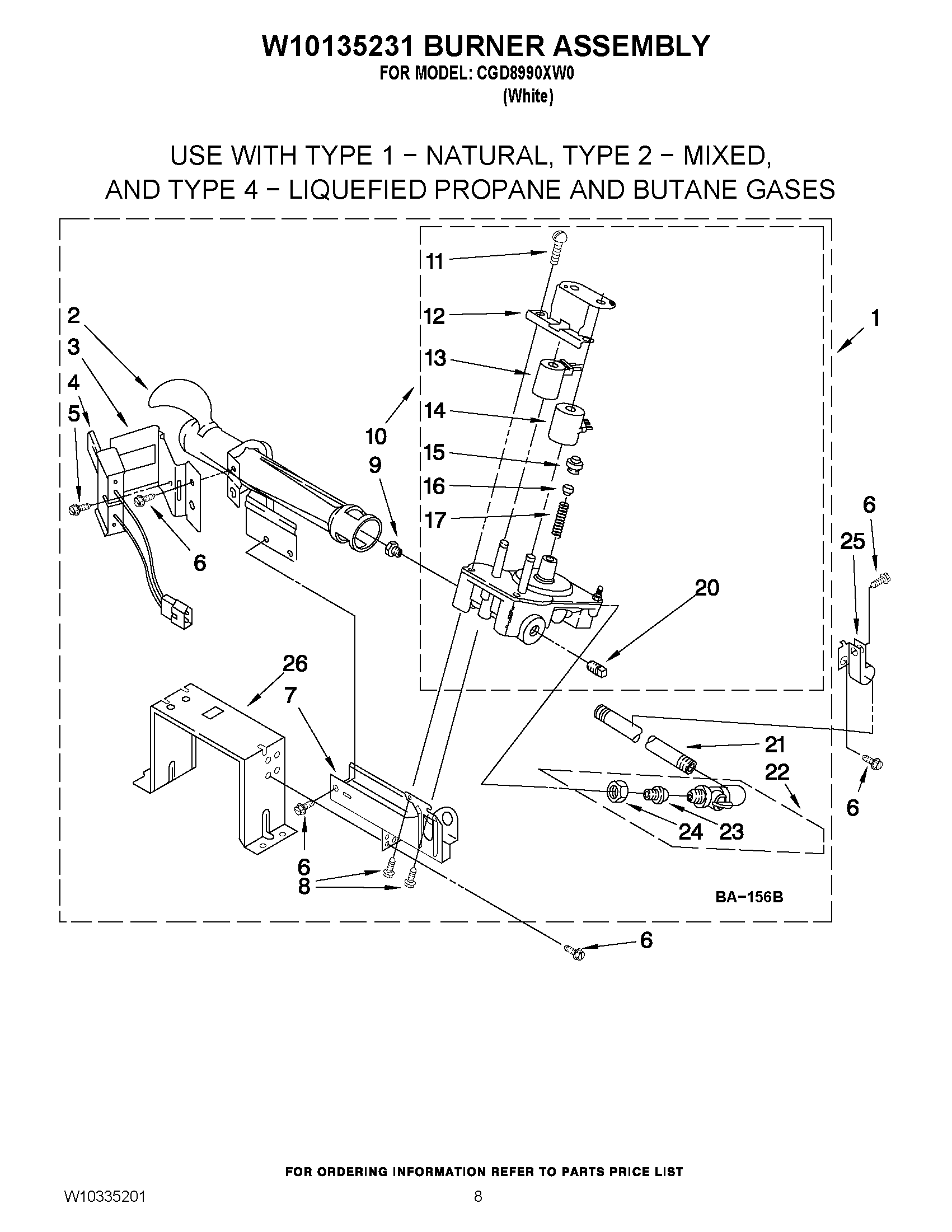

CGD8990XW0 04 – W10135231 BURNER ASSEMBLY

CGD8990XW0 04 – W10135231 BURNER ASSEMBLY

Written by

in

CGD8990XW0 04 – W10135231 BURNER ASSEMBLY

Products

PositionProduct
NIW10436933 Whirlpool LP Gas Connection
1Burner Assembly 60 Hz. (Type 1, 2 & 3) (White Rodgers)
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6SCREW
7Base, Burner
8WP693995 Whirlpool Screw
9WP234868 Whirlpool Gas Orifice
9Orifice, Burner (Type 1)
10WPW10141728 Whirlpool Gas Valve
11694421 Whirlpool Screw Assembly
12694538 Whirlpool Bracket
14279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15WP694424 Whirlpool Limiter
16WP694423 Whirlpool Regulator
17WP694422 Whirlpool Spring
20W10295523 Whirlpool Plug
21W10110395 Whirlpool Pipe
22697441 Whirlpool Valve
233393767 Whirlpool Pipe
24Nut, Compression
253387561 Whirlpool Clamp
26Bracket, Support
