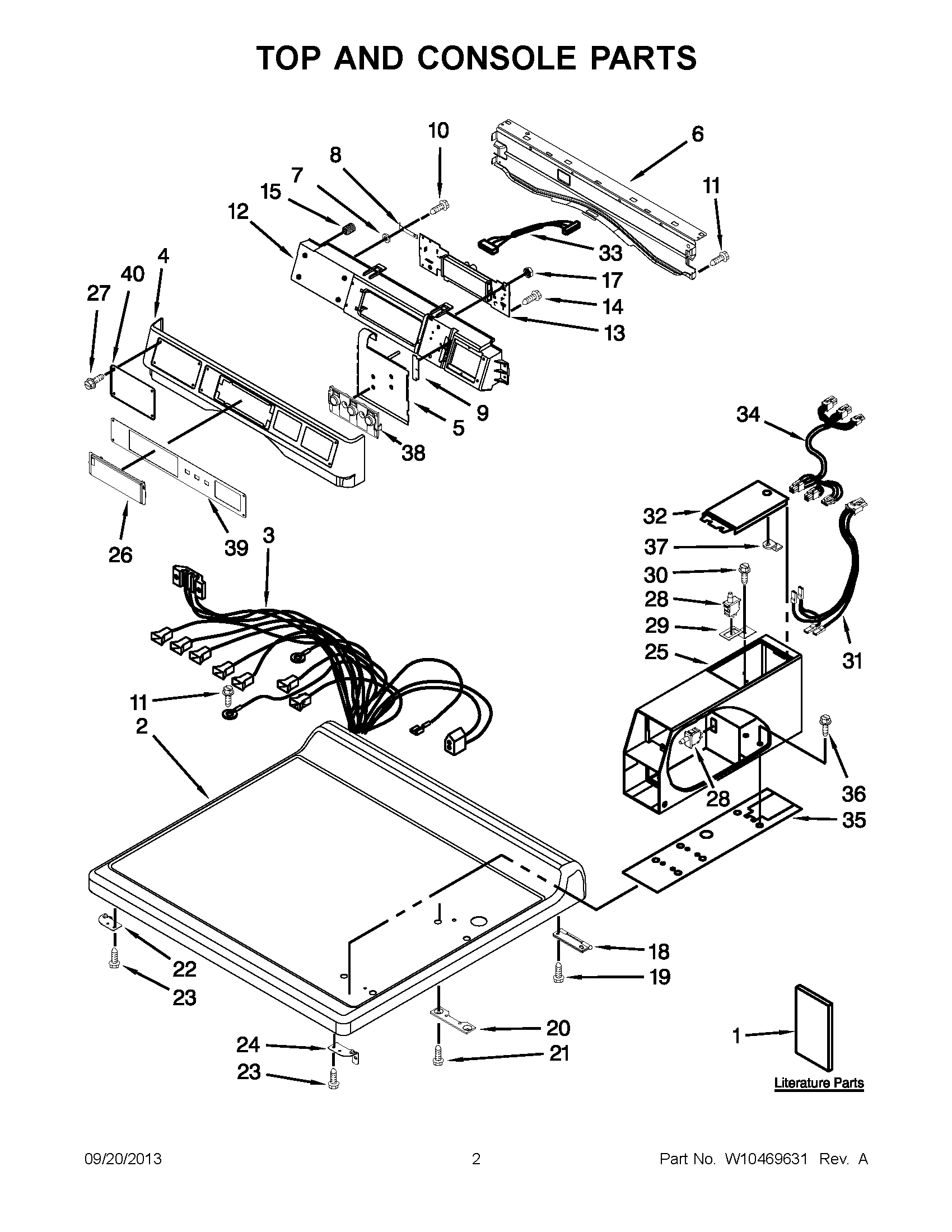

CGD8990XW2 02 – TOP AND CONSOLE PARTS
Written by
in
CGD8990XW2 02 – TOP AND CONSOLE PARTS
Products
Position
Product
1
WIRING DIAGRAM
1
INSTALLATION INSTRUCTION
1
TECH SHEET
2
WPW10137411 Whirlpool Top
3
W10555112 Whirlpool Wire Harness
4
W10779120 Whirlpool Console
5
WPW10135255 Whirlpool Switch
6
WP8565237 Whirlpool Bracket Assembly
7
W10189075 Whirlpool Washer
8
GROUND-JUMPER, TAB
9
W10187276 Whirlpool Gasket
10
WP488234 Whirlpool Air Conditioner Screw
12
W10137427 Whirlpool Console
14
489136 Whirlpool Refrigerator Screw
15
WPW10189313 Whirlpool Insert
17
WPW10139046 Whirlpool Nut
18
WP8565018 Whirlpool Hinge
19
WP488627 Whirlpool Refrigerator Screw
20
3347825 Whirlpool Plate
21
W10841059 Whirlpool Screw
22
W10137445 Whirlpool Bracket Assembly
23
WP488729 Whirlpool Refrigerator Door Screw
24
W10137444 Whirlpool Bracket
25
WPW10171132 Whirlpool Case
26
WPW10267645 Whirlpool Cover Assembly
27
WPW10137457 Whirlpool Screw
28
WPW10131838 Whirlpool Voltage Switch
30
WPW10139210 Whirlpool Screw
31
W11096090 Whirlpool Wire Harness
32
W11283272 Whirlpool Washer Dryer Meter Case Access Door
33
W10166307 Whirlpool Wire Harness
34
W10166308 Whirlpool Harness Wire
35
W10137448 Whirlpool Cushion
36
W11715721 Whirlpool Screw Assembly
38
PUSH BUTTON
39
W10334890 Whirlpool Dryer Overlay
40
W10137462 Whirlpool Cover
←
