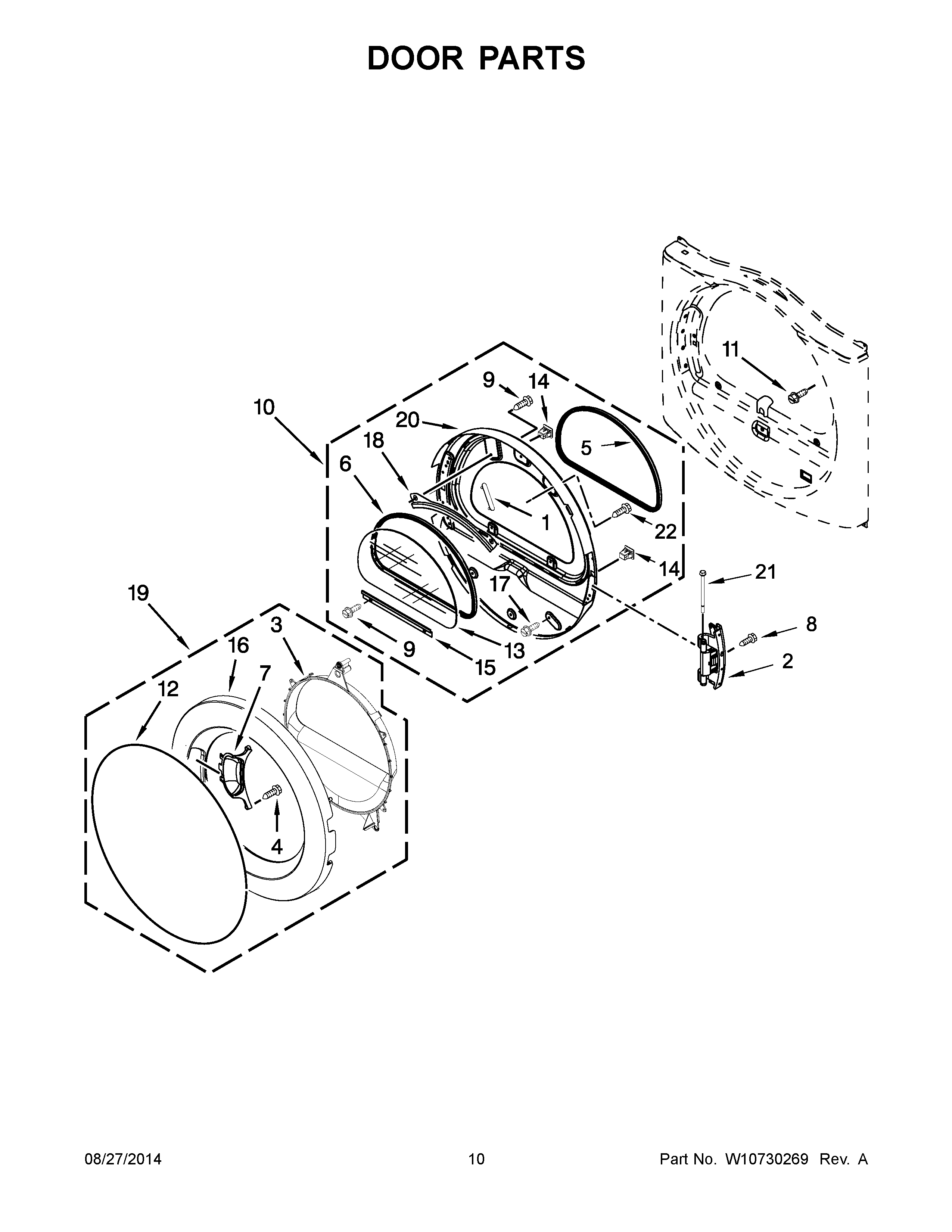

CGD9050AW0 06 – DOOR PARTS

CGD9050AW0 06 – DOOR PARTS

Written by

in

CGD9050AW0 06 – DOOR PARTS

Products

PositionProduct
1WPW10256915 Whirlpool Label
2ASSEMBLY, DOOR HINGE
3W10283424 Whirlpool Window
4SCREW
5WPW10163915 Whirlpool Door Seal
6W11706993 Whirlpool Seal
7W10215754 Whirlpool Handle
8WPW10159996 Whirlpool Screw
9WP3373329 Whirlpool Dishwasher Screw
10ASSEMBLY, INNER DOOR
11WP355515 Whirlpool Screw
12CABINET (NOT A SERVICEABLE PART)
13WPW10286878 Whirlpool Window
14279570 Whirlpool Dryer Door Latch Kit
15W10822054 Whirlpool Retainer
16W10215742 Whirlpool Door
17WP308685 Whirlpool Microwave Screw
188519356 Whirlpool Retainer
19W10215753 Whirlpool Door Assembly
20W11690171 Whirlpool Door Assembly
218565087 Whirlpool Screw
22W11116979 Whirlpool Screw
