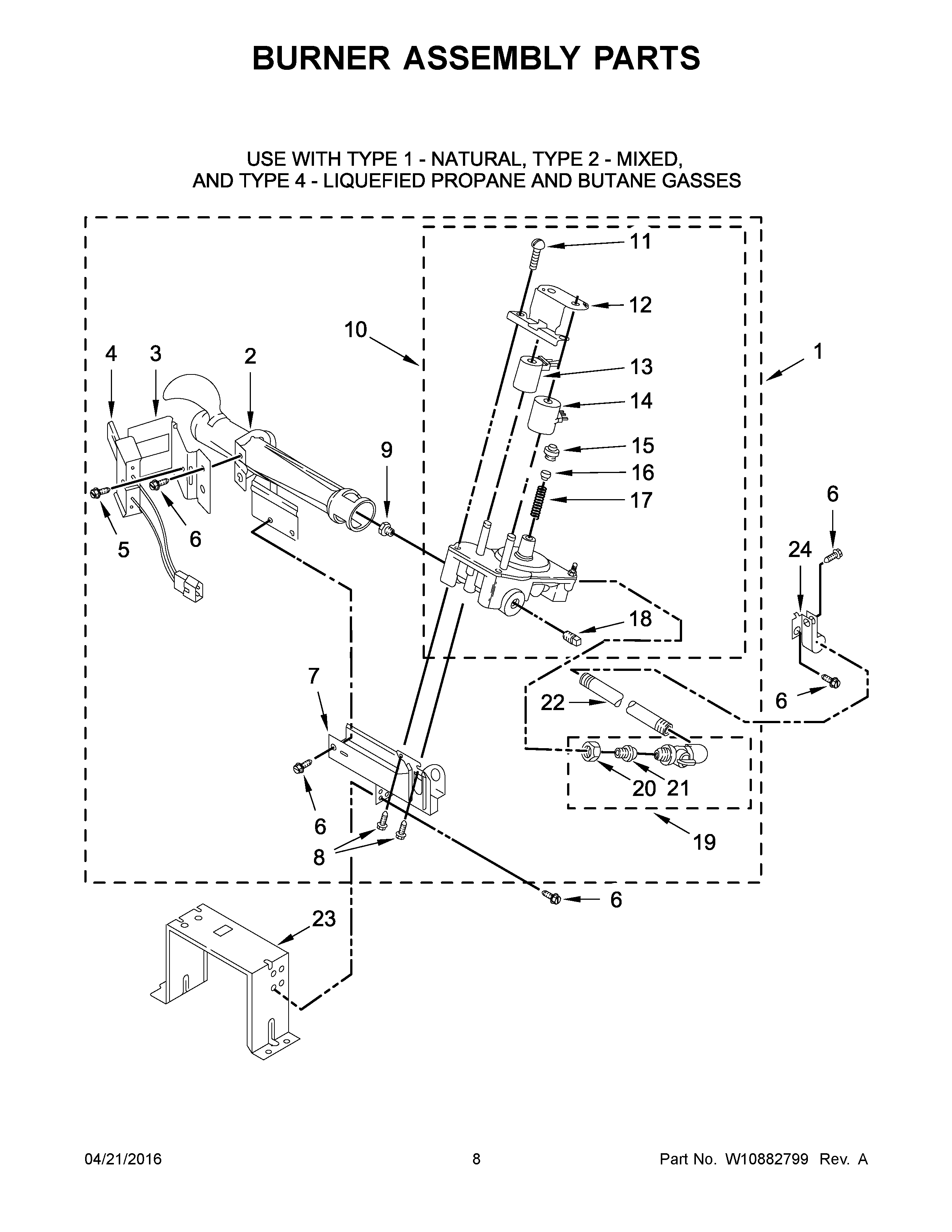

CGD9050AW1 05 – BURNER ASSEMBLY PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10402145 Whirlpool LP Gas Connection
1	Burner Assembly 60 Hz. (Type 1, 2 & 3) (White Rodgers)
2	WP693140 Whirlpool Burner
3	WP694298 Whirlpool Bracket
4	279311 Whirlpool Dryer Flat Igniter with Bracket
5	WPW10366705 Whirlpool Screw
6	SCREW
7	Base, Burner
8	WP693995 Whirlpool Screw
9	Orifice, Burner (Type 1)
9A	WP234868 Whirlpool Gas Orifice
10	WPW10141728 Whirlpool Gas Valve
11	694421 Whirlpool Screw Assembly
12	694538 Whirlpool Bracket
14	279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15	WP694424 Whirlpool Limiter
16	WP694423 Whirlpool Regulator
17	WP694422 Whirlpool Spring
18	W10295523 Whirlpool Plug
19	697441 Whirlpool Valve
20	Nut, Compression
21	3393767 Whirlpool Pipe
22	W10110395 Whirlpool Pipe
23	Bracket, Support
24	3387561 Whirlpool Clamp
