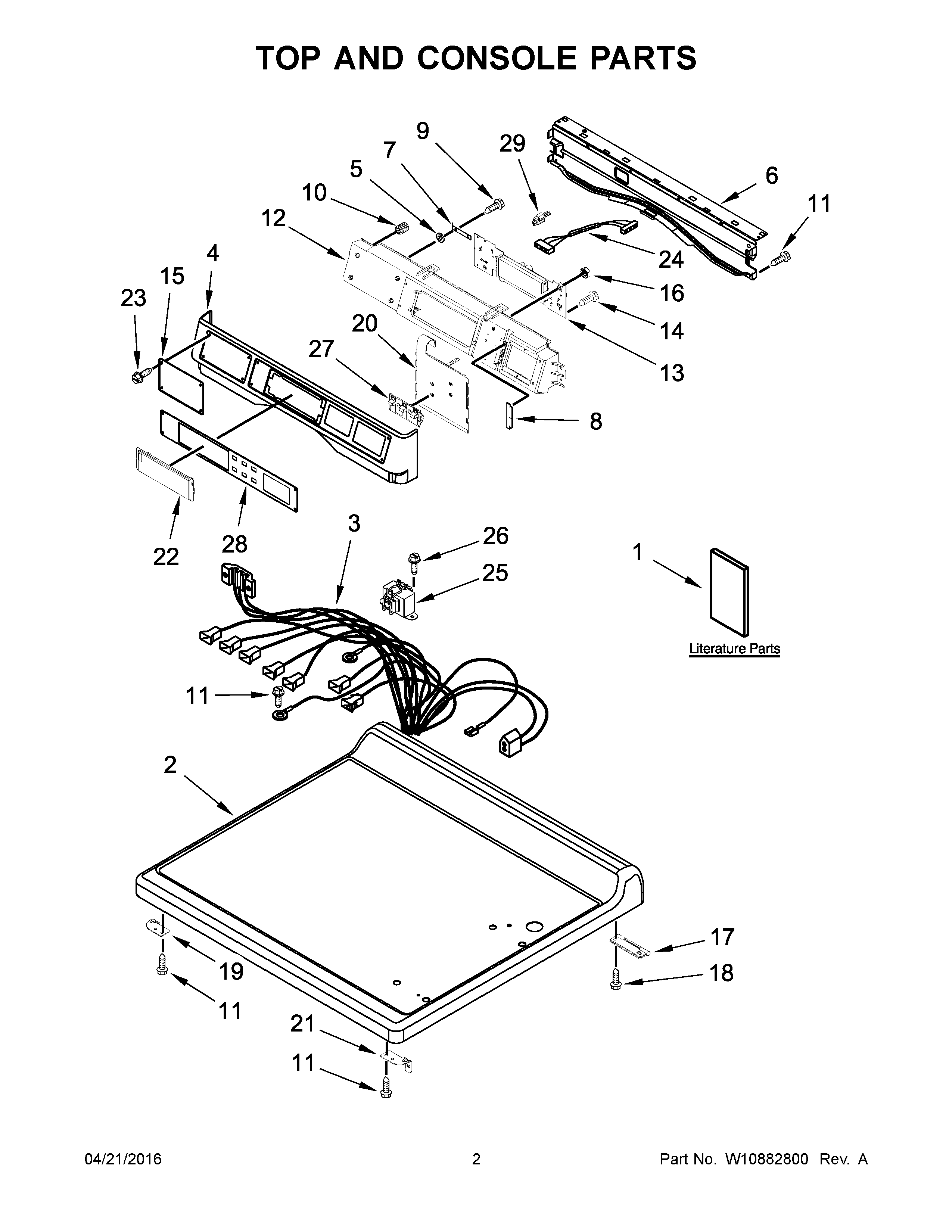

CGD9060AW1 02 – TOP AND CONSOLE PARTS

CGD9060AW1 02 – TOP AND CONSOLE PARTS

Written by

in

CGD9060AW1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTION
1ATECH SHEET
2W11622909 Whirlpool Top
3W10846438 Whirlpool Wire Harness
4W10779120 Whirlpool Console
5W10189075 Whirlpool Washer
6WP8565237 Whirlpool Bracket Assembly
7GROUND-JUMPER, TAB
8W10187276 Whirlpool Gasket
9WP33001882 Whirlpool Screw
10WPW10189313 Whirlpool Insert
11WP488729 Whirlpool Refrigerator Door Screw
12W10137427 Whirlpool Console
13WPW10726617 Whirlpool Electronic Control Board + Core
14489136 Whirlpool Refrigerator Screw
15FASCIA DISPENSER
16WPW10139046 Whirlpool Nut
17WP8565018 Whirlpool Hinge
18WP488627 Whirlpool Refrigerator Screw
19W10137445 Whirlpool Bracket Assembly
20WPW10135255 Whirlpool Switch
21W10137444 Whirlpool Bracket
22WPW10267645 Whirlpool Cover Assembly
23WPW10137457 Whirlpool Screw
24W10166307 Whirlpool Wire Harness
25WPW10131839 Whirlpool Transformer Assembly
26WP90767 Whirlpool Screw
27W10803340 Whirlpool Dryer Push Button Dial Knob
28W10334890 Whirlpool Dryer Overlay
29W11129439 Whirlpool Wire Harness
