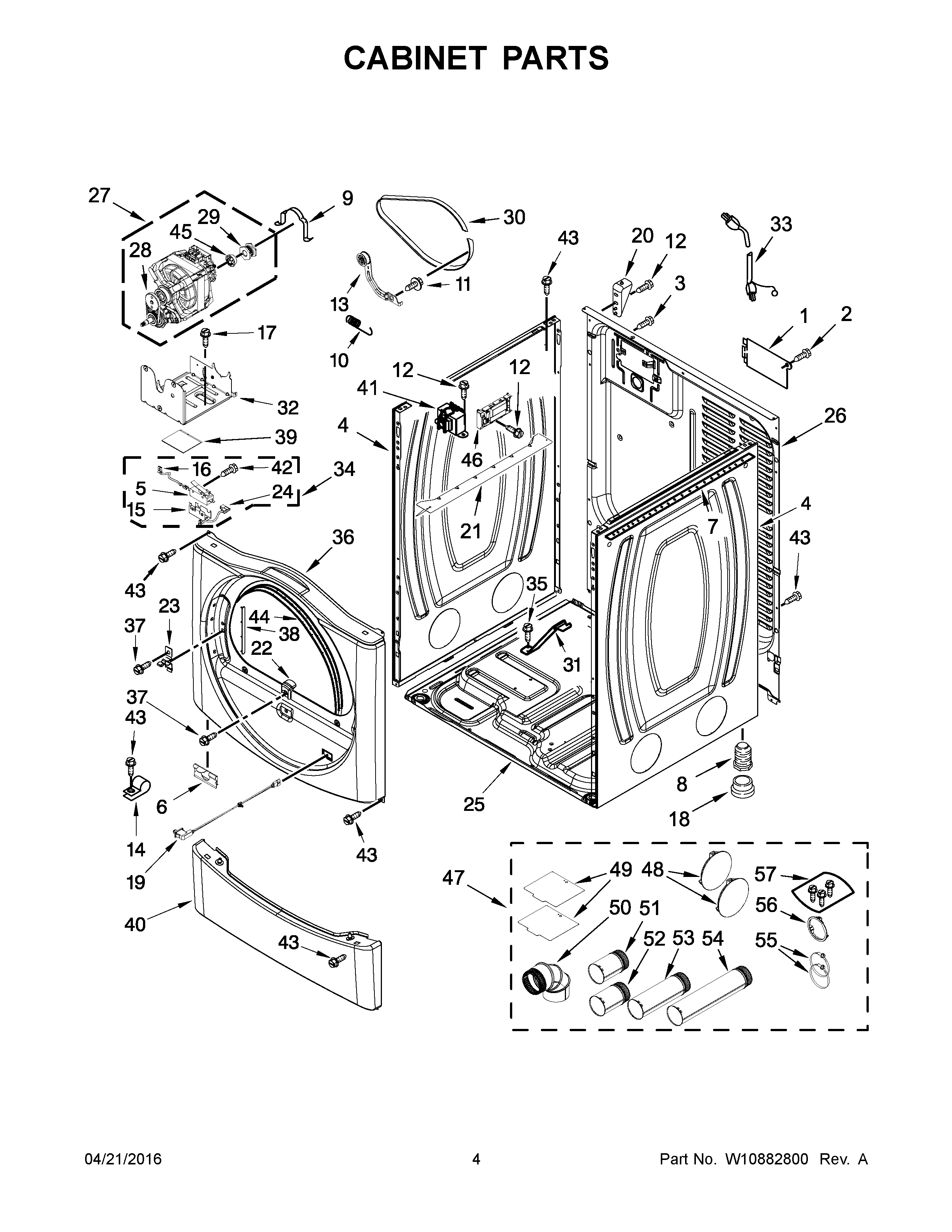

CGD9060AW1 03 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1W10819767 Whirlpool Cover
2WP90767 Whirlpool Screw
3W10850756 Whirlpool Screw
4W10542714 Whirlpool Panel
5WP8564010 Whirlpool Plug Switch
6W11295573 Whirlpool Clip
7Seal, Foam
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
13WPW10344192 Whirlpool Idler Pulley
143978776 Whirlpool Bracket
158564011 Whirlpool Bracket
16W10167613 Whirlpool Wire
17SCREW
18WP3391943 Whirlpool Foot Boot
19WPW10350910 Whirlpool Door Switch
20W10137398 Whirlpool Block
21WP8563727 Whirlpool Bracket
228580015 Whirlpool Ramp
23WP8565122 Whirlpool Strike Assembly
24WIRE, MOTOR TO BELT SWITCH
25W11215531 Whirlpool Base
26Panel, Rear
27W11234001 Whirlpool Drive Motor
28WP3405160 Whirlpool Belt Assembly
29WP8066184 Whirlpool Dryer Motor Pulley
30WPW10131172 Whirlpool Belt
31W10181903 Whirlpool Bracket
32W11676491 Whirlpool Base
33W11628810 Whirlpool Power Cord
34W11247665 Whirlpool Switch
35WP693995 Whirlpool Screw
36W10874032 Whirlpool Panel
37WP308685 Whirlpool Microwave Screw
388565043 Whirlpool Plug
39W11113654 Whirlpool Pad
40WP8540621 Whirlpool Toe Panel
41WPW10131839 Whirlpool Transformer Assembly
42WP98129 Whirlpool Screw
43WP488729 Whirlpool Refrigerator Door Screw
44WP3387242 Whirlpool Seal
45WP3393657 Whirlpool Belt Retainer
46CONTROL BOARD
47W10470674 Whirlpool Dryer Side Vent Exhaust Kit
48WPW10404617 Whirlpool Plug Assembly
49WPW10354249 Whirlpool Cover
50WPW10416072 Whirlpool Elbow
51WP8563748 Whirlpool Exhaust Pipe
52WPW10331278 Whirlpool Exhaust Pipe
53WP8563747 Whirlpool Exhaust Pipe
54WP8563749 Whirlpool Exhaust Pipe
55WP696392 Whirlpool Hose Clamp
56WPW10344699 Whirlpool Collar
