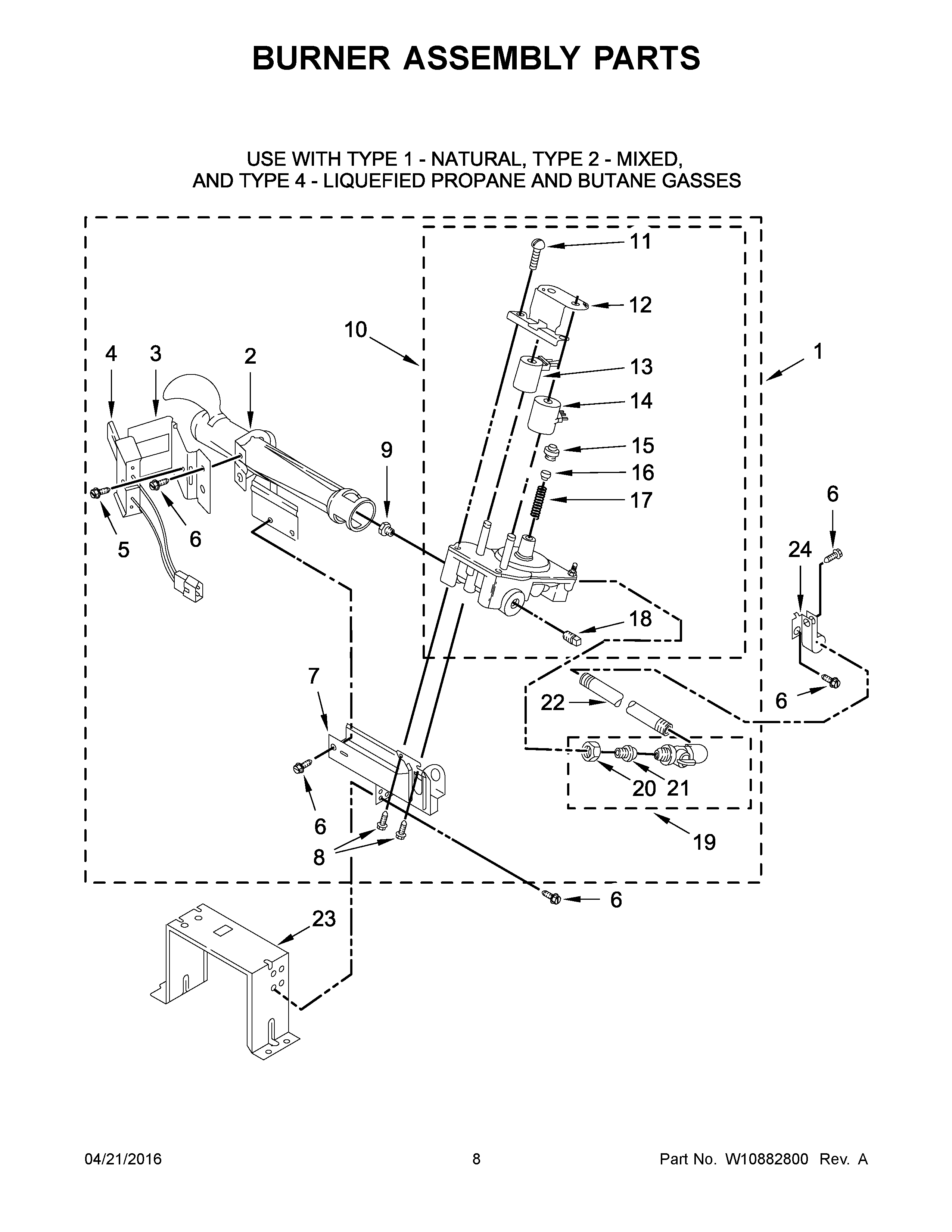

CGD9060AW1 05 – BURNER ASSEMBLY PARTS
Written by
in
CGD9060AW1 05 – BURNER ASSEMBLY PARTS
Products
Position
Product
NI
CABINET (NOT A SERVICEABLE PART)
NI
W10402145 Whirlpool LP Gas Connection
1
Burner Assembly 60 Hz. (Type 1, 2 & 3) (White Rodgers)
2
WP693140 Whirlpool Burner
3
WP694298 Whirlpool Bracket
4
279311 Whirlpool Dryer Flat Igniter with Bracket
5
WPW10366705 Whirlpool Screw
6
SCREW
7
Base, Burner
8
WP693995 Whirlpool Screw
9
Orifice, Burner (Type 1)
9A
WP234868 Whirlpool Gas Orifice
10
WPW10141728 Whirlpool Gas Valve
11
694421 Whirlpool Screw Assembly
12
694538 Whirlpool Bracket
14
279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15
WP694424 Whirlpool Limiter
16
WP694423 Whirlpool Regulator
17
WP694422 Whirlpool Spring
18
W10295523 Whirlpool Plug
19
697441 Whirlpool Valve
20
Nut, Compression
21
3393767 Whirlpool Pipe
22
W10110395 Whirlpool Pipe
23
Bracket, Support
24
3387561 Whirlpool Clamp
←
