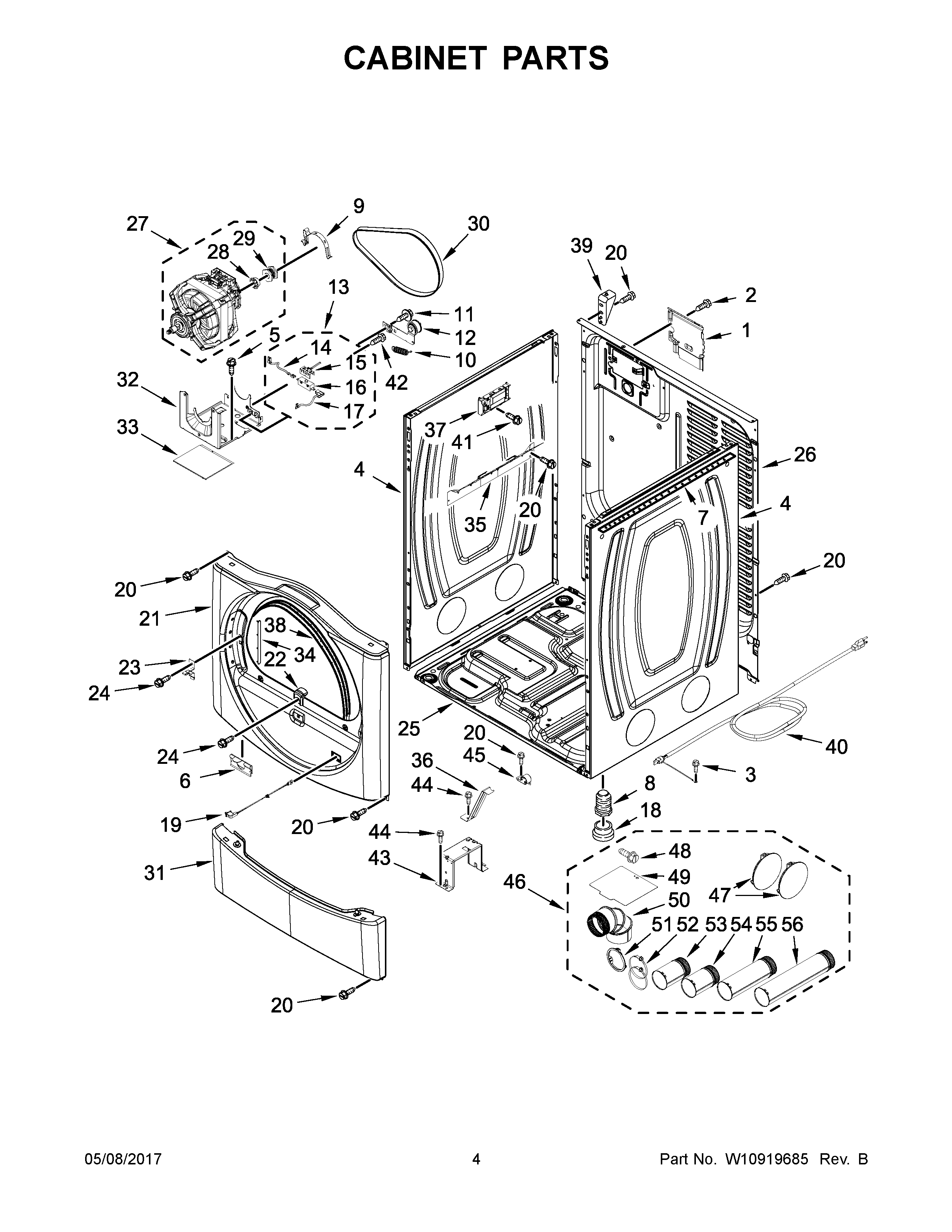

CGD9160GW0 03 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	W10819767 Whirlpool Cover
2	WP90767 Whirlpool Screw
3	W10850756 Whirlpool Screw
4	W10542714 Whirlpool Panel
5	SCREW
6	W11295573 Whirlpool Clip
7	Seal, Foam
9	WP660658 Whirlpool Clamp
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WPW10344193 Whirlpool Idler Pulley
14	3398948 Whirlpool Wire
15	WP8066120 Whirlpool Lever Assembly
16	279782 Whirlpool Lid Switch
17	W10167612 Whirlpool Wire
18	WP3391943 Whirlpool Foot Boot
19	WPW10350910 Whirlpool Door Switch
20	WP488729 Whirlpool Refrigerator Door Screw
21	W10874032 Whirlpool Panel
22	8580015 Whirlpool Ramp
23	WP8565122 Whirlpool Strike Assembly
24	WP308685 Whirlpool Microwave Screw
25	W11215531 Whirlpool Base
26	PANEL, REAR
27	W10841144 Whirlpool Drive Motor
28	WP3393657 Whirlpool Belt Retainer
29	WP8066184 Whirlpool Dryer Motor Pulley
30	WPW10131172 Whirlpool Belt
31	WP8540621 Whirlpool Toe Panel
32	WP3387118 Whirlpool Base Assembly
33	W11113654 Whirlpool Pad
34	8565043 Whirlpool Plug
35	WP8563727 Whirlpool Bracket
36	W10181903 Whirlpool Bracket
37	CONTROL BOARD
38	WP3387242 Whirlpool Seal
39	W10137398 Whirlpool Block
40	W10869140 Whirlpool Power Cord
42	WP98129 Whirlpool Screw
43	Bracket, Support
44	WP693995 Whirlpool Screw
45	3978776 Whirlpool Bracket
46	W10470674 Whirlpool Dryer Side Vent Exhaust Kit
47	WPW10404617 Whirlpool Plug Assembly
49	WPW10354249 Whirlpool Cover
50	WPW10416072 Whirlpool Elbow
51	WPW10344699 Whirlpool Collar
52	WP696392 Whirlpool Hose Clamp
53	WPW10331278 Whirlpool Exhaust Pipe
54	WP8563748 Whirlpool Exhaust Pipe
55	WP8563747 Whirlpool Exhaust Pipe
56	WP8563749 Whirlpool Exhaust Pipe
