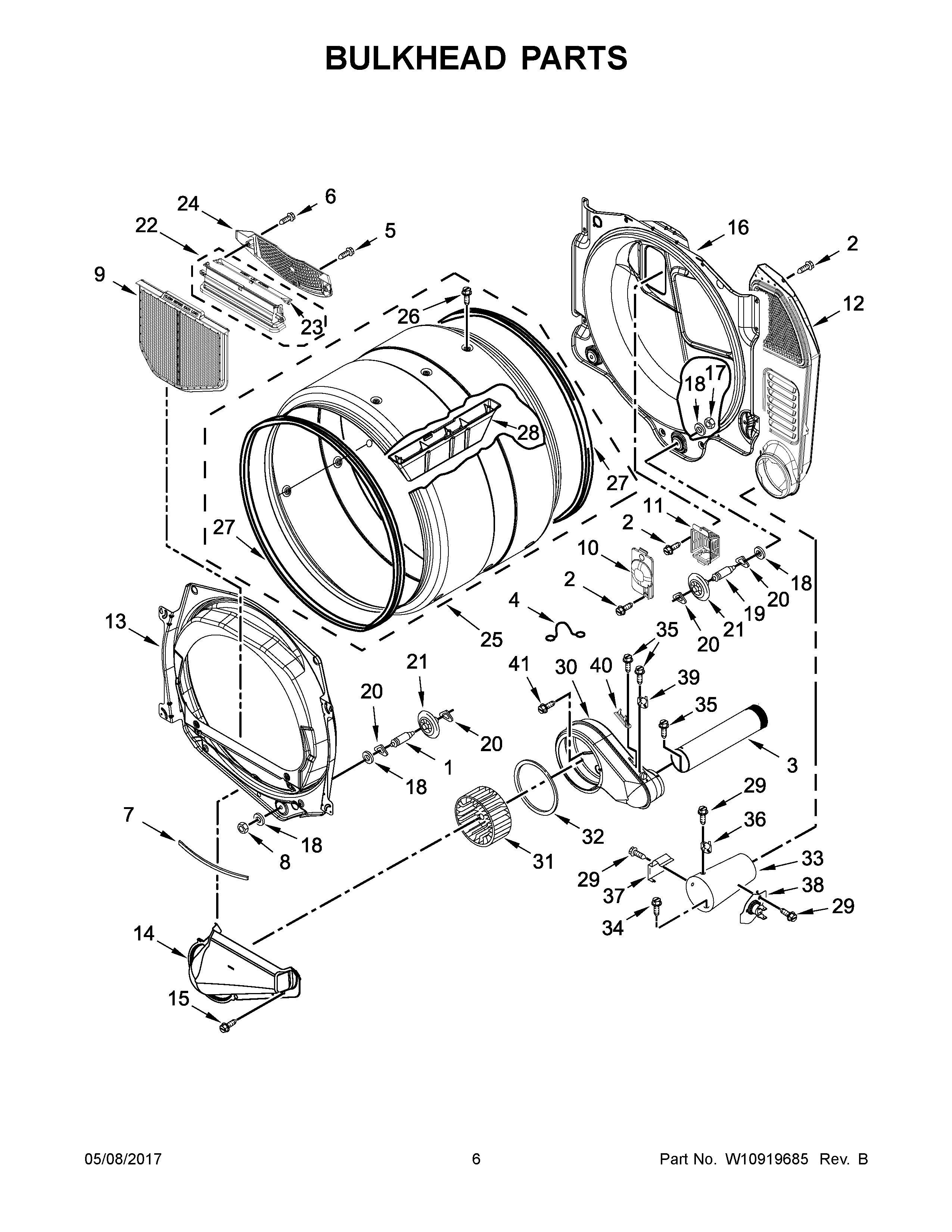

CGD9160GW0 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	WP488729 Whirlpool Refrigerator Door Screw
3	WP8563728 Whirlpool Exhaust Pipe
4	WP3401707 Whirlpool Wire Assembly
6	WP3387230 Whirlpool Screw
7	WP697813 Whirlpool Seal
8	WPW10080210 Whirlpool Nut
9	W10120998 Whirlpool Dryer Lint Screen Filter
10	W11226088 Whirlpool Lens Assembly
11	8578825 Whirlpool Bracket
12	W11168650 Whirlpool Air Duct
13	8565061 Whirlpool Bulkhead Assembly
14	WPW10128606 Whirlpool Lint Duct
15	W11693756 Whirlpool Screw Assembly
16	WPW10080170 Whirlpool Bulkhead Assembly
17	WPW10080190 Whirlpool Nut
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	W11219327 Whirlpool Grille Outlet
23	W11222846 Whirlpool Door
24	W11086603 Whirlpool Dryer Link Screen Air Grille
25	W10865330 Whirlpool Drum
26	W10853898 Whirlpool Screw
27	280114 Whirlpool Dryer Drum Seal
28	W10852390 Whirlpool Drum Baffle
30	W10888146 Whirlpool Housing
31	WHEEL
32	WP697770 Whirlpool Blower Cover Plate Seal
33	WP8573824 Whirlpool Funnel
34	WP693995 Whirlpool Screw
35	WP90767 Whirlpool Screw
36	THRMST-FIX
37	WP338906 Whirlpool Dryer Gas Sensor
38	WP8573713 Whirlpool Thermal Fuse
39	WP8577274 Whirlpool Dryer Thermistor
40	WP3392519 Whirlpool Dryer Thermal Fuse
41	WP489463 Whirlpool Refrigerator Screw
