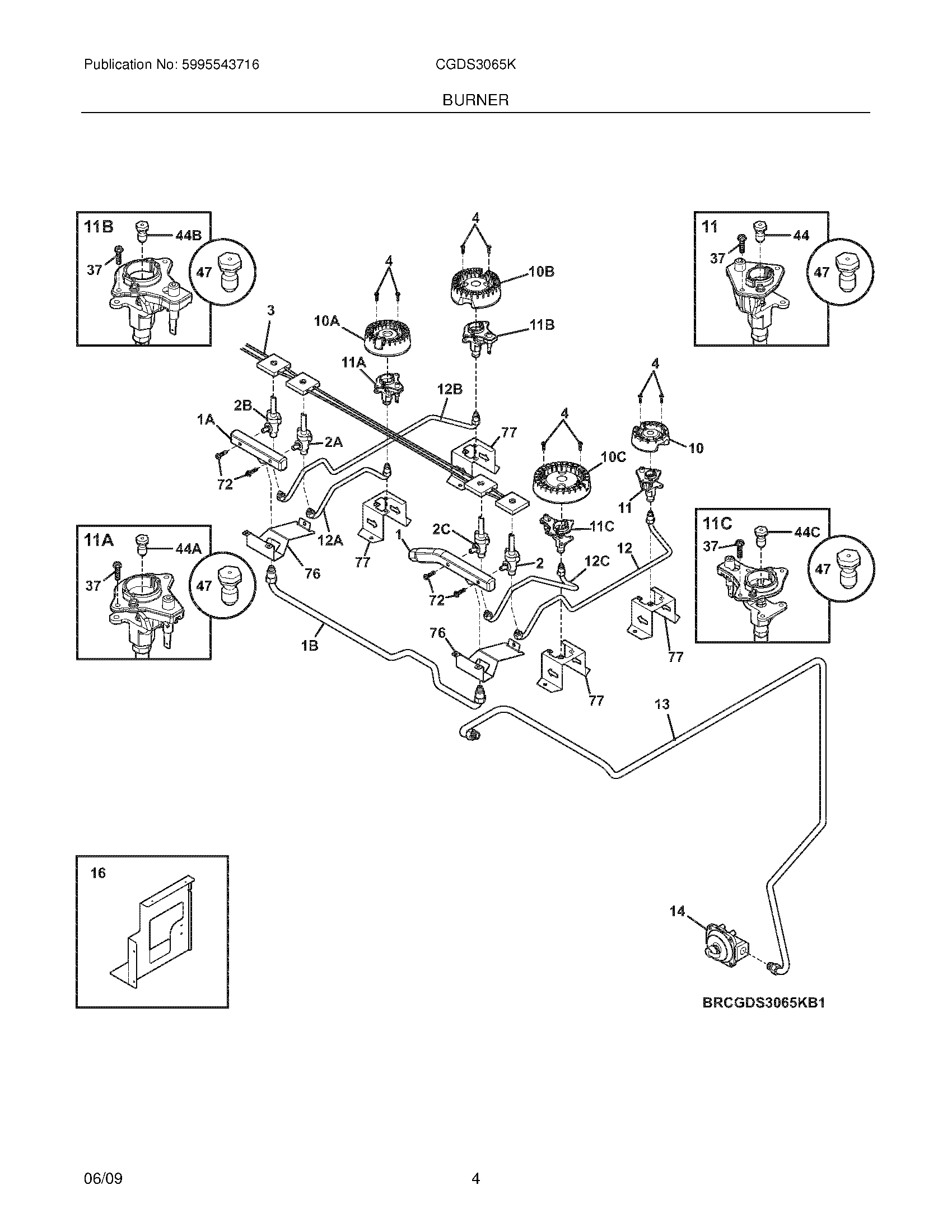

CGDS3065KB1 05 – BURNER

Products

Position	Product
NI	5303323277 Frigidaire Oven Screw
NI	318199776 Frigidaire Electrical Harness
NI	5303211311 Frigidaire Refrigerator Screw
NI	5304480396 Frigidaire Screw
1B	WCI 318913500
1	WCI 318913400
1A	WCI 318907200
2	WCI 318915700
2B	WCI 318915703
2A	WCI 318915701
2C	WCI 318915704
3	WCI 318232659
4	316240600 Frigidaire Igniter Mounting Screw
10C	316438400 Frigidaire Range Sealed Burner, 16/17K
10	316438200 Frigidaire Range Sealed Burner, 5K
10B	316438600 Frigidaire Range Sealed Burner, 14K
10A	316558300 Frigidaire Oven 9.5L Sealed Burner
11A	316540700 Frigidaire Igniter/Orifice Assembly
11B	316543206 Frigidaire Igniter Orifice Assembly
11C	316543203 Frigidaire Igniter Orifice Assembly
11	316540800 Frigidaire Igniter/Orifice Assembly
12B	318916600 Frigidaire Oven Tube
12A	318916500 Frigidaire Oven Tube
12	WCI 318916800
12C	318916700 Frigidaire Oven Tube
13	WCI 318913600
14	318122721 Frigidaire Oven Regulator
16	WCI 318590002
44A	316527500 Frigidaire Oven Burner Orifice
44	316527504 Frigidaire Oven Orifice
44C	316527509 Frigidaire Oven 18.2K Burner Orifice
44B	316527513 Frigidaire Oven Orifice
47	318565405 Frigidaire Conversion Kit
72	316215600 Frigidaire Oven Screw
76	WCI 318906702
77	WCI 318920300
