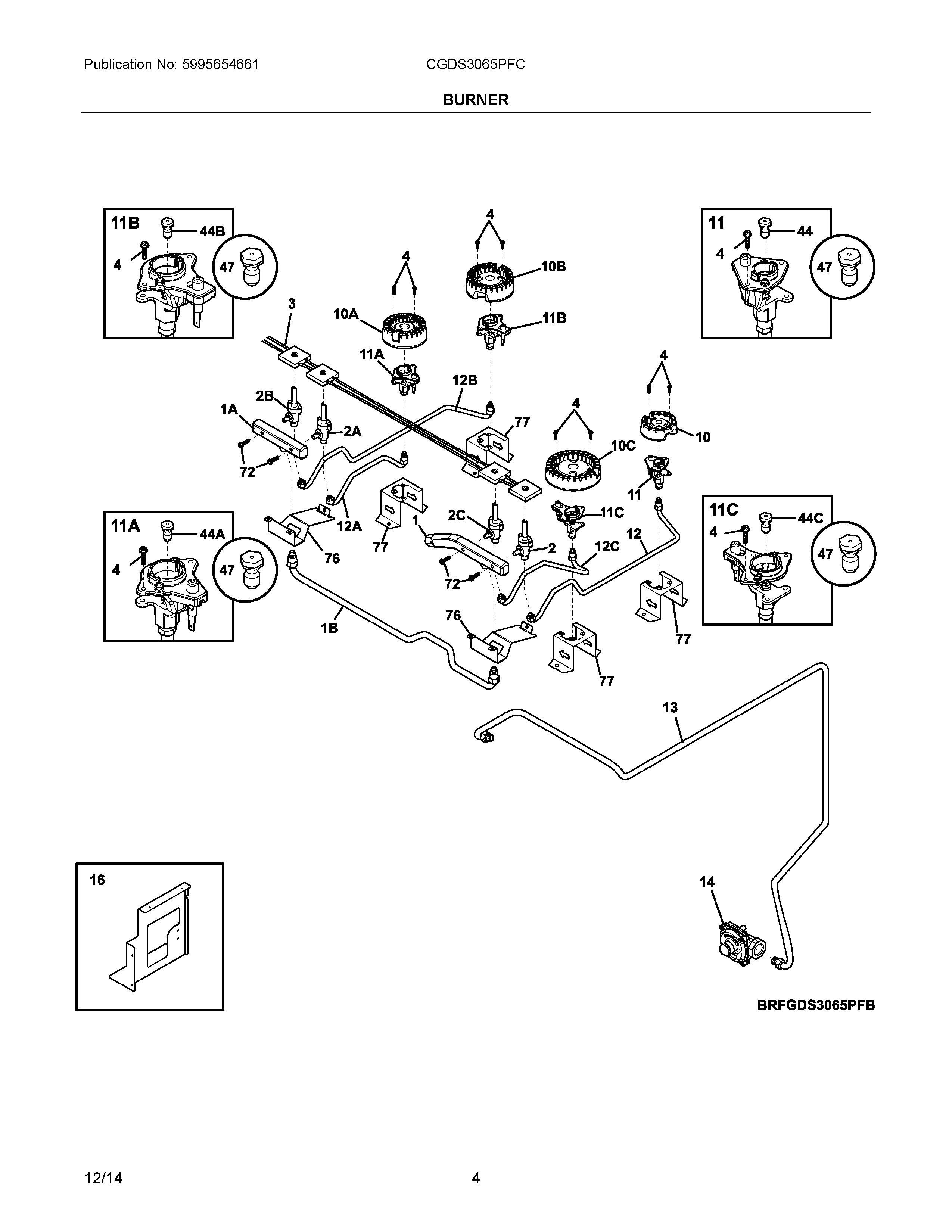

CGDS3065PFC 03 – BURNER

CGDS3065PFC 03 – BURNER

Written by

in

CGDS3065PFC 03 – BURNER

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI318199776 Frigidaire Electrical Harness
1BWCI 318913500
1AWCI 318907200
1WCI 318913400
2AWCI 318915701
2BWCI 318915703
2CWCI 318915704
2WCI 318915700
3WCI 318232659
4316240600 Frigidaire Igniter Mounting Screw
10316438200 Frigidaire Range Sealed Burner, 5K
10B316438600 Frigidaire Range Sealed Burner, 14K
10C316438400 Frigidaire Range Sealed Burner, 16/17K
10A316558300 Frigidaire Oven 9.5L Sealed Burner
11A316540700 Frigidaire Igniter/Orifice Assembly
11316540800 Frigidaire Igniter/Orifice Assembly
11C316543203 Frigidaire Igniter Orifice Assembly
11B316543206 Frigidaire Igniter Orifice Assembly
12WCI 318916800
12A318916500 Frigidaire Oven Tube
12B318916600 Frigidaire Oven Tube
12C318916700 Frigidaire Oven Tube
13WCI 318913600
14318122721 Frigidaire Oven Regulator
16WCI 318590003
44A316527500 Frigidaire Oven Burner Orifice
44316527504 Frigidaire Oven Orifice
44C316527509 Frigidaire Oven 18.2K Burner Orifice
44B316527513 Frigidaire Oven Orifice
47318565405 Frigidaire Conversion Kit
72316215600 Frigidaire Oven Screw
76WCI 318906703
77WCI 318920300
