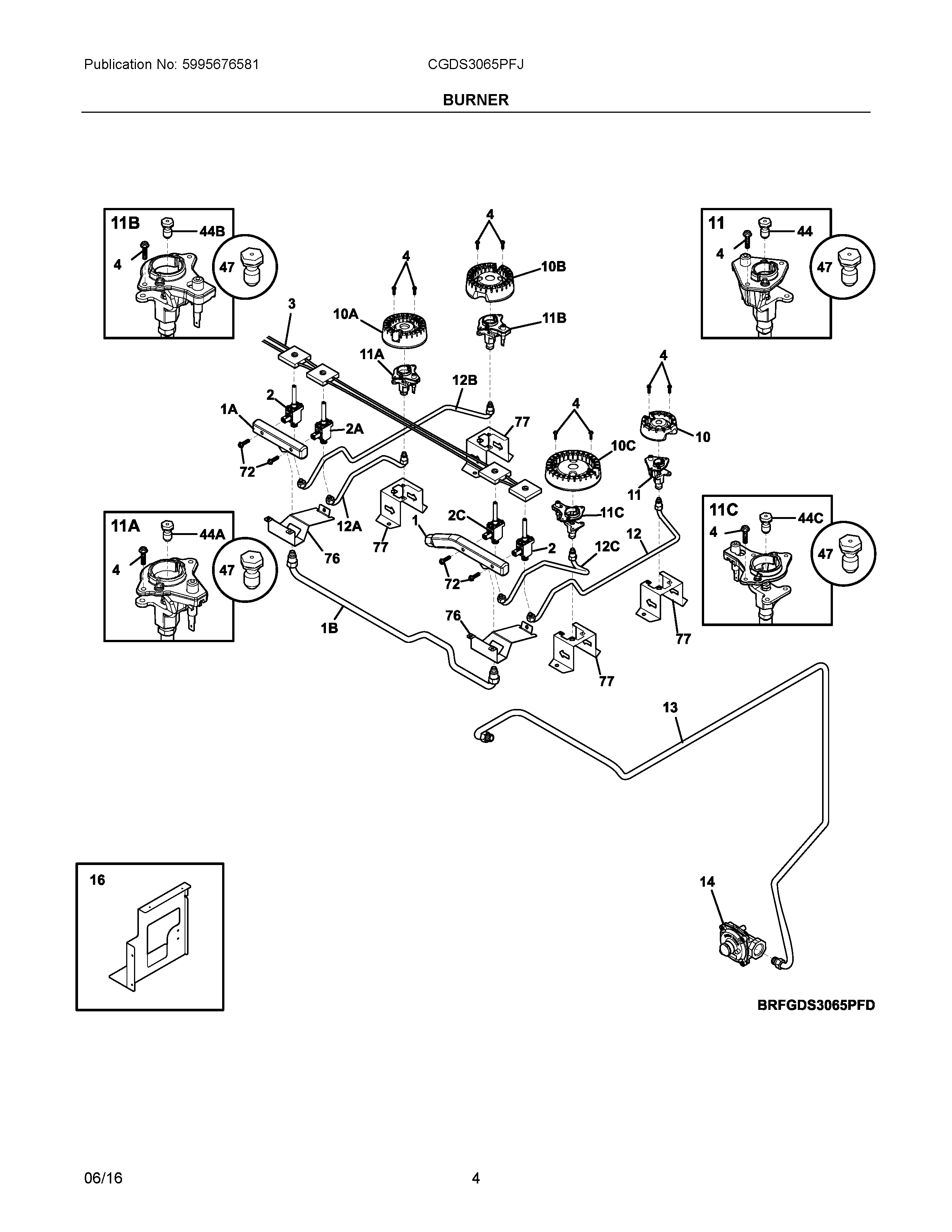

CGDS3065PFJ 03 – BURNER

CGDS3065PFJ 03 – BURNER

Written by

in

CGDS3065PFJ 03 – BURNER

Products

PositionProduct
NI318199776 Frigidaire Electrical Harness
NI316021105 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
1BWCI 318913500
1WCI 318913400
1AWCI 318907200
2C316536006 Frigidaire Oven Valve
2VALVE, TOP BURNER, YELLOW STEM, HC
2A5303935306 Frigidaire Oven Valve
3WCI 5304491103
4316240600 Frigidaire Igniter Mounting Screw
10C316438400 Frigidaire Range Sealed Burner, 16/17K
10316438200 Frigidaire Range Sealed Burner, 5K
10B316438600 Frigidaire Range Sealed Burner, 14K
10A316558300 Frigidaire Oven 9.5L Sealed Burner
11C316543203 Frigidaire Igniter Orifice Assembly
11A316540700 Frigidaire Igniter/Orifice Assembly
11B316543206 Frigidaire Igniter Orifice Assembly
11316540800 Frigidaire Igniter/Orifice Assembly
12C318916700 Frigidaire Oven Tube
12A318916500 Frigidaire Oven Tube
12B318916600 Frigidaire Oven Tube
12WCI 318916800
13WCI 318913600
14318122721 Frigidaire Oven Regulator
16WCI 318590003
44316527504 Frigidaire Oven Orifice
44B316527513 Frigidaire Oven Orifice
44C316527509 Frigidaire Oven 18.2K Burner Orifice
44A316527500 Frigidaire Oven Burner Orifice
47318565405 Frigidaire Conversion Kit
72316215600 Frigidaire Oven Screw
76WCI 318906703
77WCI 318920300
