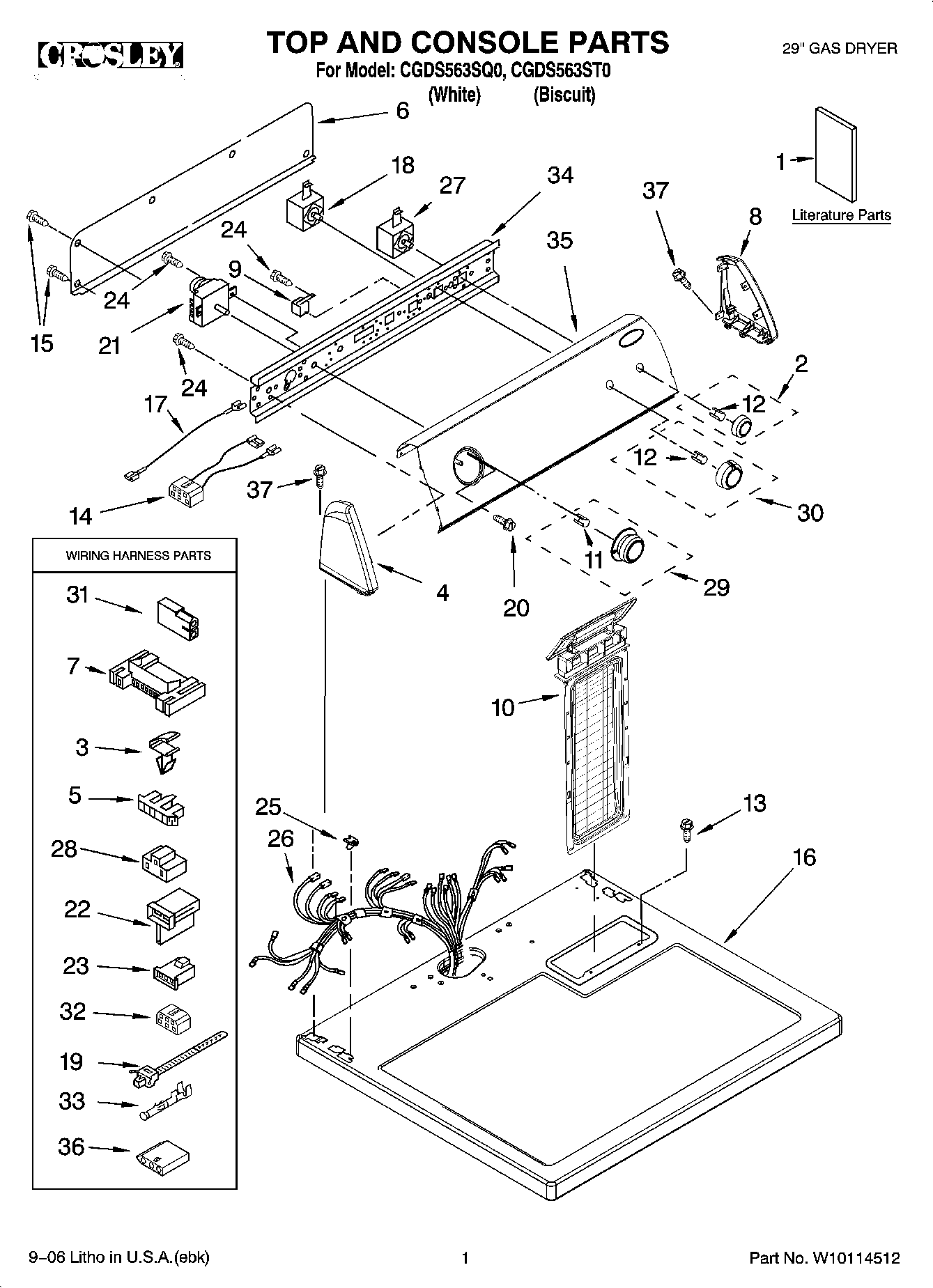

CGDS563SQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Installation Instructions
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Wiring Diagram
1	Sheet, Cycle Feature
1	Use & Care Guide
1	WPL 677818
2	Knob, Push-To-Start
3	WP3394427 Whirlpool Clip
4	Cap, End (L.H.) (BIscuit)
5	Connector, Timer
6	W10103406 Whirlpool Rear Panel
7	3395683 Whirlpool Connector
8	W10820038 Whirlpool Endcap
8	WPL 8271362
9	WP694419 Whirlpool Buzzer Adjuster
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
10	Screen, Lint (Biscuit)
11	WP688805 Whirlpool Spring Clip
12	WP8536939 Whirlpool Spring Clip
13	W11693756 Whirlpool Screw Assembly
14	8283286 Whirlpool Wire Harness
15	WP693995 Whirlpool Screw
16	Top
16	Top
17	Wire, Jumper (White)
17	Wire, Jumper (Tan)
18	3399638 Whirlpool Switch
19	Tie, Cable
20	3400859 Whirlpool Screw
21	WP8299766 Whirlpool Timer Assembly
22	WP3403499 Whirlpool Connector
23	WP3403498 Whirlpool Connector
24	WP90767 Whirlpool Screw
25	WP357213 Whirlpool Hinge Stopper
26	8299878 Whirlpool Wire Harness
27	WP3398094 Whirlpool Push To Start Switch
28	3401144 Whirlpool Connector
29	WP8557455 Whirlpool Knob Timer
30	KNOB
31	Receptacle, Latching (2-Way) (Uses Terminal 94614)
32	Block, Disconnect
33	WP94614 Whirlpool Terminal
34	Bracket, Control
35	Panel, Control (Biscuit)
35	Panel, Control (White)
36	3936144 Whirlpool Connector
37	WP388326 Whirlpool Screw
