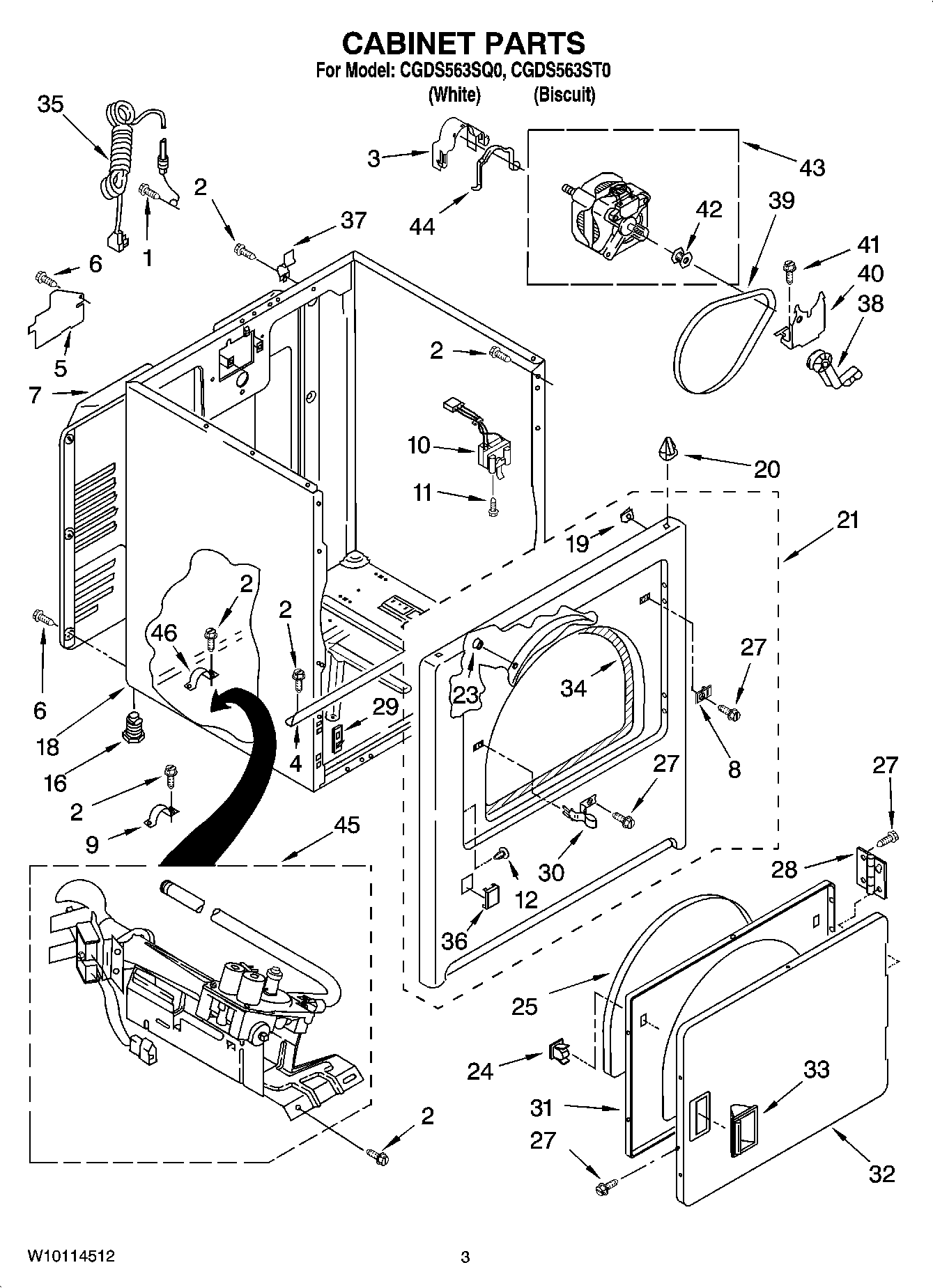

CGDS563ST0 02 – CABINET PARTS

Products

Position	Product
1	W10850756 Whirlpool Screw
2	SCREW
3	WP3404162 Whirlpool Clamp
4	Bracket, Cabinet
5	W11539855 Whirlpool Refrigerator Pump
6	WP693995 Whirlpool Screw
7	280043 Whirlpool Rear Panel
8	WP3403630 Whirlpool Plug
9	341029 Whirlpool Clamp
10	WP3406107 Whirlpool Dryer Door Switch
11	WP3395530 Whirlpool Screw
12	WP3404413 Whirlpool Plug
16	49621 Whirlpool Leveling Feet
18	Cabinet (Biscuit)
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Front Panel Assembly
21	Panel Front (Biscuit)
23	279220 Whirlpool Clip
24	WP3389441 Whirlpool Door Catch
25	SEAL-DOOR DRYER
27	WP488627 Whirlpool Refrigerator Screw
28	WPW10362431 Whirlpool Hinge Assembly
29	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
30	W11429589 Whirlpool Strike
31	WP3402341 Whirlpool Door
32	W10861227 Whirlpool Door Assembly
32	Door, Front (Biscuit)
33	WP3405184 Whirlpool White Door Handle
33	WP3405189 Whirlpool Handle
34	W11035878 Whirlpool Bearing and Seal
35	W11222083 Whirlpool Power Cord
36	Plug, Front Panel (Biscuit)
36	Plug, Front Panel (White)
37	WP8066217 Whirlpool Hinge
38	WP691366 Whirlpool Dryer Idler Pulley Assembly
39	341241 Whirlpool Dryer Drum Belt
40	WP348780 Whirlpool Base
41	3400500 Whirlpool Screw
42	WP8066184 Whirlpool Dryer Motor Pulley
43	279827 Whirlpool Dryer Drive Motor
44	WP660658 Whirlpool Clamp
45	W10823508 Whirlpool Gas Burner
