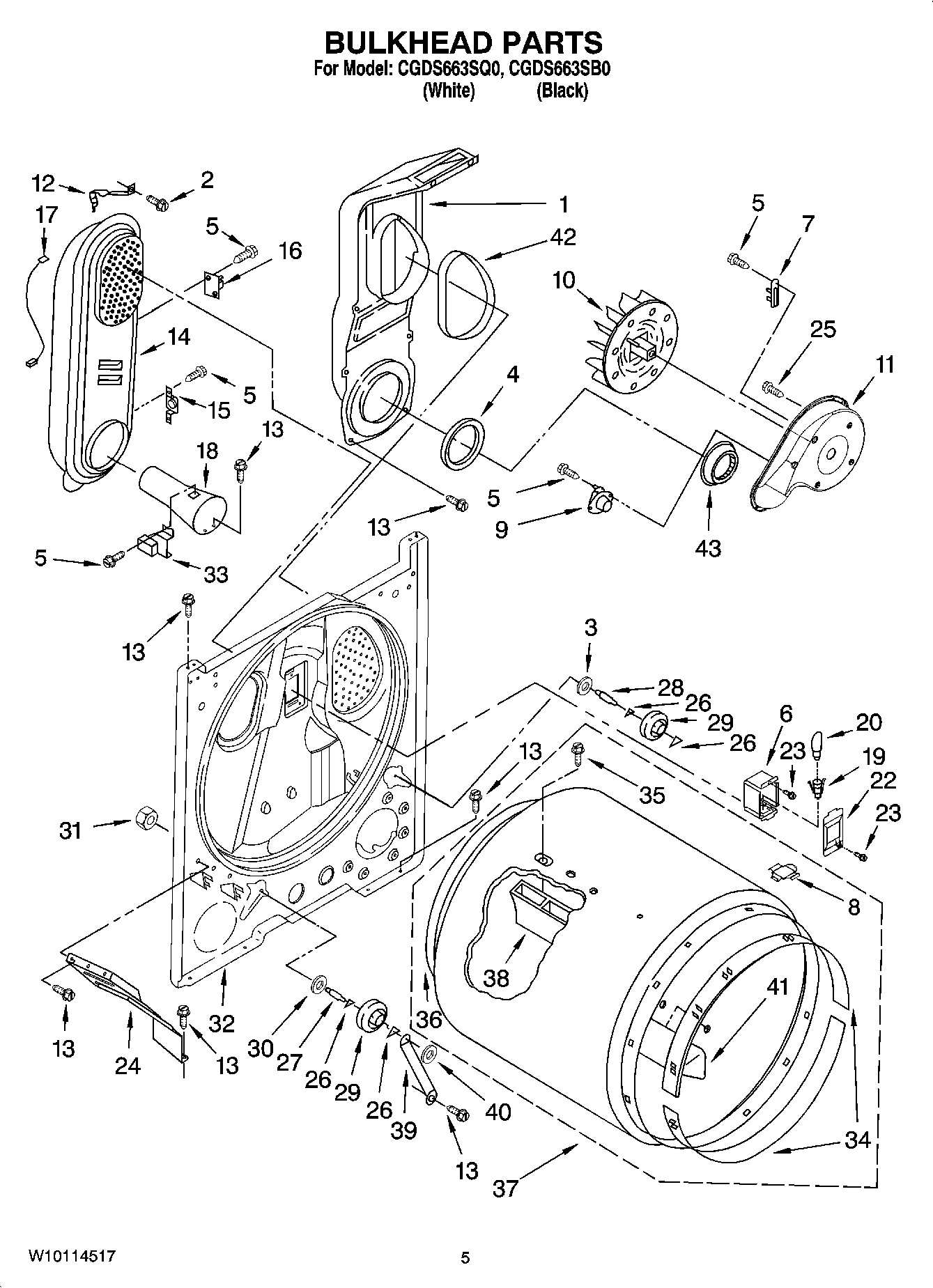

CGDS663SQ0 03 – BULKHEAD PARTS

CGDS663SQ0 03 – BULKHEAD PARTS

Products

PositionProduct
1W11117429 Whirlpool Chute Assembly
2WP489463 Whirlpool Refrigerator Screw
3WP3388703 Whirlpool Washer
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
63977373 Whirlpool Bracket
7WP3392519 Whirlpool Dryer Thermal Fuse
88066086 Whirlpool Plug
9WP3387134 Whirlpool Dryer Cycling Thermostat
10WP694089 Whirlpool Dryer Blower Wheel
11WP8577230 Whirlpool Housing
12279771 Whirlpool Clip
13SCREW
14279980 Whirlpool Box
16W11050897 Whirlpool Dryer High Limit Thermostat
17WP3401707 Whirlpool Wire Assembly
18WP8066049 Whirlpool Funnel Assembly
19W11700522 Whirlpool Socket
20WP22002263 Whirlpool Dryer 10W Light Bulb
22W11226088 Whirlpool Lens Assembly
24W11398682 Whirlpool Bracket
25WP488729 Whirlpool Refrigerator Door Screw
26WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
27SHAFT SUPPORT ROLLER DRYER
28SHAFT SUPPORT ROLLER DRYER
29349241T Whirlpool Dryer Drum Support Roller Kit
30WP348197 Whirlpool Washer Assembly
31WP3359452 Whirlpool Nut
32W10828431 Whirlpool Oven Bulkhead
33WP338906 Whirlpool Dryer Gas Sensor
34279441 Whirlpool Front Bearing Ring
35WPW10109200 Whirlpool Screw
36W10612022 Whirlpool Felt Seal
37W10899578 Whirlpool Dryer Drum Assembly
38BAFFLE-DRM
39W11684613 Whirlpool Bracket
40WP90296 Whirlpool Clip
41WP3403636 Whirlpool Drum Baffle
42SEAL
43W11233063 Whirlpool Shield Assembly
