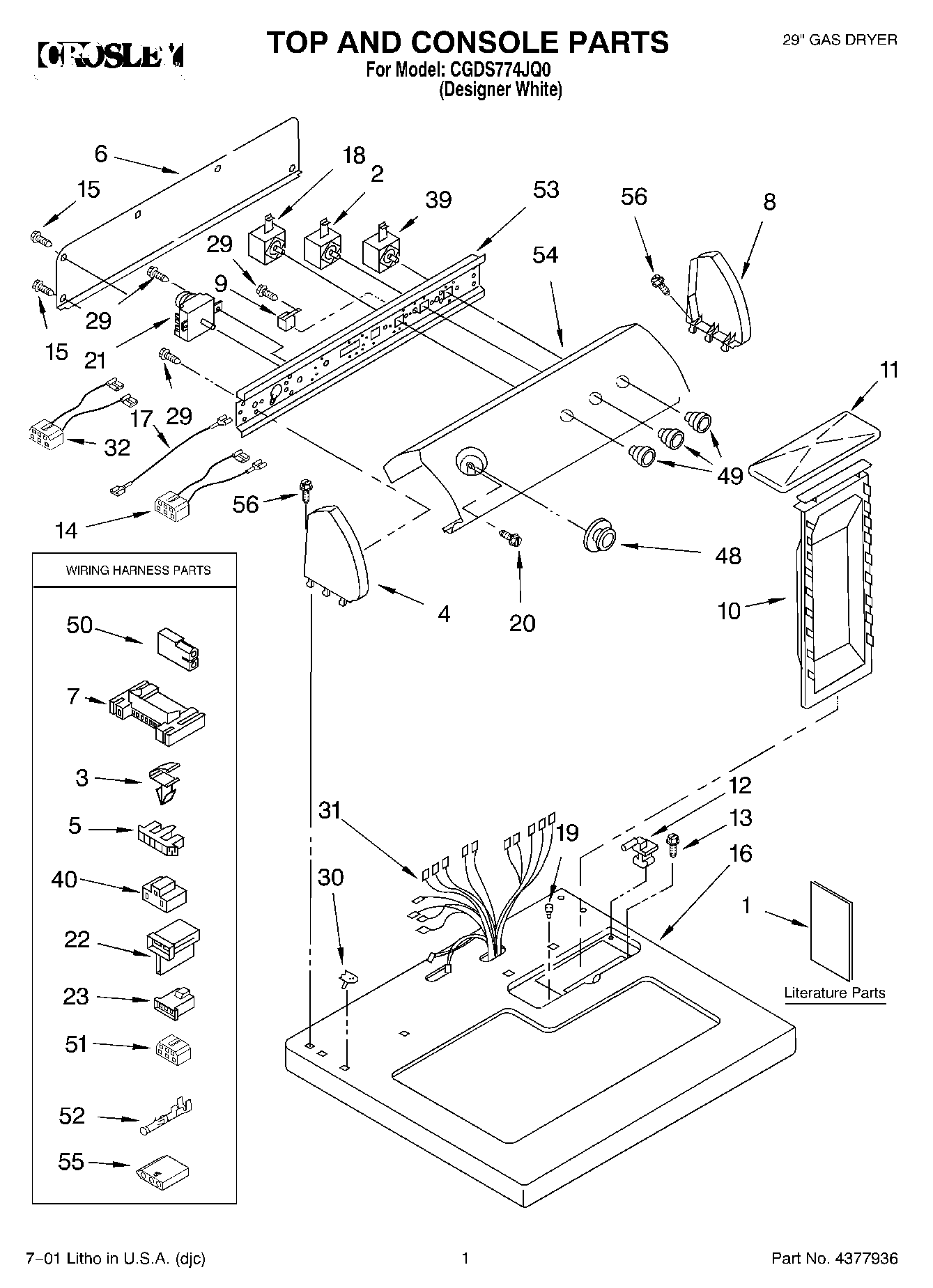

CGDS774JQ0 01 – TOP & CONSOLE, LIT/OPTIONAL

Products

Position	Product
	Dryer
1	Literature Parts (Use & Care Guide)
1	WPL LIT3406692
1	Literature Parts (Instructions, Installation)
2	WP3405156 Whirlpool Switch
3	WP3394427 Whirlpool Clip
5	Connector, Timer
6	W10103406 Whirlpool Rear Panel
7	3395683 Whirlpool Connector
8	279960 Whirlpool Endcap Assembly
9	WP694419 Whirlpool Buzzer Adjuster
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	3397695 Whirlpool Wire Harness
15	WP693995 Whirlpool Screw
16	Top
17	Wire, Jumper (Black)
18	WP3399639 Whirlpool Switch
19	Bumper, Lint Lid
20	3400859 Whirlpool Screw
21	WP8299766 Whirlpool Timer Assembly
22	WP3403499 Whirlpool Connector
23	WP3403498 Whirlpool Connector
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	8539893 Whirlpool Wire Harness
39	WP3398095 Whirlpool Dryer Start Relay
40	3401144 Whirlpool Connector
48	WP3957746 Whirlpool Knob Assembly
49	WP3957796 Whirlpool Knob
50	Receptacle, Latching (2-Way) (Uses Terminal 94614)
51	Block, Disconnect
52	WP94614 Whirlpool Terminal
53	Bracket, Control
54	Panel, Control
55	3936144 Whirlpool Connector
56	72017 Whirlpool Appliance Touch-Up Paint White
56	350938 Whirlpool Spray Gun
56	3404351 Whirlpool Dryer Rack
56	799344 Whirlpool Refrigerator Paint
56	350930 Whirlpool White Spray Paint
56	WP388326 Whirlpool Screw
