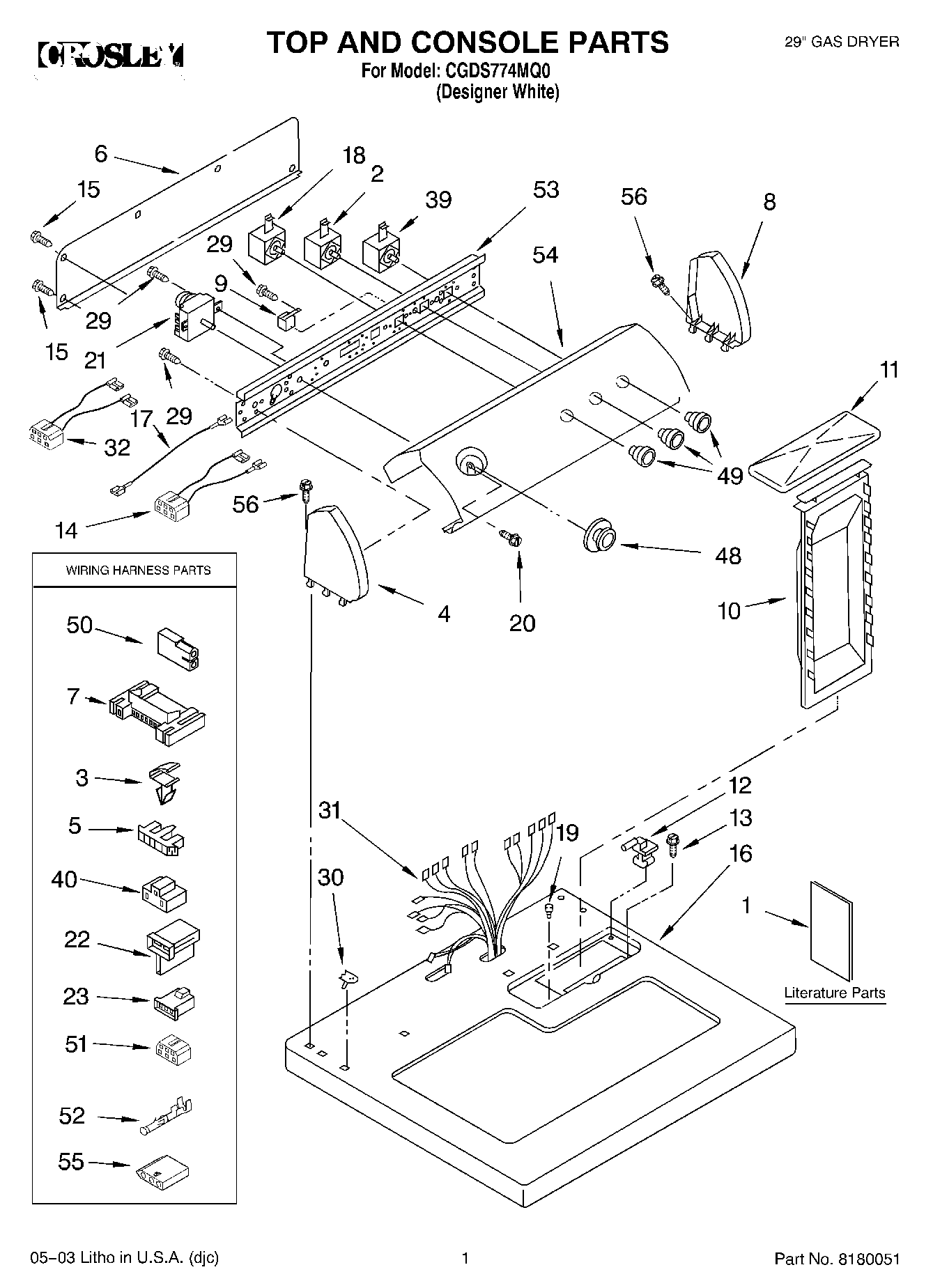

CGDS774MQ0 01 – TOP AND CONSOLE PARTS

CGDS774MQ0 01 – TOP AND CONSOLE PARTS

Written by

in

CGDS774MQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide)
1Literature Parts (Sheet, Cycle Feature)
1Literature Parts (Wiring Diagram)
1Dryer
2WP3405156 Whirlpool Switch
3WP3394427 Whirlpool Clip
5Connector, Timer
6W10103406 Whirlpool Rear Panel
73395683 Whirlpool Connector
8279960 Whirlpool Endcap Assembly
9WP694419 Whirlpool Buzzer Adjuster
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143397695 Whirlpool Wire Harness
15WP693995 Whirlpool Screw
16Top
17Wire, Jumper (Black)
18WP3399639 Whirlpool Switch
19Bumper, Lint Lid
203400859 Whirlpool Screw
21WP8299766 Whirlpool Timer Assembly
22WP3403499 Whirlpool Connector
23WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
318299879 Whirlpool Wire Harness
328539893 Whirlpool Wire Harness
39WP3398095 Whirlpool Dryer Start Relay
403401144 Whirlpool Connector
48WP3957746 Whirlpool Knob Assembly
49WP3957796 Whirlpool Knob
50Receptacle, Latching (2-Way) (Uses Terminal 94614)
51Block, Disconnect
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control
553936144 Whirlpool Connector
56350938 Whirlpool Spray Gun
56KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
5672017 Whirlpool Appliance Touch-Up Paint White
56799344 Whirlpool Refrigerator Paint
56350930 Whirlpool White Spray Paint
56WP388326 Whirlpool Screw
563406839 Whirlpool Drying Rack
56W11224254 Whirlpool Test Kit
564392065 Whirlpool Dryer Maintenance Kit
56WPL ARI144725A
