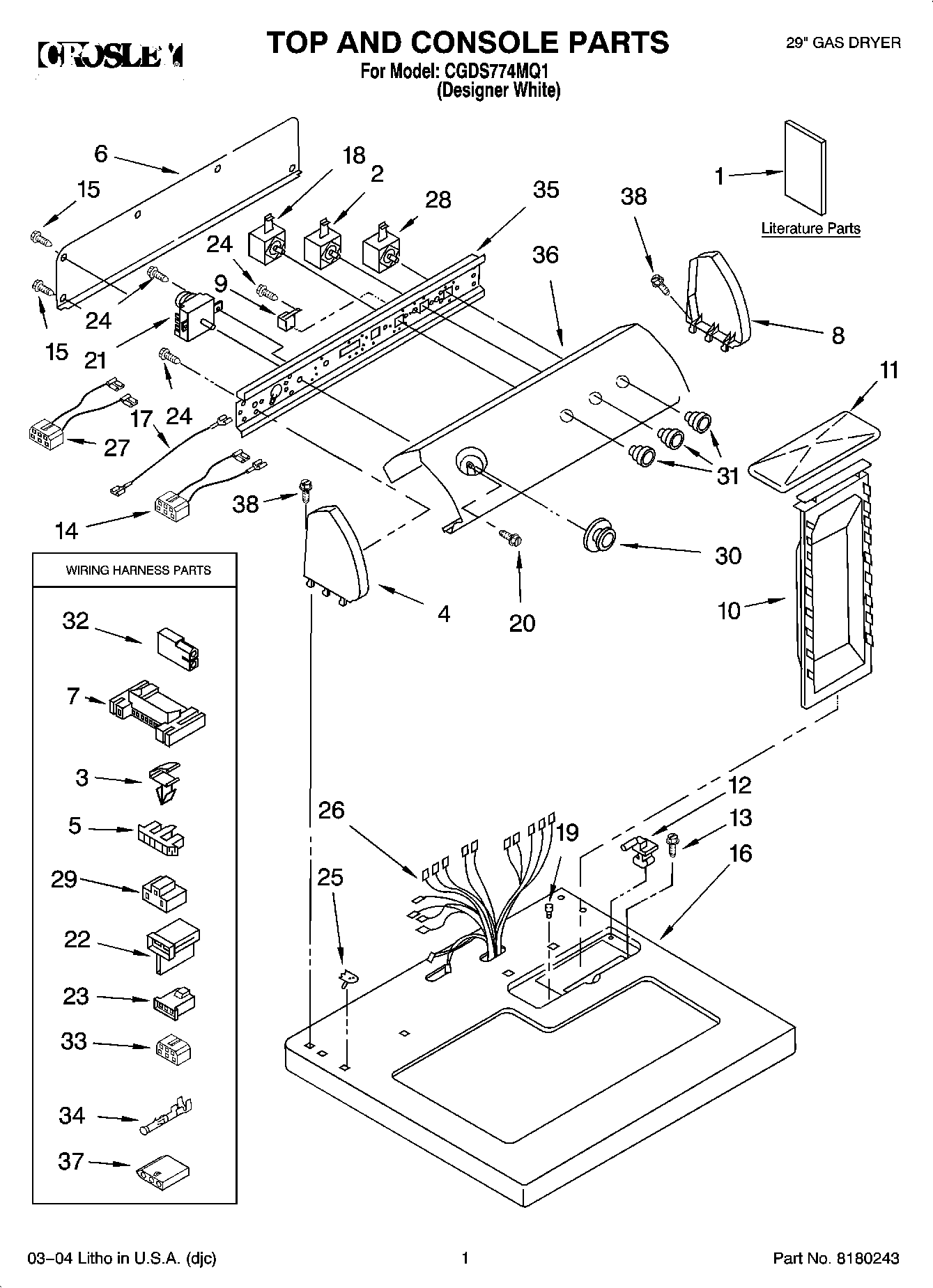

CGDS774MQ1 01 – TOP AND CONSOLE PARTS

CGDS774MQ1 01 – TOP AND CONSOLE PARTS

Written by

in

CGDS774MQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide)
1Literature Parts (Sheet, Cycle Feature)
1Literature Parts (Wiring Diagram)
1Dryer
2WP3405156 Whirlpool Switch
3WP3394427 Whirlpool Clip
5Connector, Timer
6W10103406 Whirlpool Rear Panel
73395683 Whirlpool Connector
8279960 Whirlpool Endcap Assembly
9WP694419 Whirlpool Buzzer Adjuster
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143397695 Whirlpool Wire Harness
15WP693995 Whirlpool Screw
16Top
17Wire, Jumper (Black)
18WP3399639 Whirlpool Switch
19Bumper, Lint Lid
203400859 Whirlpool Screw
21WP8299766 Whirlpool Timer Assembly
22WP3403499 Whirlpool Connector
23WP3403498 Whirlpool Connector
24WPW10139210 Whirlpool Screw
25WP357213 Whirlpool Hinge Stopper
268299879 Whirlpool Wire Harness
278539893 Whirlpool Wire Harness
28WP3398095 Whirlpool Dryer Start Relay
293401144 Whirlpool Connector
30WP3957746 Whirlpool Knob Assembly
31WP3957796 Whirlpool Knob
32Receptacle, Latching (2-Way) (Uses Terminal 94614)
33Block, Disconnect
34WP94614 Whirlpool Terminal
35Bracket, Control
36Panel, Control
373936144 Whirlpool Connector
38350938 Whirlpool Spray Gun
38KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
3872017 Whirlpool Appliance Touch-Up Paint White
38799344 Whirlpool Refrigerator Paint
38350930 Whirlpool White Spray Paint
38WP388326 Whirlpool Screw
383406839 Whirlpool Drying Rack
38W11224254 Whirlpool Test Kit
384392065 Whirlpool Dryer Maintenance Kit
38WPL ARI144728A
