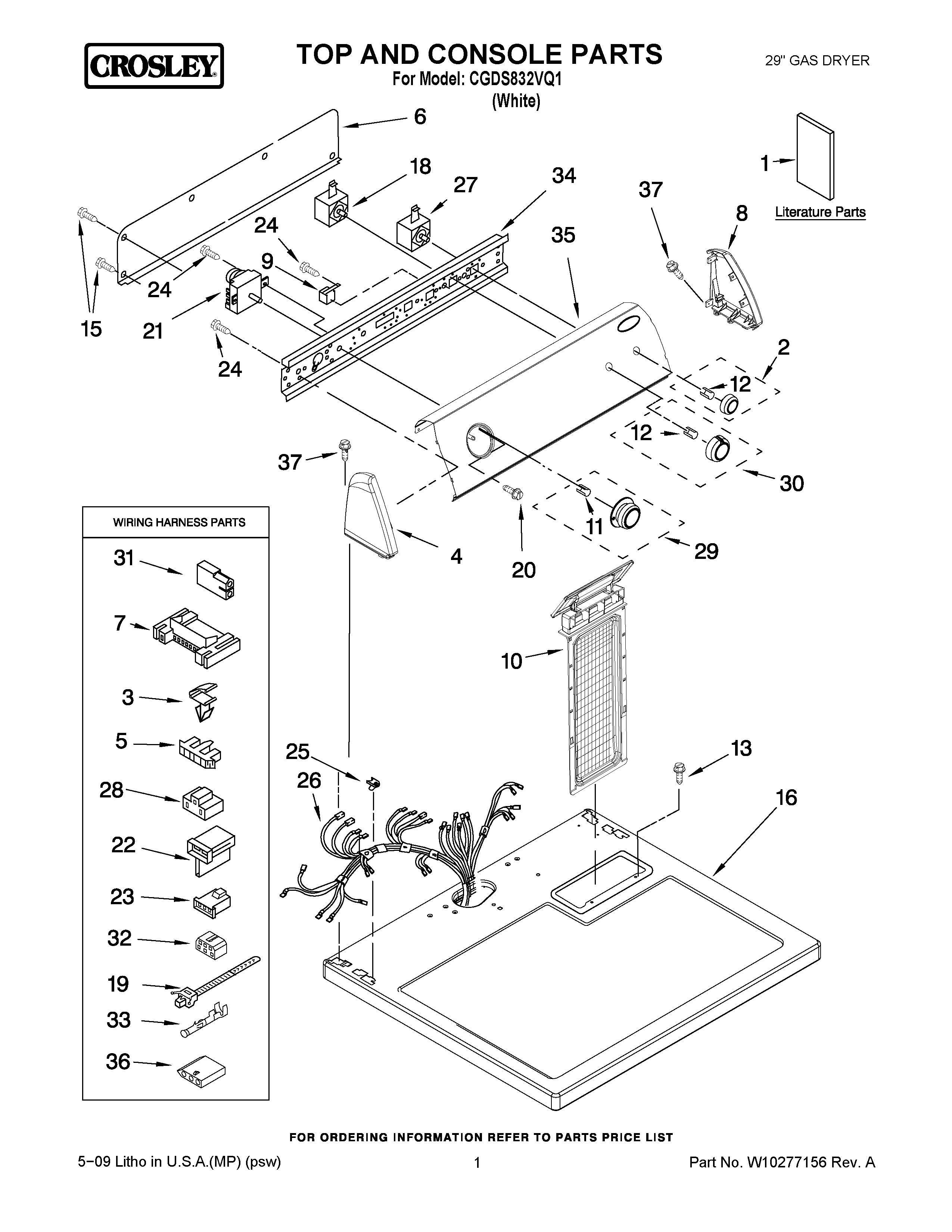

CGDS832VQ1 01 – TOP AND CONSOLE PARTS

CGDS832VQ1 01 – TOP AND CONSOLE PARTS

Written by

in

CGDS832VQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Installation Instructions
1Sheet, Cycle Feature
1Wiring Diagram
1Use & Care Guide
2Knob, Push-To-Start
3WP3394427 Whirlpool Clip
5Connector, Timer
6W10103406 Whirlpool Rear Panel
73395683 Whirlpool Connector
8W10820038 Whirlpool Endcap
9WP694419 Whirlpool Buzzer Adjuster
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP688805 Whirlpool Spring Clip
12WP8536939 Whirlpool Spring Clip
13W11693756 Whirlpool Screw Assembly
15WP693995 Whirlpool Screw
16Top
183399638 Whirlpool Switch
19Tie, Cable
203400859 Whirlpool Screw
21WPW10185981 Whirlpool Timer
22WP3403499 Whirlpool Connector
23WP3403498 Whirlpool Connector
24WP90767 Whirlpool Screw
25WP357213 Whirlpool Hinge Stopper
26HARNESS, WIRING
27WP3398094 Whirlpool Push To Start Switch
283401144 Whirlpool Connector
29WP8557455 Whirlpool Knob Timer
30KNOB
31Receptacle, Latching (2-Way) (Uses Terminal 94614)
32Block, Disconnect
33WP94614 Whirlpool Terminal
34Bracket, Control
35Panel, Control
363936144 Whirlpool Connector
37WP388326 Whirlpool Screw
