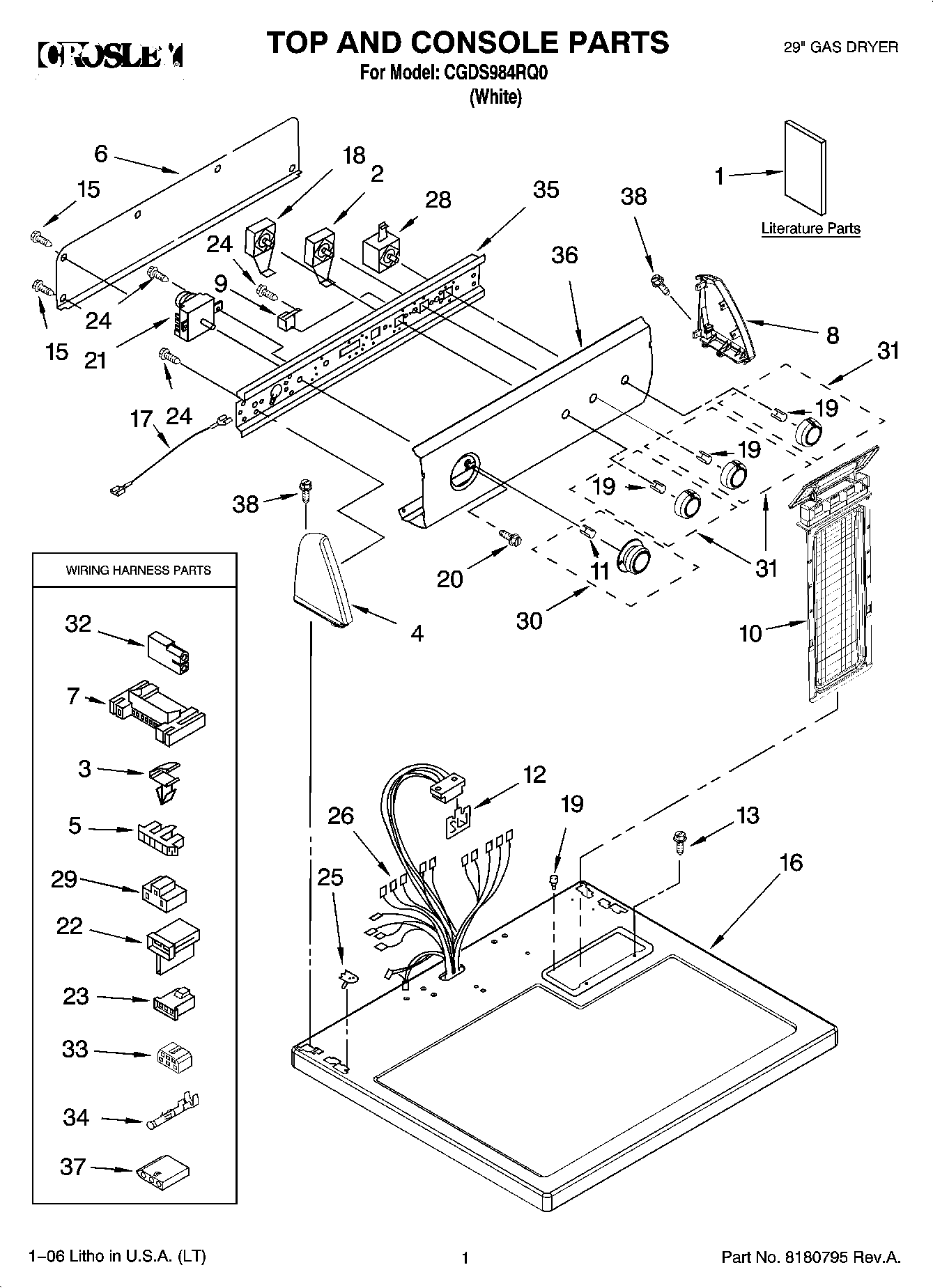

CGDS984RQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Sheet, Cycle Feature
1	Use & Care Guide
1	WPL 677818
1	Wiring Diagram
1	Installation Instructions
2	3405154 Whirlpool Primary Switch
3	WP3394427 Whirlpool Clip
5	Connector, Timer
6	W10103406 Whirlpool Rear Panel
7	3395683 Whirlpool Connector
8	W10820038 Whirlpool Endcap
9	WP694419 Whirlpool Buzzer Adjuster
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP688805 Whirlpool Spring Clip
12	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
13	W11693756 Whirlpool Screw Assembly
15	WP693995 Whirlpool Screw
16	Top
17	Wire, Jumper (Black)
18	8530169 Whirlpool Switch
19	WP8536939 Whirlpool Spring Clip
20	3400859 Whirlpool Screw
21	WP3406725 Whirlpool Timer
22	WP3403499 Whirlpool Connector
23	WP3403498 Whirlpool Connector
24	WP90767 Whirlpool Screw
25	WP357213 Whirlpool Hinge Stopper
26	Harness, Wiring
28	WP3398095 Whirlpool Dryer Start Relay
29	3401144 Whirlpool Connector
30	WP8557455 Whirlpool Knob Timer
31	KNOB
32	Receptacle, Latching (2-Way) (Uses Terminal 94614)
33	Block, Disconnect
34	WP94614 Whirlpool Terminal
35	Bracket, Control
36	Panel, Control
37	3936144 Whirlpool Connector
38	WP388326 Whirlpool Screw
