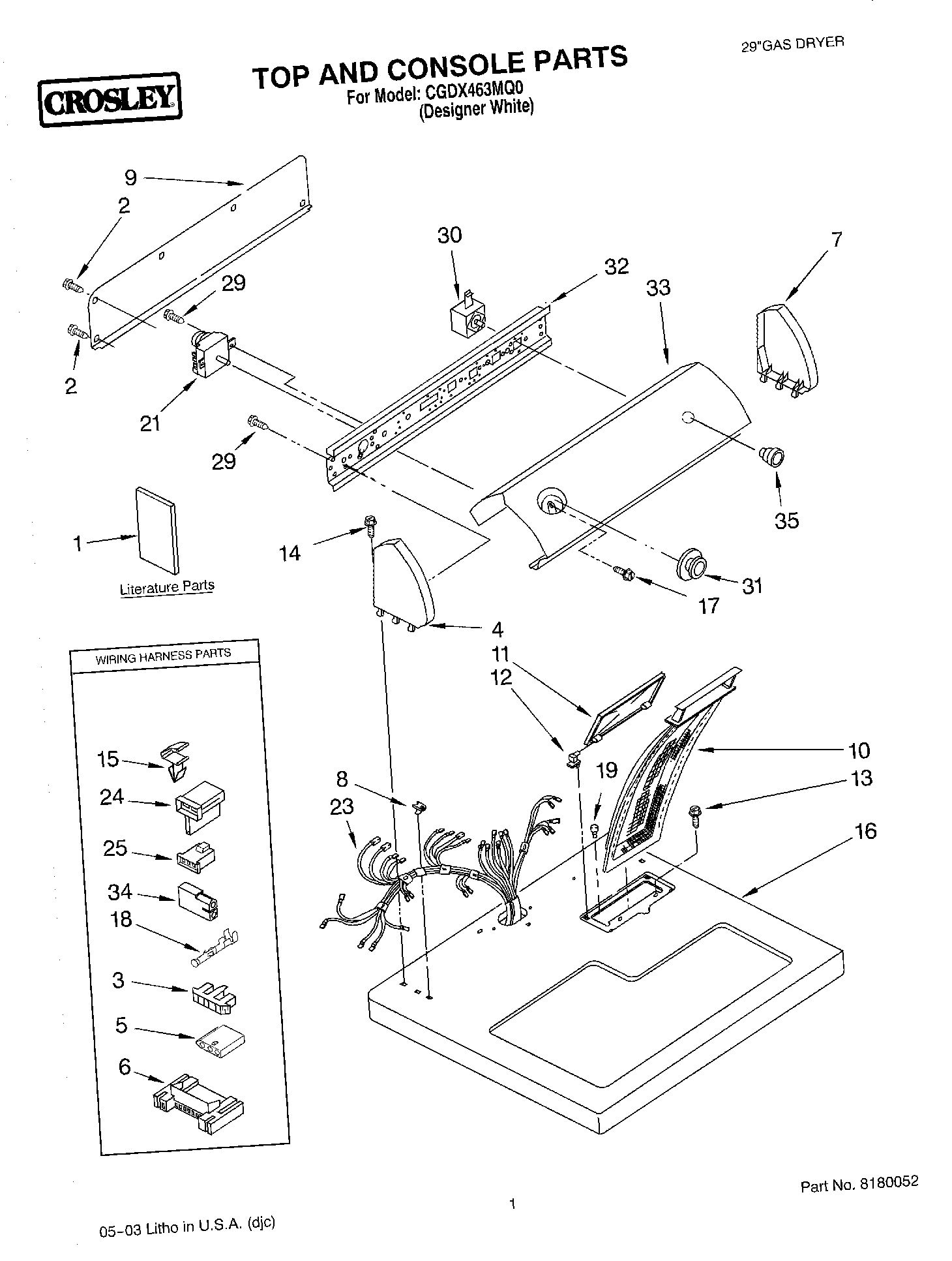

CGDX463MQ0 01 – TOP AND CONSOLE PARTS

CGDX463MQ0 01 – TOP AND CONSOLE PARTS

Written by

in

CGDX463MQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1DO-IT-YOURSELF REPAIR MANUALS
1Following May Be Purchased
1Literature Parts (Installation Instructions)
1Literature Parts (Label, Wiring Diagram)
1Literature Parts (Sheet, Cycle Feature)
1Literature Parts (Use & Care Guide)
1Dryer
2WP693995 Whirlpool Screw
3Connector, Timer
53936144 Whirlpool Connector
63395683 Whirlpool Connector
7279960 Whirlpool Endcap Assembly
8WP357213 Whirlpool Hinge Stopper
9W10103406 Whirlpool Rear Panel
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15WP3394427 Whirlpool Clip
16Top
173400859 Whirlpool Screw
18WP94614 Whirlpool Terminal
19Bumper, Lint Lid
21WP8299764 Whirlpool Timer
23Harness, Wiring
24WP3403499 Whirlpool Connector
25WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
30WP3977456 Whirlpool Start Switch
31WP3957746 Whirlpool Knob Assembly
32Bracket, Control
33Panel, Control
34Receptacle, Latching (2-Way) (Uses Terminal 94614)
35350938 Whirlpool Spray Gun
35WPL ARI144739A
35W11224254 Whirlpool Test Kit
3572017 Whirlpool Appliance Touch-Up Paint White
35799344 Whirlpool Refrigerator Paint
35WP3957800 Whirlpool Knob
35WP689790 Whirlpool Dryer Rack
354392065 Whirlpool Dryer Maintenance Kit
35350930 Whirlpool White Spray Paint
35KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
