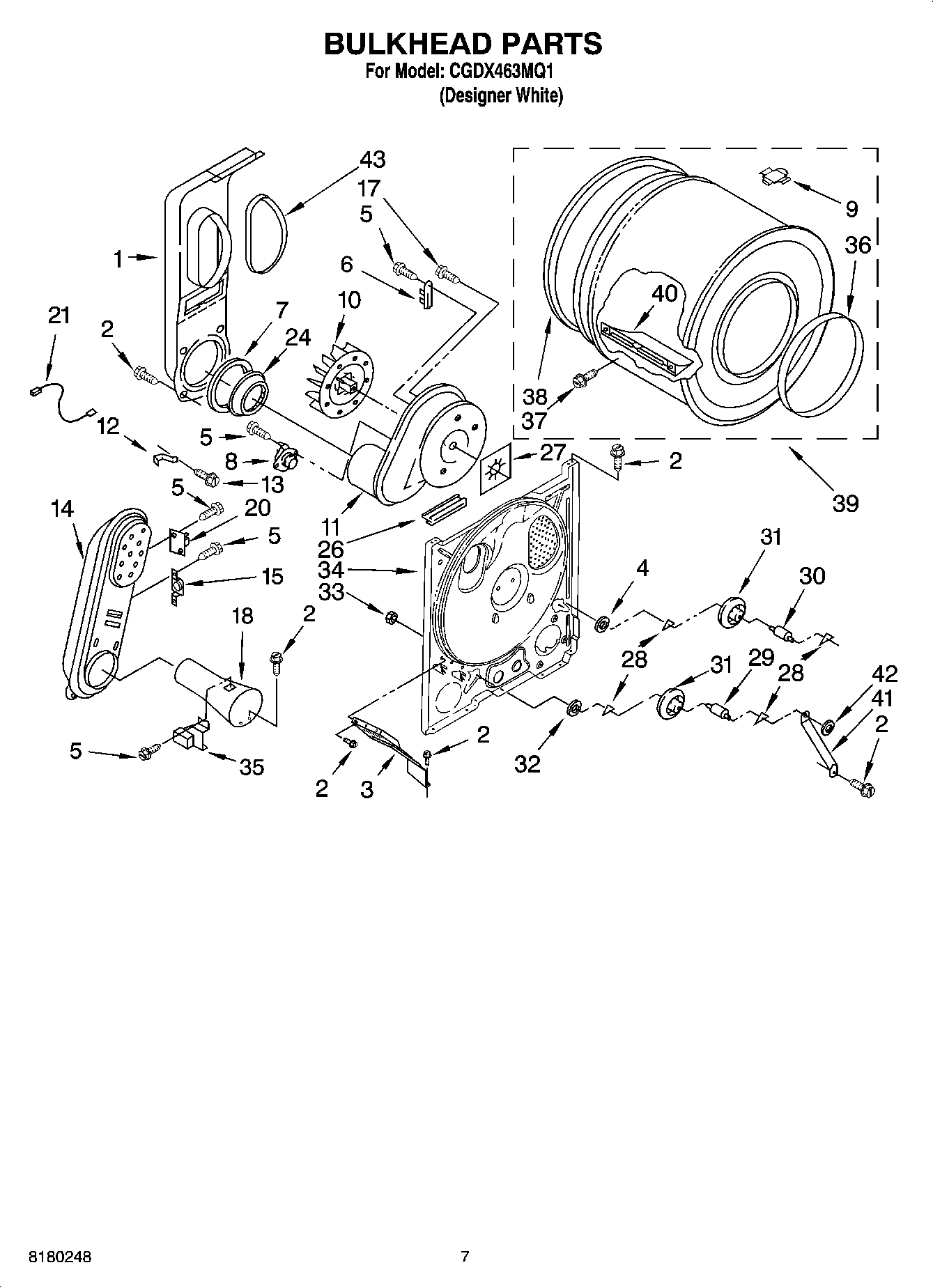

CGDX463MQ1 04 – BULKHEAD PARTS

Products

Position	Product
1	279505 Whirlpool Chute
2	SCREW
3	W11398682 Whirlpool Bracket
4	WP3388703 Whirlpool Washer
5	WP90767 Whirlpool Screw
6	WP3392519 Whirlpool Dryer Thermal Fuse
7	W11415783 Whirlpool Seal
8	WP3387134 Whirlpool Dryer Cycling Thermostat
9	8066086 Whirlpool Plug
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	279771 Whirlpool Clip
13	WP489463 Whirlpool Refrigerator Screw
14	279980 Whirlpool Box
17	WP488729 Whirlpool Refrigerator Door Screw
18	WP8066048 Whirlpool Funnel
20	W11050897 Whirlpool Dryer High Limit Thermostat
21	WP3401707 Whirlpool Wire Assembly
24	W11233063 Whirlpool Shield Assembly
26	686889 Whirlpool Pad
27	Seal, Blower
28	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
29	SHAFT SUPPORT ROLLER DRYER
30	SHAFT SUPPORT ROLLER DRYER
31	349241T Whirlpool Dryer Drum Support Roller Kit
32	WP348197 Whirlpool Washer Assembly
33	WP3359452 Whirlpool Nut
34	BULKHEAD
35	WP338906 Whirlpool Dryer Gas Sensor
36	WP3394509 Whirlpool Bearing Ring
37	WPW10109200 Whirlpool Screw
38	239087 Whirlpool Dryer Rear Drum Seal Green Stitches
39	697760 Whirlpool Drum Assembly Primary OS2
40	WP342847 Whirlpool Drum Baffle
41	Bracket, Support
42	WP90296 Whirlpool Clip
43	SEAL
