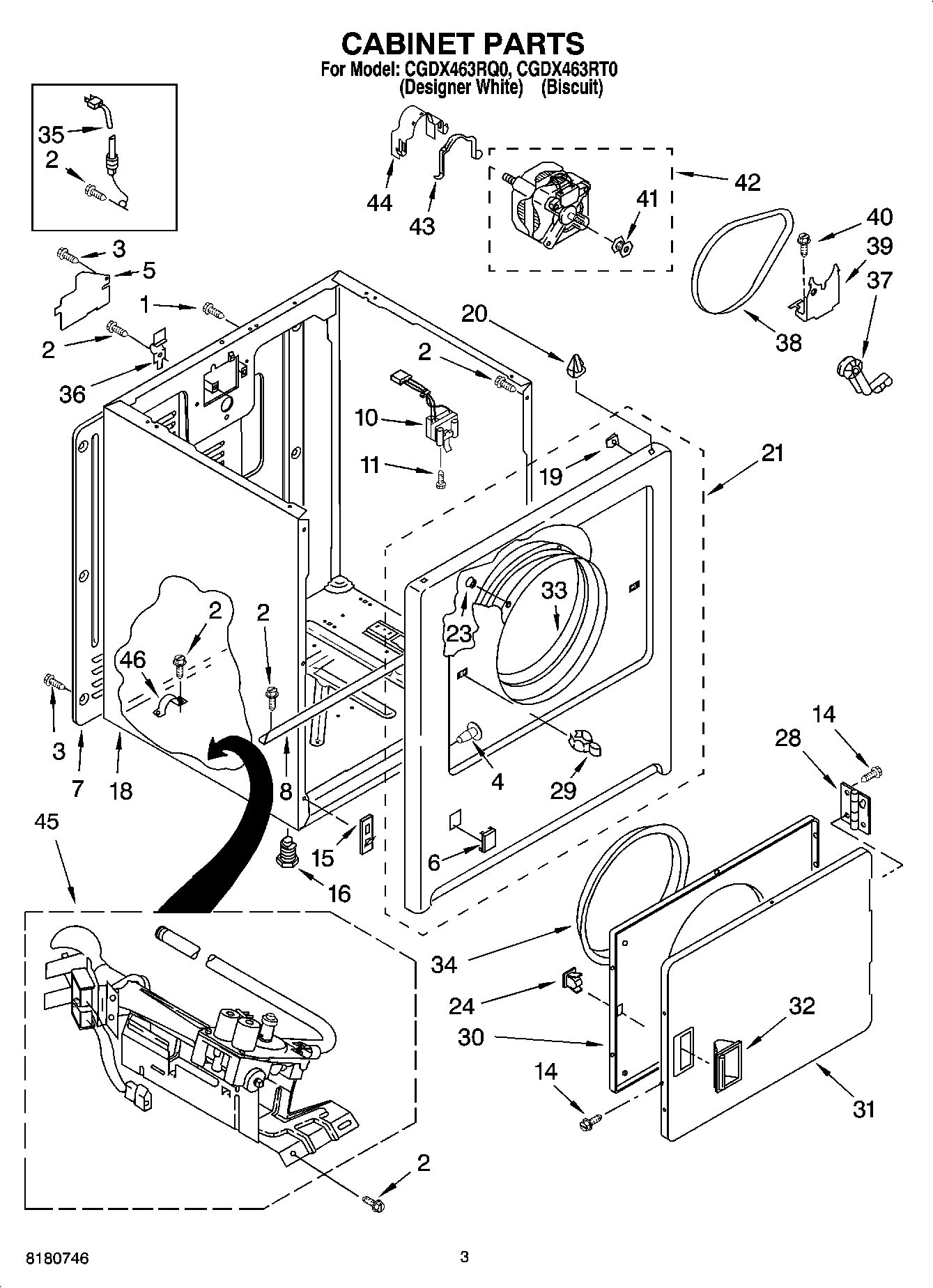

CGDX463RQ0 02 – CABINET PARTS

Products

Position	Product
1	W10850756 Whirlpool Screw
2	SCREW
3	WP693995 Whirlpool Screw
4	WP3404413 Whirlpool Plug
4	Plug, Hinge Hole (4) (Biscuit)
5	W11539855 Whirlpool Refrigerator Pump
6	Plug, Front Panel (White)
6	Plug, Front Panel (Biscuit)
7	280040 Whirlpool Rear Panel
8	Bracket, Cabinet
10	WP3406105 Whirlpool Door Switch
11	WP3395530 Whirlpool Screw
14	WP488627 Whirlpool Refrigerator Screw
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	49621 Whirlpool Leveling Feet
18	Cabinet (Biscuit)
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Front Panel Assembly (Biscuit)
21	Front Panel Assembly (White)
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
28	WPW10362431 Whirlpool Hinge Assembly
30	Door, Rear
31	WP3403361 Whirlpool Door
31	WP3403363 Whirlpool Door
32	WP3405184 Whirlpool White Door Handle
32	WP3405189 Whirlpool Handle
33	279264 Whirlpool Bearing and Seal Kit
34	SEAL-DOOR DRYER
35	W11222083 Whirlpool Power Cord
36	WP8066217 Whirlpool Hinge
37	WP691366 Whirlpool Dryer Idler Pulley Assembly
38	341241 Whirlpool Dryer Drum Belt
39	WP348780 Whirlpool Base
40	3400500 Whirlpool Screw
41	WP8066184 Whirlpool Dryer Motor Pulley
42	279827 Whirlpool Dryer Drive Motor
43	WP660658 Whirlpool Clamp
44	WP3404162 Whirlpool Clamp
45	W10823508 Whirlpool Gas Burner
46	341029 Whirlpool Clamp
