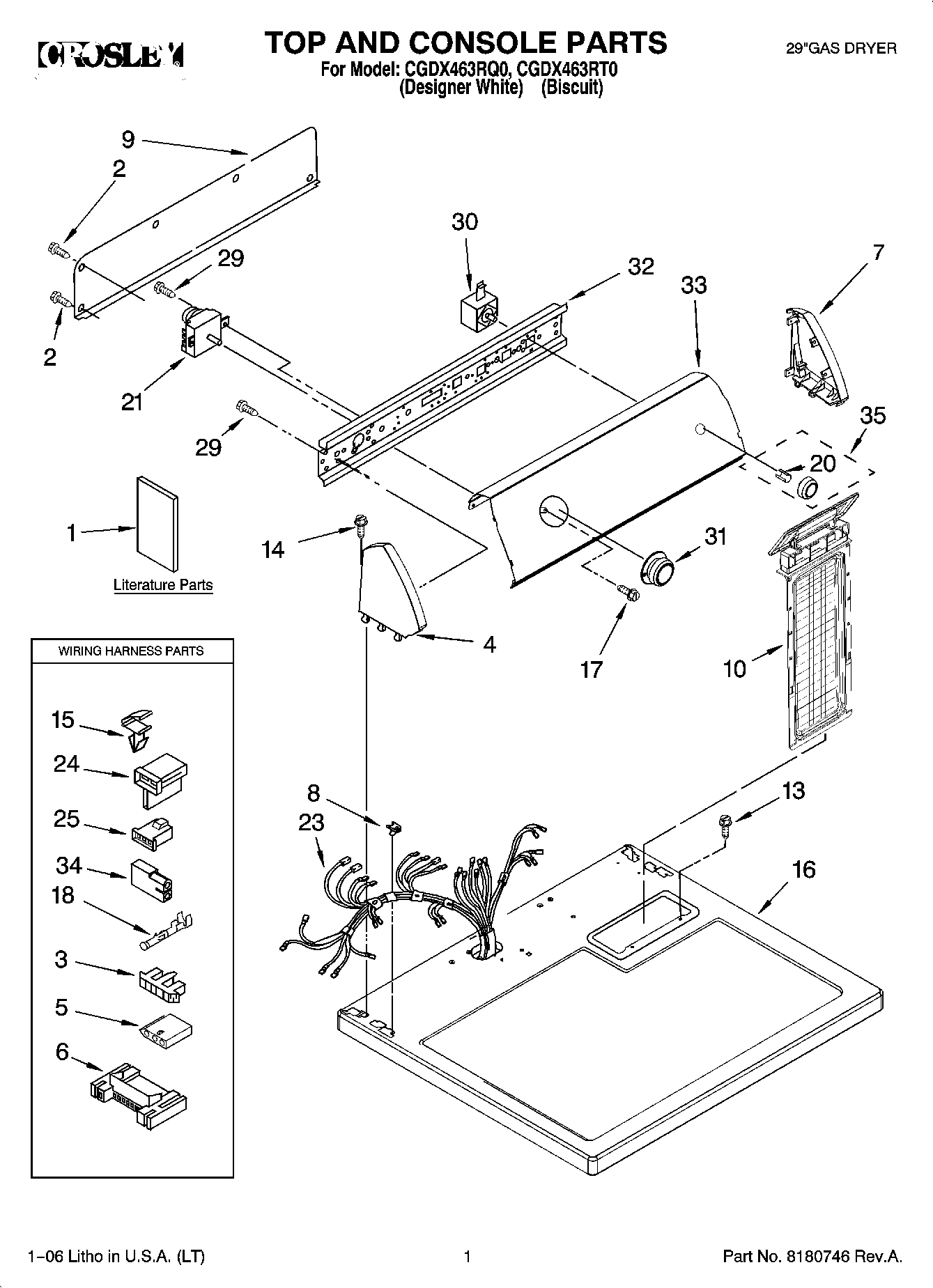

CGDX463RT0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Wiring Diagram
1	WPL 677818
1	Sheet, Cycle Feature
1	Instructions, Installation
1	Guide, Use & Care
2	WP693995 Whirlpool Screw
3	Connector, Timer
4	Cap, End (L.H.) (BIscuit)
5	3936144 Whirlpool Connector
6	3395683 Whirlpool Connector
7	W10820038 Whirlpool Endcap
7	WPL 8271362
8	WP357213 Whirlpool Hinge Stopper
9	W10103406 Whirlpool Rear Panel
10	W10874409 Whirlpool Lint Screen Filter
10	Screen, Lint (Biscuit)
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	WP3394427 Whirlpool Clip
16	Top
16	Top
17	3400859 Whirlpool Screw
18	WP94614 Whirlpool Terminal
20	WP8536939 Whirlpool Spring Clip
21	WP8299764 Whirlpool Timer
23	Harness, Wiring
24	WP3403499 Whirlpool Connector
25	WP3403498 Whirlpool Connector
29	WP90767 Whirlpool Screw
30	WP3977456 Whirlpool Start Switch
31	3957383 Whirlpool Knob
31	Timer Knob Assembly (Biscuit)
32	Bracket, Control
33	Panel, Control (White)
33	Panel, Control (Biscuit)
34	Receptacle, Latching (2-Way) (Uses Terminal 94614)
35	Knob, Push-To-Start (Biscuit)
35	8557462 Whirlpool Knob
