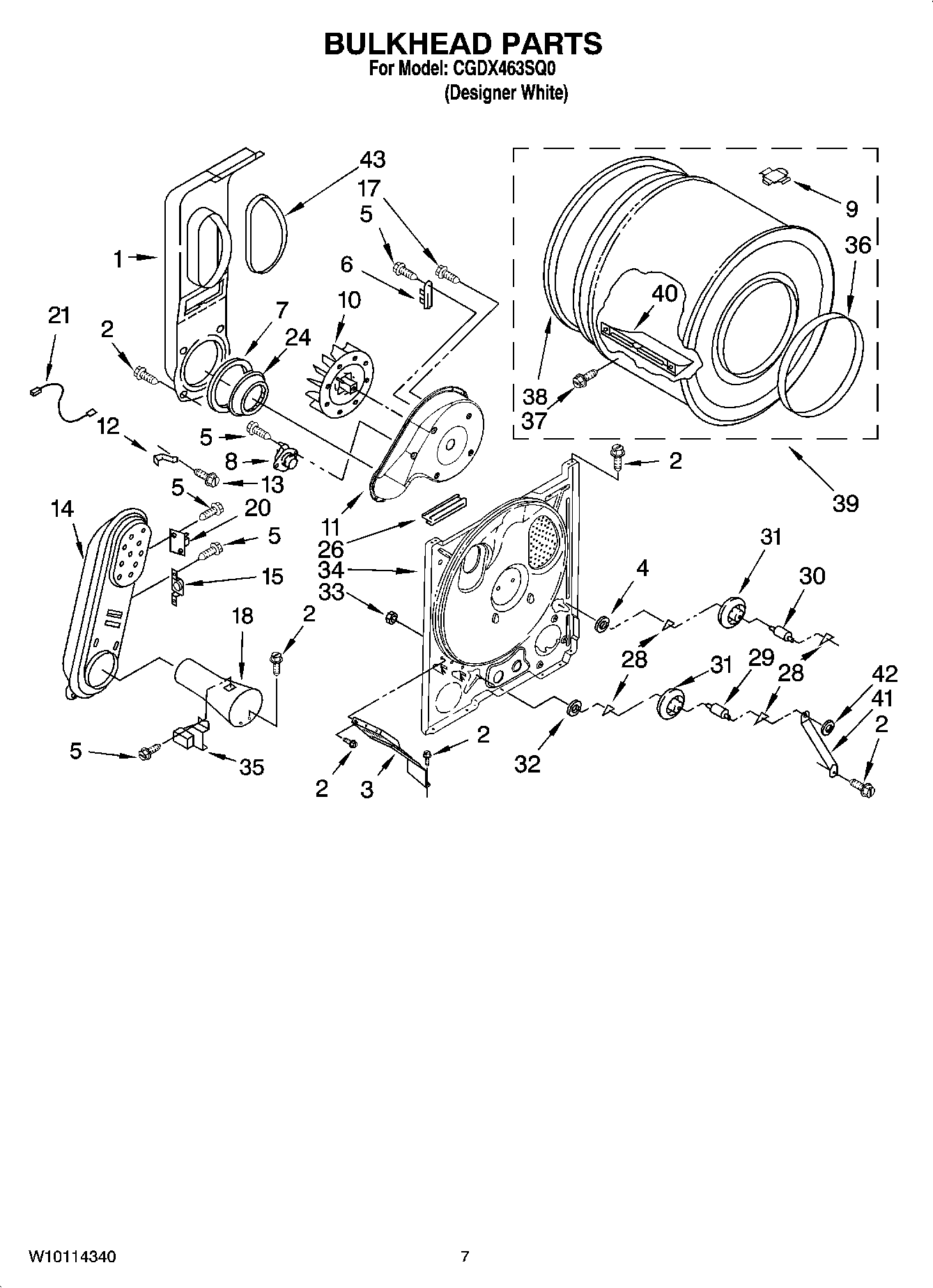

CGDX463SQ0 04 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

CGDX463SQ0 04 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

CGDX463SQ0 04 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
W11224254 Whirlpool Test Kit
4392065 Whirlpool Dryer Maintenance Kit
4392899 Whirlpool Biscuit Touch-Up Paint
KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
ACCESSORY PARTS
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
4392901 Whirlpool Biscuit Spray Paint
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350938 Whirlpool Spray Gun
WP689790 Whirlpool Dryer Rack
1279505 Whirlpool Chute
2SCREW
3W11398682 Whirlpool Bracket
4WP3388703 Whirlpool Washer
5WP90767 Whirlpool Screw
6WP3392519 Whirlpool Dryer Thermal Fuse
7W11415783 Whirlpool Seal
8WP3387134 Whirlpool Dryer Cycling Thermostat
98066086 Whirlpool Plug
10WP694089 Whirlpool Dryer Blower Wheel
11WP8577230 Whirlpool Housing
12279771 Whirlpool Clip
13WP489463 Whirlpool Refrigerator Screw
14279980 Whirlpool Box
17WP488729 Whirlpool Refrigerator Door Screw
18WP8066048 Whirlpool Funnel
20W11050897 Whirlpool Dryer High Limit Thermostat
21WP3401707 Whirlpool Wire Assembly
24W11233063 Whirlpool Shield Assembly
26686889 Whirlpool Pad
28WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
29SHAFT SUPPORT ROLLER DRYER
30SHAFT SUPPORT ROLLER DRYER
31349241T Whirlpool Dryer Drum Support Roller Kit
32WP348197 Whirlpool Washer Assembly
33WP3359452 Whirlpool Nut
34BULKHEAD
35WP338906 Whirlpool Dryer Gas Sensor
36WP3394509 Whirlpool Bearing Ring
37WPW10109200 Whirlpool Screw
38239087 Whirlpool Dryer Rear Drum Seal Green Stitches
39697760 Whirlpool Drum Assembly Primary OS2
40WP342847 Whirlpool Drum Baffle
41Bracket, Support
42WP90296 Whirlpool Clip
43SEAL
