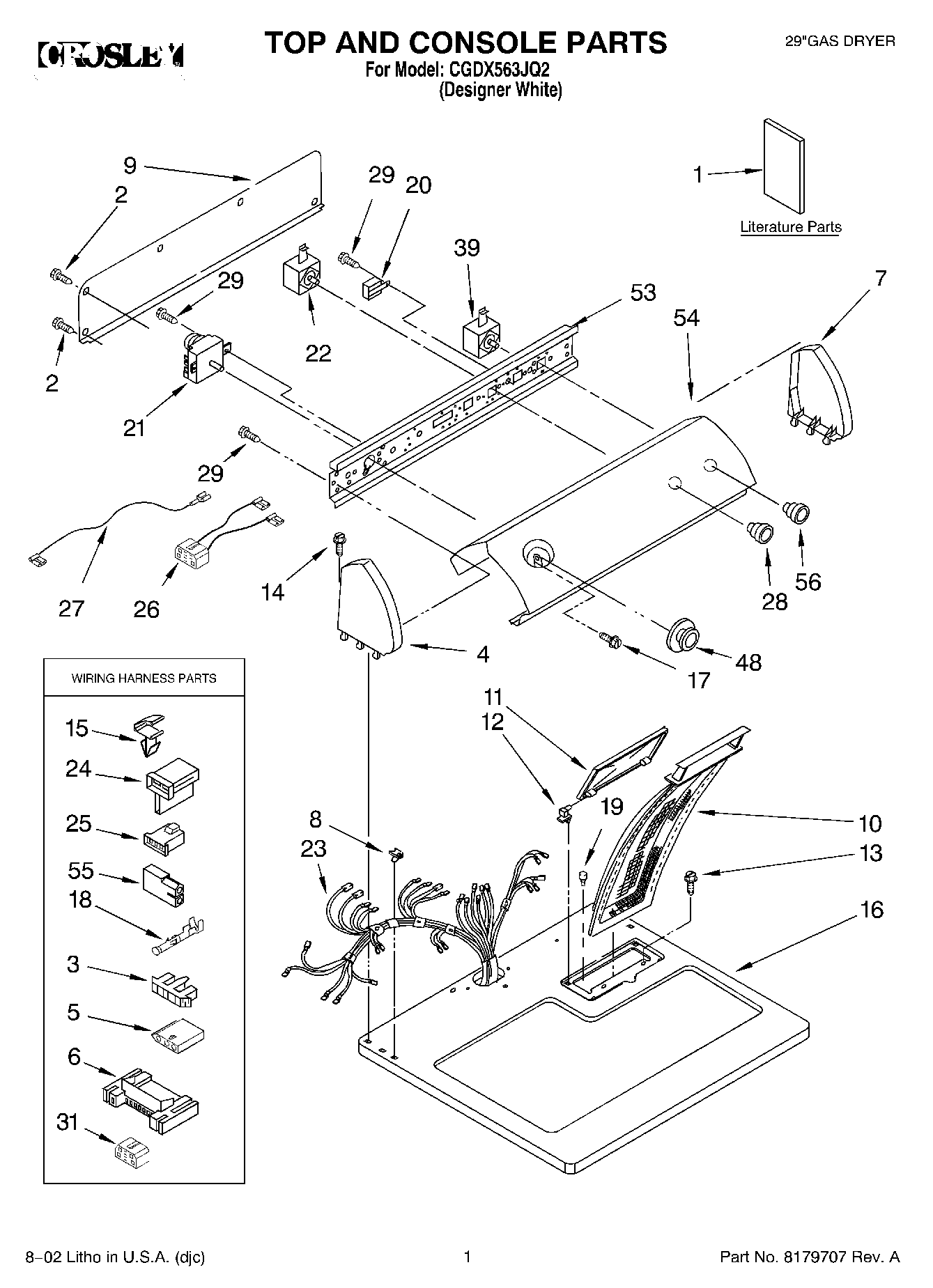

CGDX563JQ2 01 – TOP AND CONSOLE, LITERATURE

CGDX563JQ2 01 – TOP AND CONSOLE, LITERATURE

Written by

in

CGDX563JQ2 01 – TOP AND CONSOLE, LITERATURE

Products

PositionProduct
Dryer
1Literature Parts (Instructions, Installation)
1Literature Parts (Guide, Use & Care)
1Literature Parts (Wiring Diagram)
2WP693995 Whirlpool Screw
3Connector, Timer
53936144 Whirlpool Connector
63395683 Whirlpool Connector
7279960 Whirlpool Endcap Assembly
8WP357213 Whirlpool Hinge Stopper
9W10103406 Whirlpool Rear Panel
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15WP3394427 Whirlpool Clip
16Top
173400859 Whirlpool Screw
18WP94614 Whirlpool Terminal
19Bumper, Lint Lid
20WP694419 Whirlpool Buzzer Adjuster
21WP8299766 Whirlpool Timer Assembly
223399638 Whirlpool Switch
238299878 Whirlpool Wire Harness
24WP3403499 Whirlpool Connector
25WP3403498 Whirlpool Connector
268283286 Whirlpool Wire Harness
27Wire, Jumper (White)
27Wire, Jumper (Tan)
28WP3957796 Whirlpool Knob
29WPW10139210 Whirlpool Screw
31Block, Disconnect
39WP3398094 Whirlpool Push To Start Switch
48WP3957746 Whirlpool Knob Assembly
53Bracket, Control
54Panel, Control
55Receptacle, Latching (2-Way) (Uses Terminal 94614)
56WP689790 Whirlpool Dryer Rack
5672017 Whirlpool Appliance Touch-Up Paint White
56799344 Whirlpool Refrigerator Paint
56WP3957800 Whirlpool Knob
56350930 Whirlpool White Spray Paint
56KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
564392065 Whirlpool Dryer Maintenance Kit
56W11224254 Whirlpool Test Kit
56350938 Whirlpool Spray Gun
