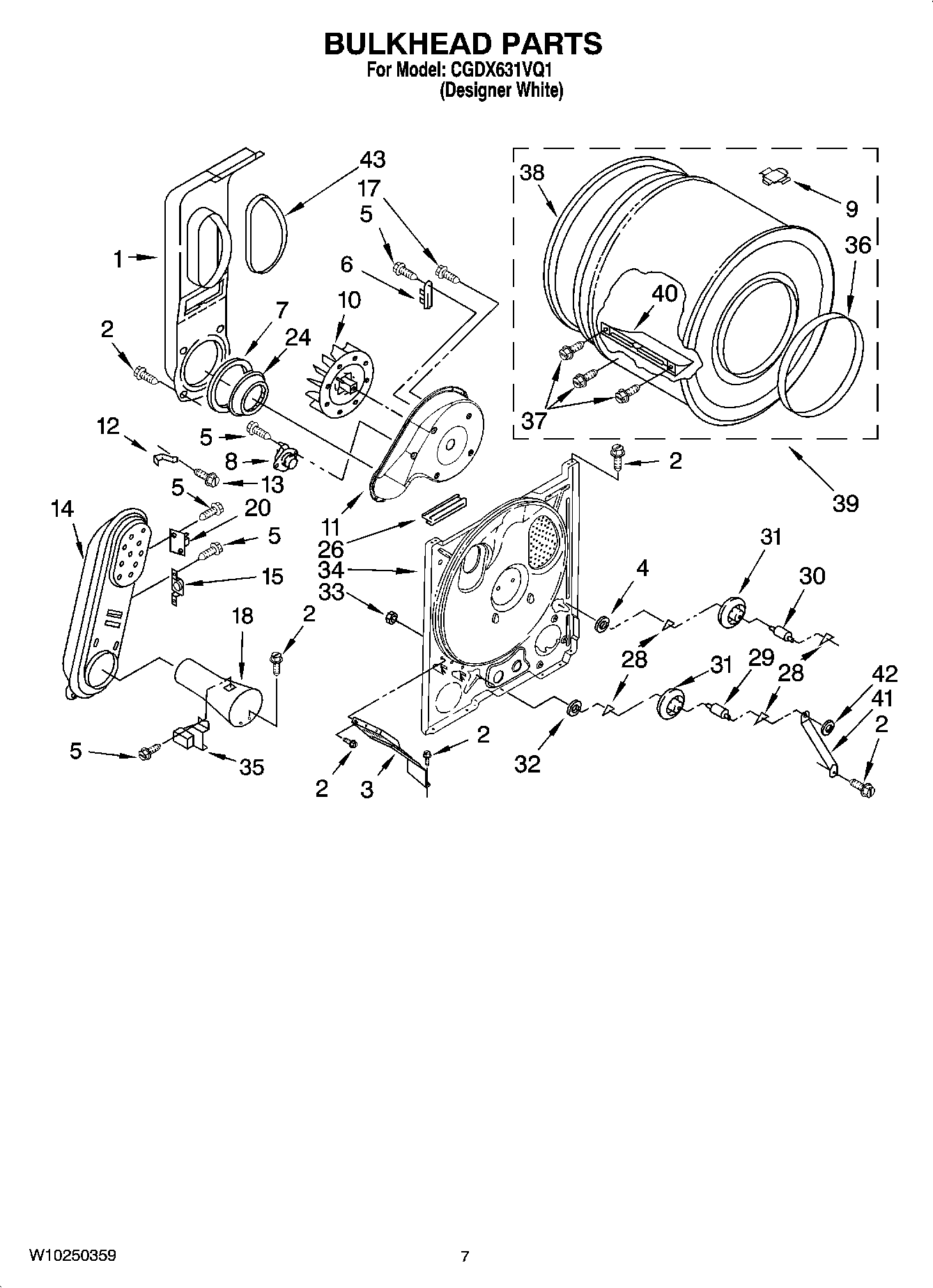

CGDX631VQ1 04 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

CGDX631VQ1 04 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

CGDX631VQ1 04 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	4392901 Whirlpool Biscuit Spray Paint
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	4392065 Whirlpool Dryer Maintenance Kit
	W11224254 Whirlpool Test Kit
	WP689790 Whirlpool Dryer Rack
	KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
	4392899 Whirlpool Biscuit Touch-Up Paint
	ACCESSORY PARTS
	799344 Whirlpool Refrigerator Paint
	350938 Whirlpool Spray Gun
	72017 Whirlpool Appliance Touch-Up Paint White
1	279505 Whirlpool Chute
2	SCREW
3	W11398682 Whirlpool Bracket
4	WP3388703 Whirlpool Washer
5	WP90767 Whirlpool Screw
6	WP3392519 Whirlpool Dryer Thermal Fuse
7	W11415783 Whirlpool Seal
8	WP3387134 Whirlpool Dryer Cycling Thermostat
9	8066086 Whirlpool Plug
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	279771 Whirlpool Clip
13	WP489463 Whirlpool Refrigerator Screw
14	279980 Whirlpool Box
17	WP488729 Whirlpool Refrigerator Door Screw
18	WP8066048 Whirlpool Funnel
20	W11050897 Whirlpool Dryer High Limit Thermostat
24	W11233063 Whirlpool Shield Assembly
26	686889 Whirlpool Pad
28	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
29	SHAFT SUPPORT ROLLER DRYER
30	SHAFT SUPPORT ROLLER DRYER
31	349241T Whirlpool Dryer Drum Support Roller Kit
32	WP348197 Whirlpool Washer Assembly
33	WP3359452 Whirlpool Nut
34	BULKHEAD
35	WP338906 Whirlpool Dryer Gas Sensor
36	WP3394509 Whirlpool Bearing Ring
37	W10853898 Whirlpool Screw
38	239087 Whirlpool Dryer Rear Drum Seal Green Stitches
39	697760 Whirlpool Drum Assembly Primary OS2
40	WP342847 Whirlpool Drum Baffle
41	Bracket, Support
42	WP90296 Whirlpool Clip
43	SEAL
