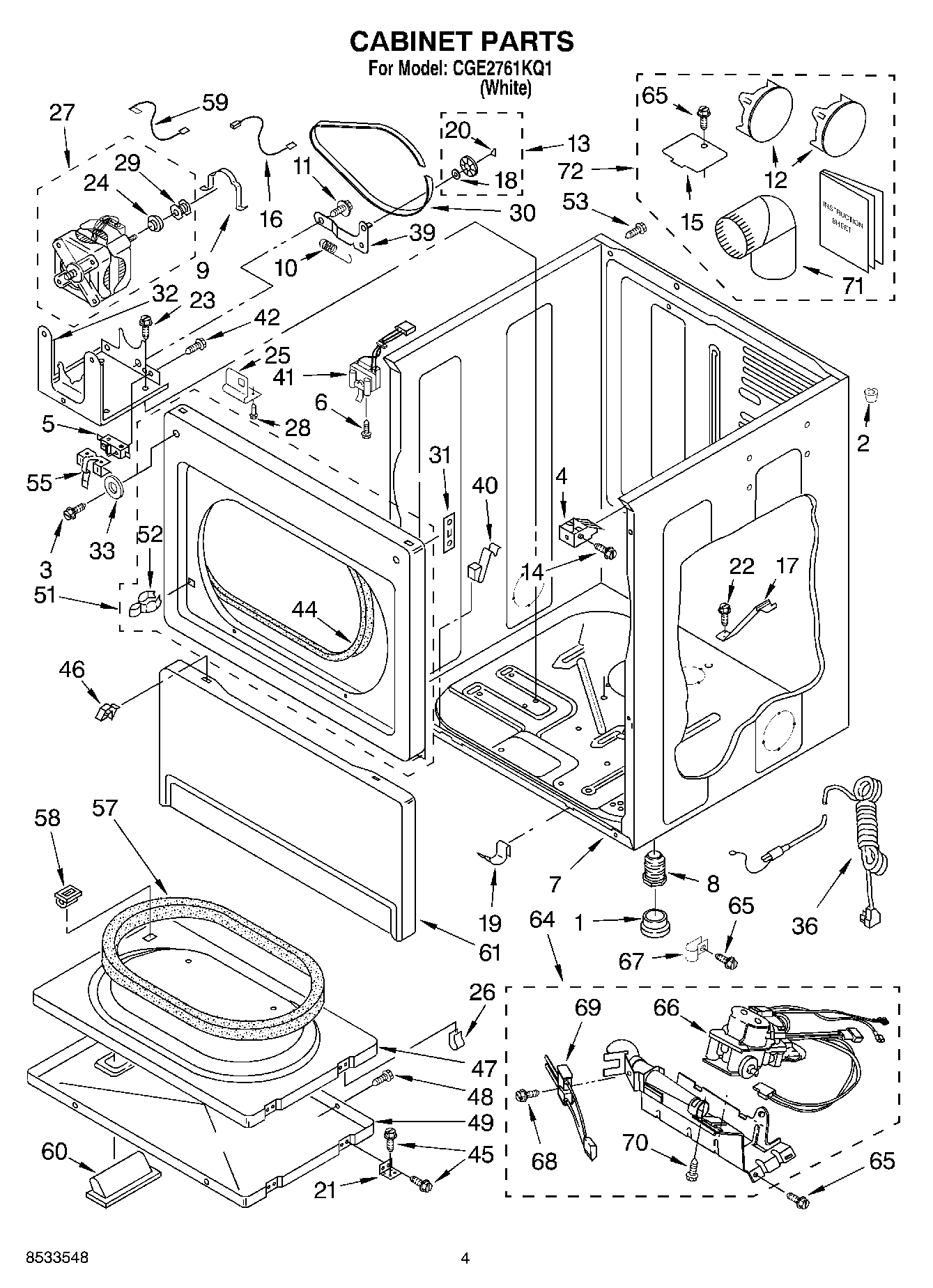

CGE2761KQ1 02 – CABINET PARTS

Products

Position	Product
1	WP3391943 Whirlpool Foot Boot
2	WPL 356674
3	WP3373329 Whirlpool Dishwasher Screw
4	3391846 Whirlpool Clip
5	279782 Whirlpool Lid Switch
6	WP3395530 Whirlpool Screw
7	W11417441 Whirlpool Cabinet
8	49621 Whirlpool Leveling Feet
9	WP660658 Whirlpool Clamp
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
13	279640 Whirlpool Dryer Idler Pulley Kit
14	681615 Whirlpool Screw
15	WPW10354249 Whirlpool Cover
16	Wire, Belt Switch
17	W10181903 Whirlpool Bracket
18	WPW10121334 Whirlpool Washer
19	WP297092 Whirlpool Clip
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	W11175815 Whirlpool Hinge
23	SCREW
24	WP3393657 Whirlpool Belt Retainer
25	Bracket, Lock
26	Nut, ``U`` (4)
27	W10841144 Whirlpool Drive Motor
28	Rivet (2)
29	WP8066184 Whirlpool Dryer Motor Pulley
30	661570V Whirlpool Dryer Drum Belt
31	WP3390902 Whirlpool Clip
32	WP3387118 Whirlpool Base Assembly
33	Washer
36	W11628810 Whirlpool Power Cord
39	W10837240 Whirlpool Dryer Idler Pulley
40	Clip, Lint Duct
41	SWITCH-DOOR DRYER
42	WP98129 Whirlpool Screw
44	WP3387242 Whirlpool Seal
45	WP488627 Whirlpool Refrigerator Screw
46	WP3388229 Whirlpool Dryer Spring Clip
47	280083 Whirlpool Rear Door
48	WP694091 Whirlpool Screw
49	W11663440 Whirlpool Door
51	Front Panel
53	W10850756 Whirlpool Screw
55	WP8066120 Whirlpool Lever Assembly
57	WP3390735 Whirlpool Door Seal
58	279570 Whirlpool Dryer Door Latch Kit
59	3398948 Whirlpool Wire
60	3389522 Whirlpool Handle
61	WP3406797 Whirlpool Toe Panel
64	Burner Assembly 60 Hz. (Refer To Pages 8 & 9 For Further Breakdown)
65	WP488729 Whirlpool Refrigerator Door Screw
66	279923 Whirlpool Gas Valve
67	3387561 Whirlpool Clamp
68	WPW10366705 Whirlpool Screw
69	279311 Whirlpool Dryer Flat Igniter with Bracket
70	WP693995 Whirlpool Screw
71	4`` - 90 Elbow Optional Parts Not Included Dryer Exhaust Kit (For Side
72	W10470674 Whirlpool Dryer Side Vent Exhaust Kit
