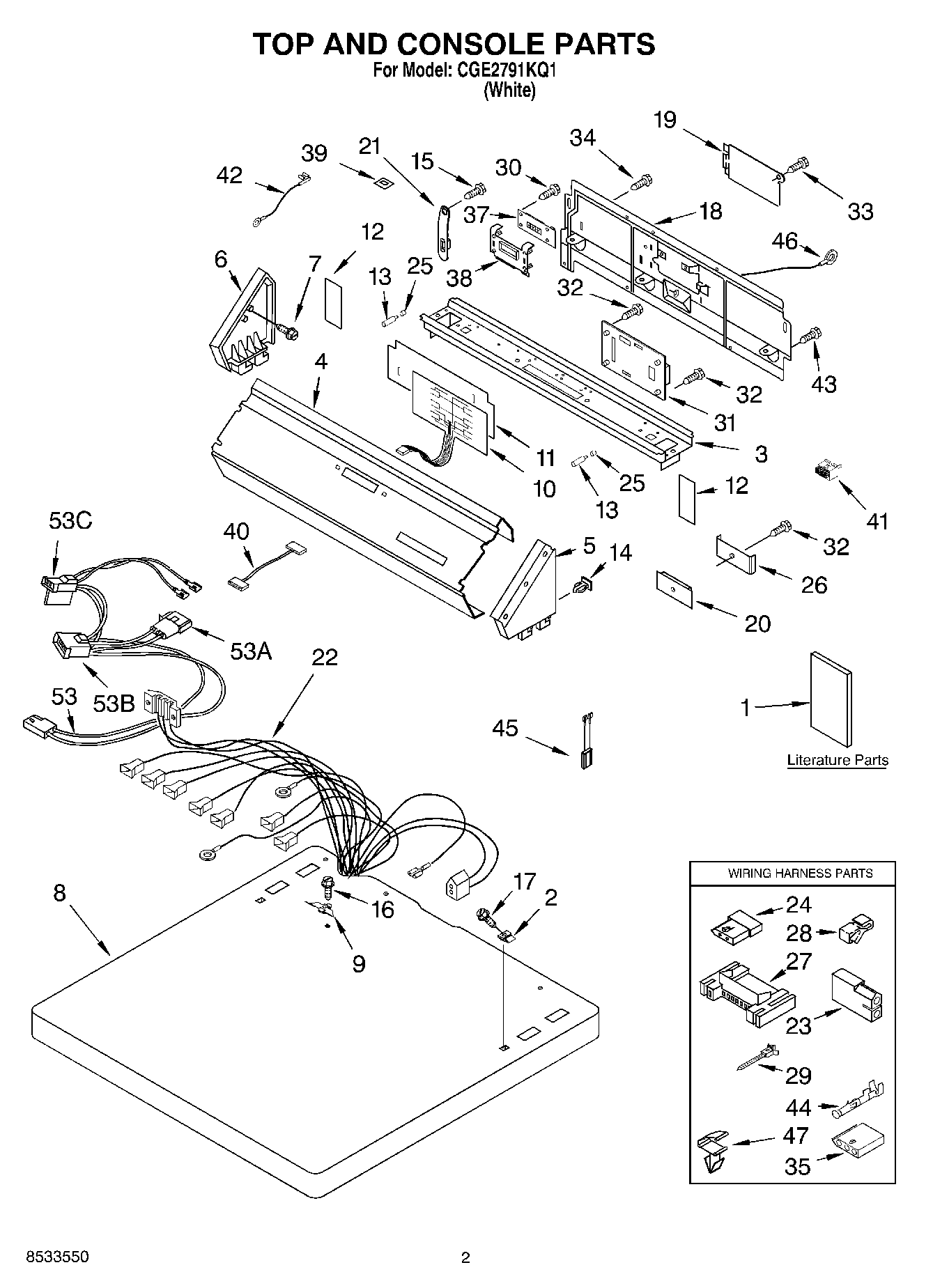

CGE2791KQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Literature Parts (Instructions. Installation)
1Literature Parts (Tech Sheet)
1Literature Parts (Repair Parts List)
1Literature Parts (Label, Wiring Diagram)
2WP357213 Whirlpool Hinge Stopper
3Bracket, Control
4Panel, Control
5Cap, End (R.H.)
6W11686050 Whirlpool Drive Motor
7WPW10109200 Whirlpool Screw
8Top
9Clip, Static Ground
10Switch, Membrane
11Backer Plate
12Backer Plate, Side (2)
13Mounting Stud
14WP689559 Whirlpool Nut
15WP488729 Whirlpool Refrigerator Door Screw
16WP355214 Whirlpool Screw
17WP8281182 Whirlpool Screw Assembly
18285909 Whirlpool Rear Panel
19W10819767 Whirlpool Cover
20Plug, Panel
21WP8568314 Whirlpool Strap
22Harness, Main
23Receptacle, Latching (2-Way) (Uses Terminal 94614)
24WP717253 Whirlpool Dishwasher Connector
25Cap, Stud
26Plug, Retainer
273395683 Whirlpool Connector
28W10113937 Whirlpool Clamp
29WP3391018 Whirlpool Wire Tie
31Control Board
32WPW10366705 Whirlpool Screw
33WP90767 Whirlpool Screw
34WP693995 Whirlpool Screw
353936144 Whirlpool Connector
37Board, Display
38Lens, Display
39Clip (2)
40Harness Wire (Display)
41Harness Jumper (Controller)
42Ground Wire (Control Board)
43WP3351614 Whirlpool Screw
44WP94614 Whirlpool Terminal
45A.C. Line Filter
46Wire, Ground
47WP3394427 Whirlpool Clip
53BWP3403498 Whirlpool Connector
53CWP3403499 Whirlpool Connector
53WP3401850 Whirlpool Wire Harness
53APlug, 3-Way
