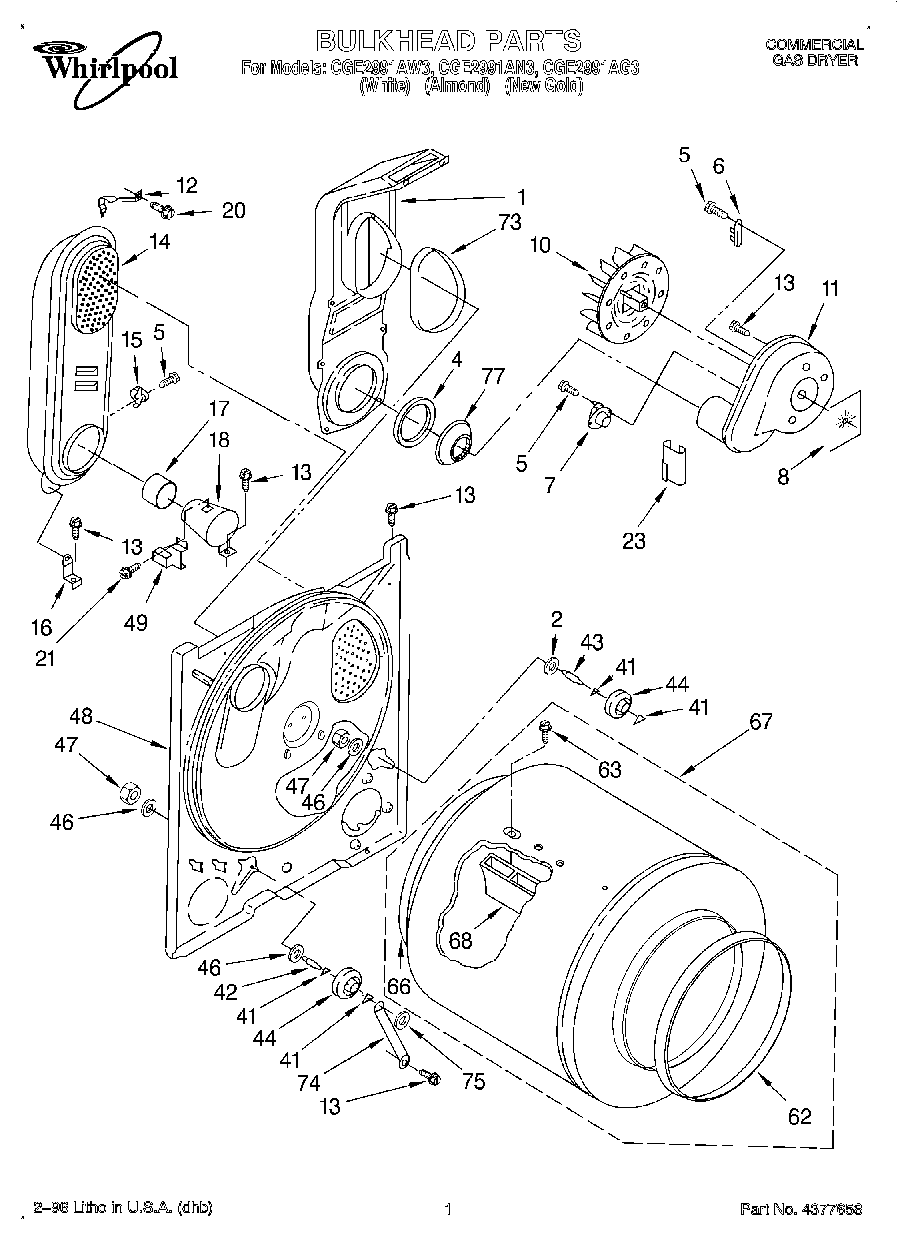

CGE2991AG3 01 – BULKHEAD

CGE2991AG3 01 – BULKHEAD

Written by

in

CGE2991AG3 01 – BULKHEAD

Products

PositionProduct
1279505 Whirlpool Chute
2WP3388703 Whirlpool Washer
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6WP3392519 Whirlpool Dryer Thermal Fuse
7WP3387134 Whirlpool Dryer Cycling Thermostat
8Seal, Blower
10WP694089 Whirlpool Dryer Blower Wheel
11WP8577230 Whirlpool Housing
12279771 Whirlpool Clip
13SCREW
15W11050897 Whirlpool Dryer High Limit Thermostat
16Support, Heater Box (2)
17279900 Whirlpool Box O/S1
20WP489463 Whirlpool Refrigerator Screw
21WP3390631 Whirlpool Screw
23686889 Whirlpool Pad
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP3359452 Whirlpool Nut
48Bulkhead
49WP338906 Whirlpool Dryer Gas Sensor
62WP3394508 Whirlpool Bearing Ring
63WPW10109200 Whirlpool Screw
66239087 Whirlpool Dryer Rear Drum Seal Green Stitches
673396775 Whirlpool Drum Assembly
68WP342847 Whirlpool Drum Baffle
73SEAL
74Bracket, Support
75WP90296 Whirlpool Clip
77W11233063 Whirlpool Shield Assembly
