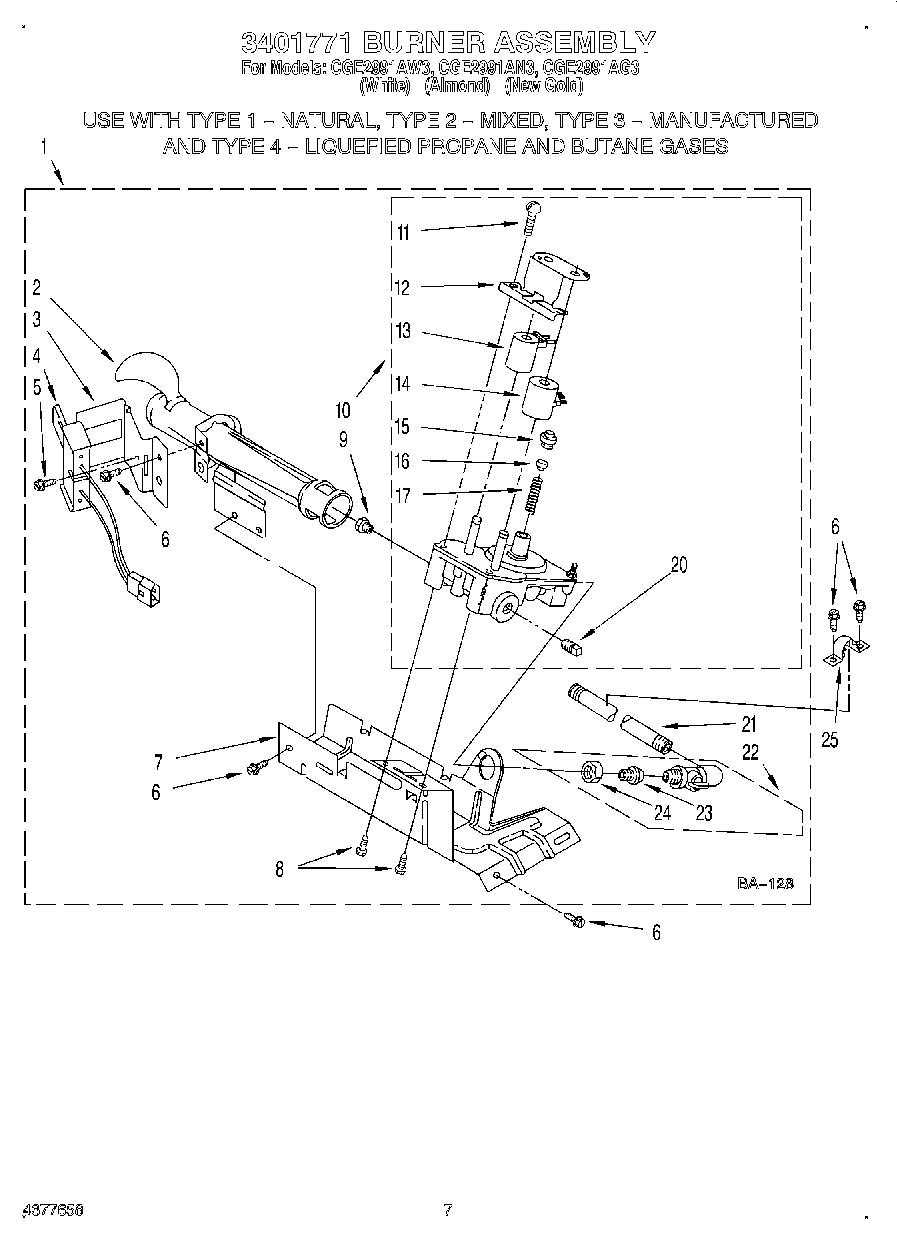

CGE2991AG3 04 – 3401771 BURNER ASSEMBLY, LIT/OPTIONAL

CGE2991AG3 04 – 3401771 BURNER ASSEMBLY, LIT/OPTIONAL

Written by

in

CGE2991AG3 04 – 3401771 BURNER ASSEMBLY, LIT/OPTIONAL

Products

PositionProduct
WP72107 Whirlpool Touchup
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
Golden Harvest (Uncut)
Golden Harvest
Almond (Uncut)
WPL LIT692257
Label, Operating Instructions
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350938 Whirlpool Spray Gun
350930 Whirlpool White Spray Paint
WPL LIT3401138
350956 Whirlpool Spray Assembly
Instructi
WPL LIT348772
1Burner Assembly, 60 Hz. (Refer To Burner Assembly Parts Page For Further Breakdown)
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6SCREW
7Base, Burner
8WP693995 Whirlpool Screw
9Orifice, Burner (Type 2)
9WP234868 Whirlpool Gas Orifice
9Orifice, Burner (Type 3)
9WP234826 Whirlpool Gas Orifice
9WP229742 Whirlpool Gas Orifice
10279923 Whirlpool Gas Valve
11694421 Whirlpool Screw Assembly
12694538 Whirlpool Bracket
14279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15WP694424 Whirlpool Limiter
16WP694423 Whirlpool Regulator
17WP694422 Whirlpool Spring
20W10295523 Whirlpool Plug
21Pipe, Gas Supply
22Valve & Union, Shut-Off
233393767 Whirlpool Pipe
24Nut, Compression
25341029 Whirlpool Clamp
2549572A Whirlpool Dryer Propane Gas Conversion Kit
