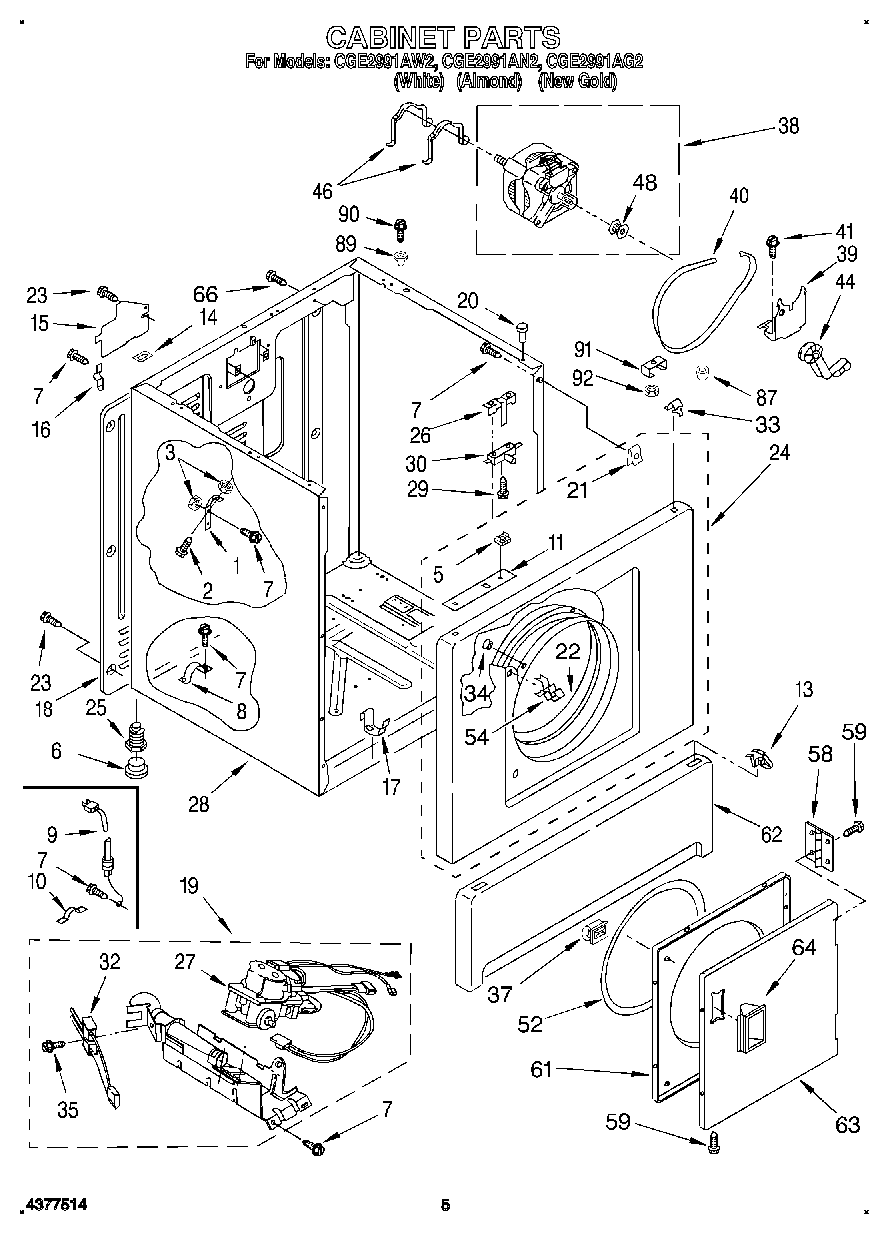

CGE2991AN2 03 – CABINET

CGE2991AN2 03 – CABINET

Written by

in

CGE2991AN2 03 – CABINET

Products

PositionProduct
1Bracket, Top Lock
2BOLT, 5/16-18 X 2 3/4
5WP90406 Whirlpool Nut
6WP3391943 Whirlpool Foot Boot
7SCREW
8341029 Whirlpool Clamp
9W11222083 Whirlpool Power Cord
108528351 Whirlpool Clip
11Bracket, Front Top Lock
13WP3388229 Whirlpool Dryer Spring Clip
1418849 Whirlpool Pad
15W11539855 Whirlpool Refrigerator Pump
16WP8066217 Whirlpool Hinge
17WP297092 Whirlpool Clip
18280040 Whirlpool Rear Panel
19Burner Assembly, 60 Hz. (Refer To Burner Assembly Parts Page For Further Breakdown)
20Locator, Top
21WP98234 Whirlpool Nut
22279264 Whirlpool Bearing and Seal Kit
23WP693995 Whirlpool Screw
24Front Panel Assembly (Golden Harvest)
24Front Panel Assembly (Almond)
24Front Panel Assembly (White)
2549621 Whirlpool Leveling Feet
26WP691581 Whirlpool Actuator
27279923 Whirlpool Gas Valve
28Cabinet (White (Includes Illus. Nos. 5, 7, 16, 41, and 57))
28Cabinet (Includes Illus. Nos.5,7,16,41, And 57.) (Almond)
28Cabinet Assembly (Includes Illus. Nos. 9, 15, 18, & 39) (New Gold)
29WP98129 Whirlpool Screw
30W10820036 Whirlpool Door Switch Kit
32279311 Whirlpool Dryer Flat Igniter with Bracket
33WP18776 Whirlpool Lock
34279220 Whirlpool Clip
35WPW10366705 Whirlpool Screw
37WP3389441 Whirlpool Door Catch
38279827 Whirlpool Dryer Drive Motor
39WP348780 Whirlpool Base
40341241 Whirlpool Dryer Drum Belt
413400500 Whirlpool Screw
44WP691366 Whirlpool Dryer Idler Pulley Assembly
46WP660658 Whirlpool Clamp
48WP8066184 Whirlpool Dryer Motor Pulley
52W11613302 Whirlpool Door Seal
54279570 Whirlpool Dryer Door Latch Kit
58WP348023 Whirlpool Hinge
59WP694091 Whirlpool Screw
61280077 Whirlpool Door
62Panel, Toe (White)
62Panel, Toe (Almond)
62WPL 697097
63Door, Front (Almond)
63WP348205 Whirlpool Door
63WPL 689319
64Handle, Door (Almond)
64WPL 689586
64WP686711 Whirlpool Door Handle
66W10850756 Whirlpool Screw
87WPL 356674
89Locator, Top
90WPL 427190
91WP487939 Whirlpool Refrigerator Nut
9290984 Whirlpool Nut
