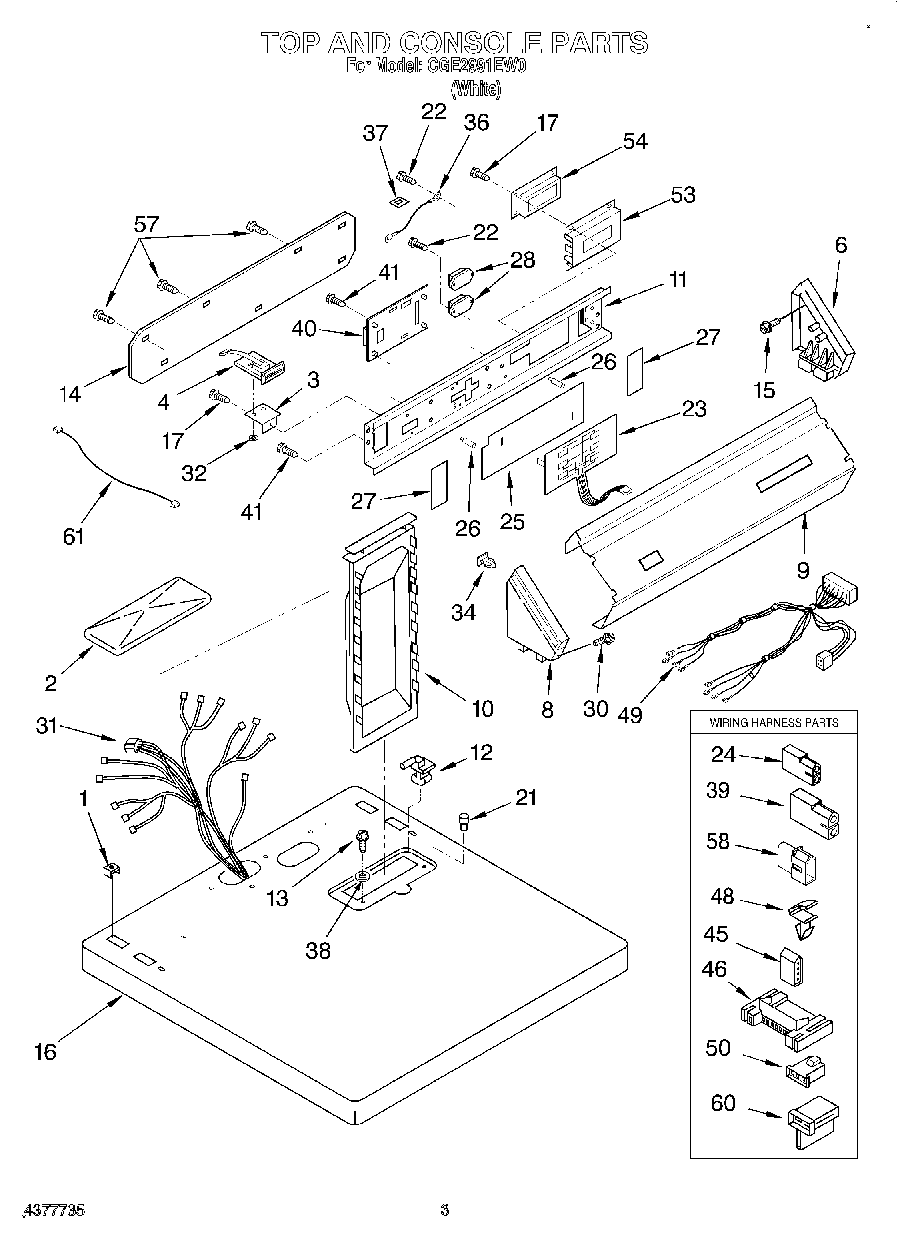

CGE2991EW0 02 – TOP AND CONSOLE

Products

Position	Product
1	WP357213 Whirlpool Hinge Stopper
2	Cover, Lint Screen (White)
3	Bracket, Card Reader
4	3949598 Whirlpool CD Reader
6	Cap, End (R.H.)
8	W11686050 Whirlpool Drive Motor
9	Panel, Control
10	WP349639 Whirlpool Lint Filter
11	Bracket, Control
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Panel, Rear
15	WPW10109200 Whirlpool Screw
16	Top
17	WP90767 Whirlpool Screw
21	Bumper, Lint Lid
22	SCREW
23	Switch, Membrane
24	Receptacle, Latching (2-Way) (Uses Terminal 94614)
25	Backer Plate
26	Mounting Stud
27	Backer Plate, Side (2)
28	WP8566493 Whirlpool Relay
30	WP388326 Whirlpool Screw
31	Harness, Wiring
32	Nut, Push-In
34	WP689559 Whirlpool Nut
36	Wire, Ground
37	W10113937 Whirlpool Clamp
38	Washer
39	WP717253 Whirlpool Dishwasher Connector
40	Board, Control
41	WPW10366705 Whirlpool Screw
45	Plug
46	3395683 Whirlpool Connector
48	WP3394427 Whirlpool Clip
49	Harness, Console
50	WP3403498 Whirlpool Connector
53	Bezel, Display
54	Display, Eletronic
57	WP693995 Whirlpool Screw
58	WPL 717315
60	WP3403499 Whirlpool Connector
61	VFD Cable
