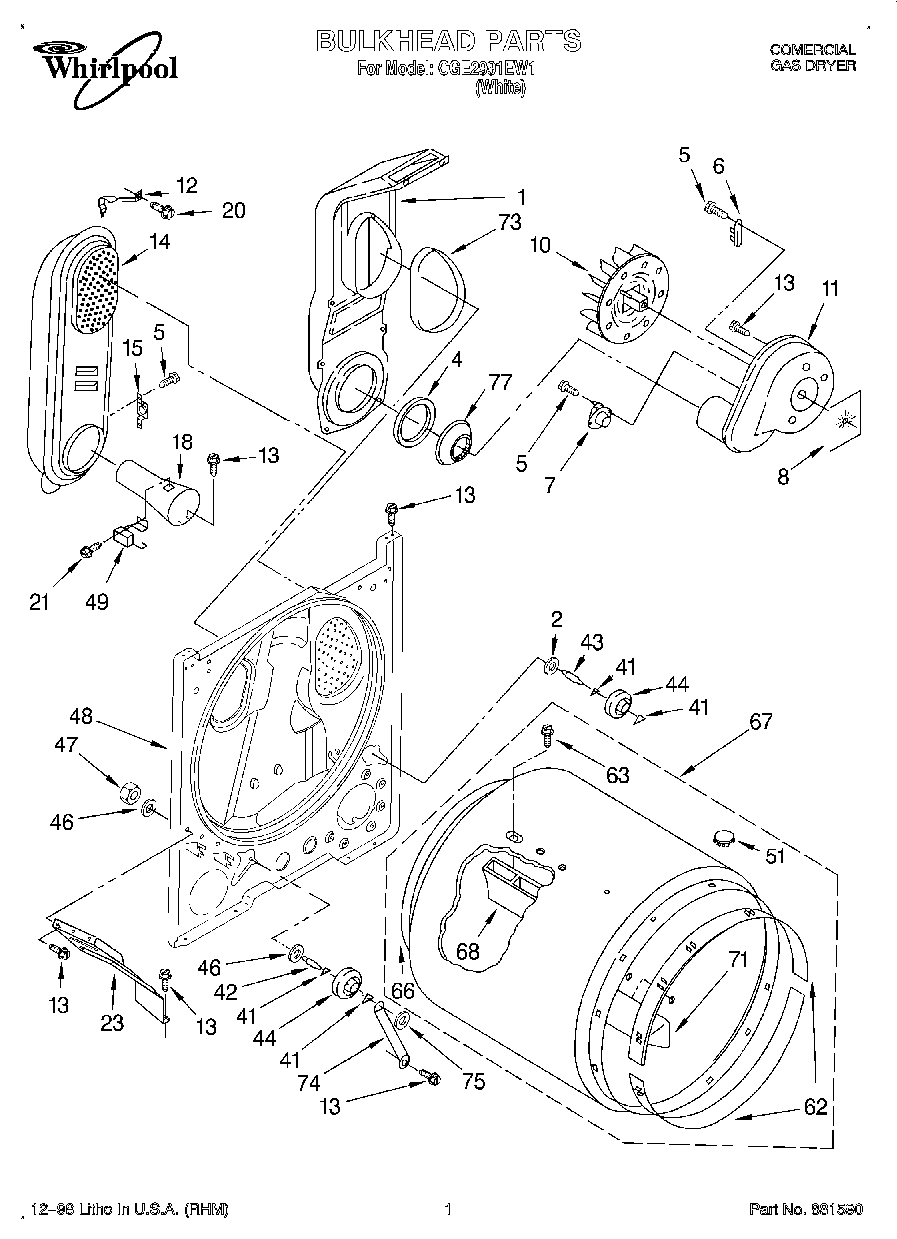

CGE2991EW1 01 – BULKHEAD, LIT/OPTIONAL

CGE2991EW1 01 – BULKHEAD, LIT/OPTIONAL

Written by

in

CGE2991EW1 01 – BULKHEAD, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Instructions, Installation
Tech Sheet
Label, Wiring Diagram
Golden Harvest (Uncut)
Golden Harvest
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
72017 Whirlpool Appliance Touch-Up Paint White
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
799344 Whirlpool Refrigerator Paint
Almond (Uncut)
WP72107 Whirlpool Touchup
1W11117429 Whirlpool Chute Assembly
2WP3388703 Whirlpool Washer
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6WP3392519 Whirlpool Dryer Thermal Fuse
7WP3387134 Whirlpool Dryer Cycling Thermostat
8Seal, Blower
10WP694089 Whirlpool Dryer Blower Wheel
11WP8577230 Whirlpool Housing
12279771 Whirlpool Clip
13SCREW
14279980 Whirlpool Box
15W11050897 Whirlpool Dryer High Limit Thermostat
18WP8066049 Whirlpool Funnel Assembly
20WP489463 Whirlpool Refrigerator Screw
21WP3390631 Whirlpool Screw
23W11398682 Whirlpool Bracket
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP3359452 Whirlpool Nut
48W11178668 Whirlpool Bulkhead
49WP338906 Whirlpool Dryer Gas Sensor
518066086 Whirlpool Plug
62279441 Whirlpool Front Bearing Ring
63WPW10109200 Whirlpool Screw
66W10612022 Whirlpool Felt Seal
67W10899578 Whirlpool Dryer Drum Assembly
68BAFFLE-DRM
71WP3403636 Whirlpool Drum Baffle
73SEAL
74W11684613 Whirlpool Bracket
75WP90296 Whirlpool Clip
77W11233063 Whirlpool Shield Assembly
