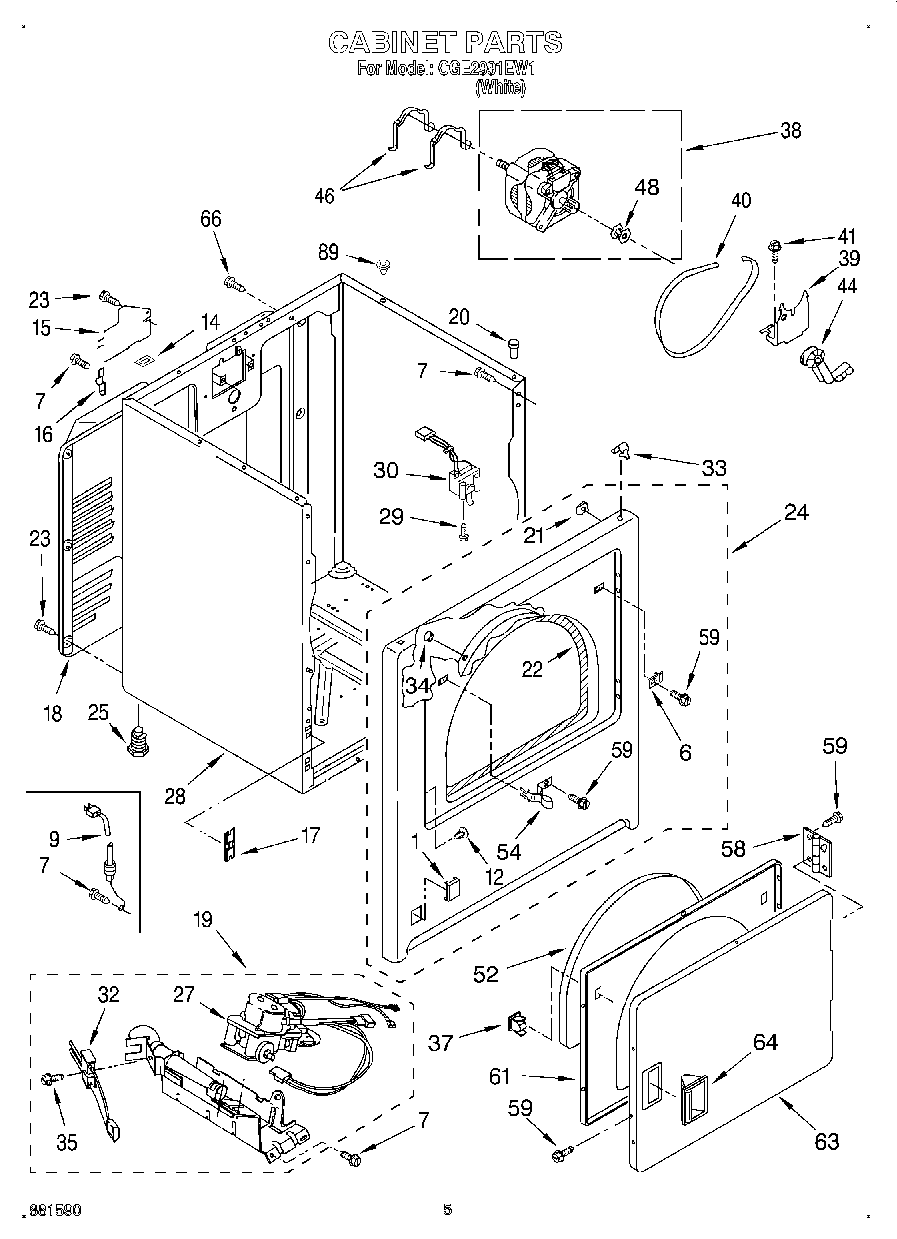

CGE2991EW1 03 – CABINET

Products

Position	Product
1	Plug, Front Panel (White)
6	WP3403630 Whirlpool Plug
7	SCREW
9	W11222083 Whirlpool Power Cord
12	WP3404413 Whirlpool Plug
14	18849 Whirlpool Pad
15	W11539855 Whirlpool Refrigerator Pump
16	WP8066217 Whirlpool Hinge
17	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
18	280043 Whirlpool Rear Panel
19	Burner Assembly, 60 Hz. (Refer To Burner Assembly Parts Page For Further Breakdown)
21	WP98234 Whirlpool Nut
22	W11035878 Whirlpool Bearing and Seal
23	WP693995 Whirlpool Screw
24	Front Panel Assembly
25	49621 Whirlpool Leveling Feet
27	279923 Whirlpool Gas Valve
28	Cabinet (Includes Illus. Nos. 5, 7, 15, 16 & 57) (White)
29	WP3395530 Whirlpool Screw
30	WP3406105 Whirlpool Door Switch
32	279311 Whirlpool Dryer Flat Igniter with Bracket
33	WP18776 Whirlpool Lock
34	279220 Whirlpool Clip
35	WPW10366705 Whirlpool Screw
37	279570 Whirlpool Dryer Door Latch Kit
38	279827 Whirlpool Dryer Drive Motor
39	WP348780 Whirlpool Base
40	341241 Whirlpool Dryer Drum Belt
41	3400500 Whirlpool Screw
44	WP691366 Whirlpool Dryer Idler Pulley Assembly
46	WP660658 Whirlpool Clamp
48	WP8066184 Whirlpool Dryer Motor Pulley
52	SEAL-DOOR DRYER
54	W11429589 Whirlpool Strike
58	WPW10362431 Whirlpool Hinge Assembly
59	WP488627 Whirlpool Refrigerator Screw
61	WP3402341 Whirlpool Door
63	W10861227 Whirlpool Door Assembly
64	WP3405184 Whirlpool White Door Handle
66	W10850756 Whirlpool Screw
89	Locator, Top
