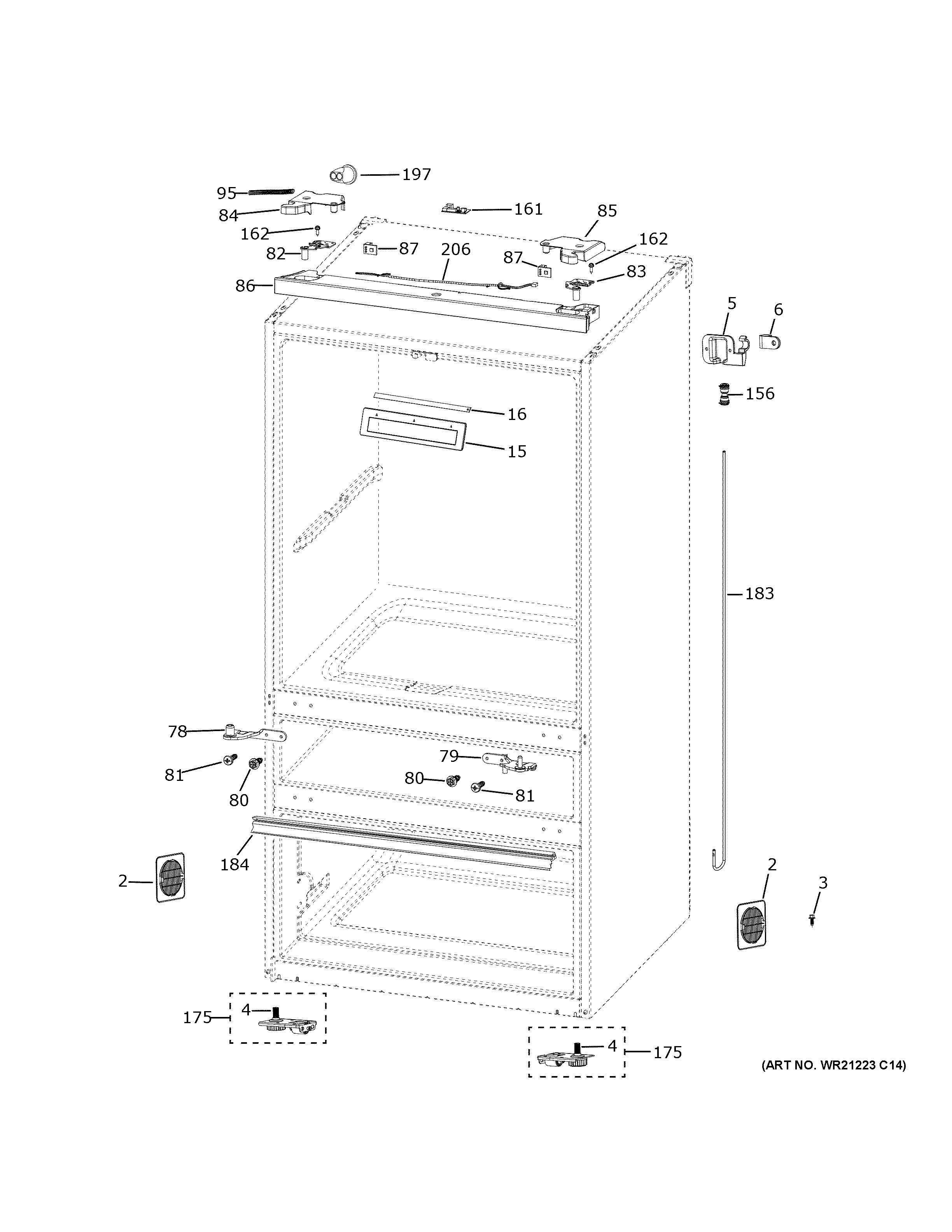

CGE29DM5TCS5 CASE PARTS

Products

PositionProduct
2VENT COVER SIDE CASE
3WR02X27683 GE Screw
4WR01X31892 GE Refrigerator Leveling Leg
5WATER LINE COVER
6WATER LINE CLIP
15WR02X31979 GE Gray LED Shield
16WR55X31998 GE Refrigerator Ceiling LED Light
78WR13X31786 GE Refrigerator Left Lower Door
79WR13X31787 GE Refrigerator Right Door Low E
80WR01X31884 GE Lower Hinge Screw
81WR01X31986 GE Lower Hinge Screw
82WR13X32502 GE Refrigerator Left Upper Door
83WR13X31769 GE Refrigerator Door Right Upper
84WR17X31988 GE Refrigerator Top Left Hinge Cover
85WR17X31858 GE Refrigerator Top Right Hinge Cover
86TOP INTERFACE & HOUSING
87WR55X31994 GE Refrigerator Reed Switch
95DOOR WATER LINE SPRING
156WR02X13738 GE Refrigerator Coupler Straight 1/4
161GEA2 WIFI/BLE BOARD W/INSTRUCTIONS
162WR02X32482 GE Serrated Flange Hex M6x16
175WR01X35645 GE Refrigerator Front Wheel Assembly
183WR02X32126 GE Refrigerator PEX Water Line
184WR14X41645 GE Refrigerator Upper Gasket
197DOOR WATER LINE GROMMET
206TOP INTERFACE HARNESS
