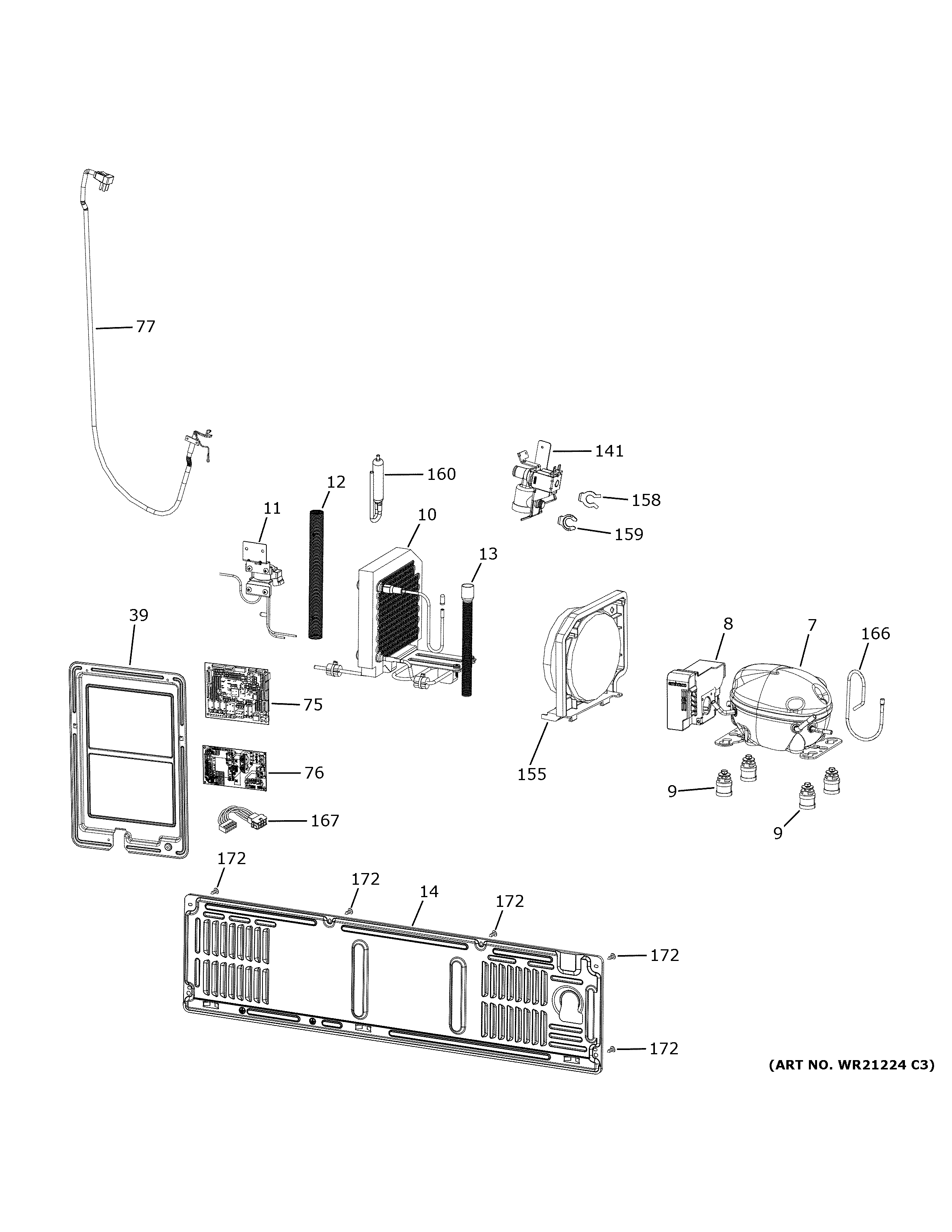

CGE29DM5TCS5 MACHINE COMPARTMENT

CGE29DM5TCS5 MACHINE COMPARTMENT

Written by

in

CGE29DM5TCS5 MACHINE COMPARTMENT

Products

PositionProduct
7WR87X43007 GE Compressor Service Kit
8WR55X43006 GE Inverter
9WR02X32074 GE Compressor Mounting Hardware
10WR87X32099 GE Refrigerator Condenser
113 WAY VALVE W/ BRACKET
12WR01X28429 GE Refrigerator Drain Tube
13REFRIGERATOR DRAIN TUBE
14WR82X31888 GE Rear Access Cover
39WR02X31778 GE Refrigerator Main Control Board Cover
75WR55X47345 GE Main Control Board
76WR55X31984 GE Refrigerator Power Supply Board
77WR55X32470 GE Refrigerator Power Cord
141ISOLATION WATER VALVE
155WR60X32087 GE Refrigerator Condenser Fan with Foam
158WR01X11040 GE Refrigerator Quick Clip Connect 5/16
159WR01X11041 GE Refrigerator Quick Clip Connector 1/4
160WR87X30875 GE Refrigerator R600 Dryer with Red Cap
166WR84X36434 GE Suction Jumper Tube
167PERSONALITY HARNESS
172SCREW
