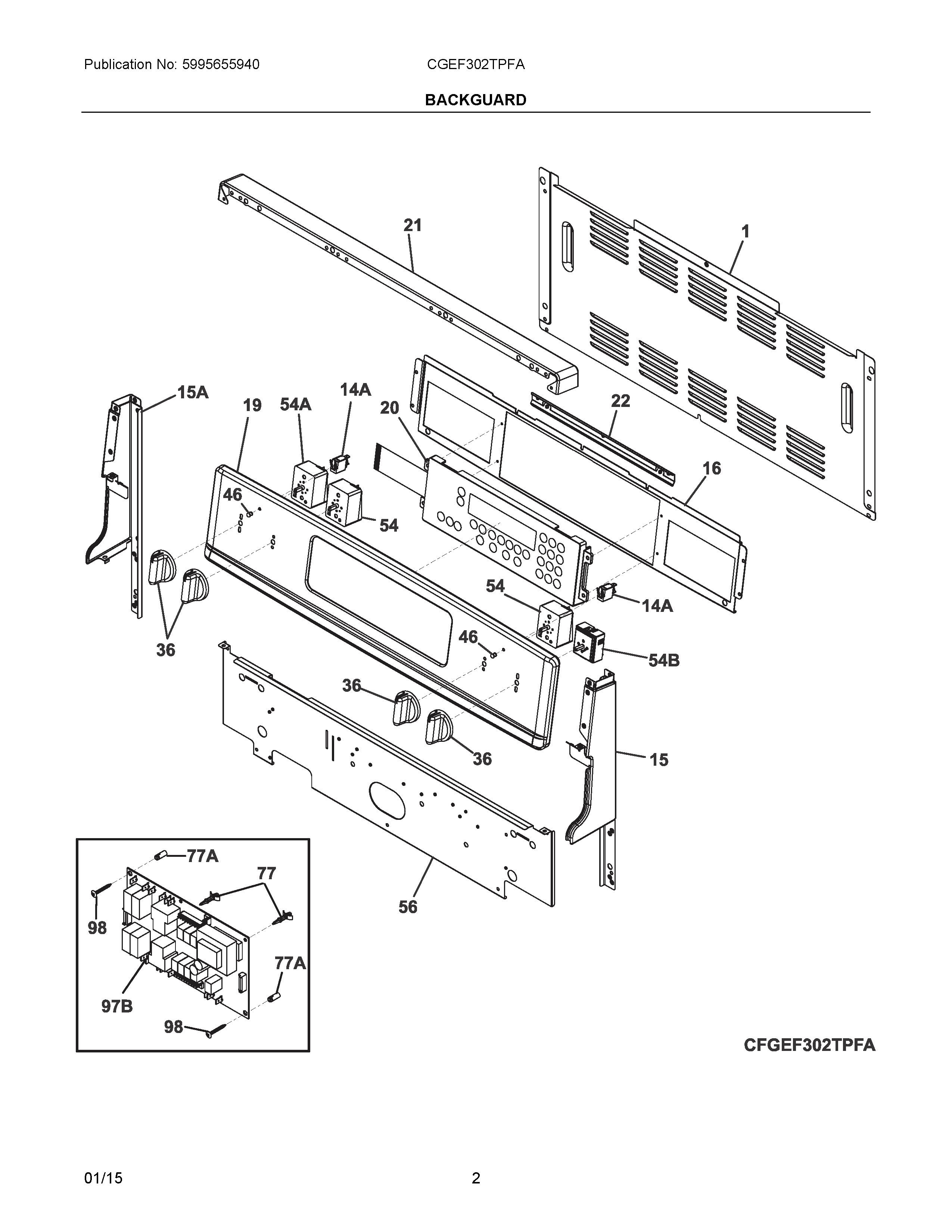

CGEF302TPFA 02 – BACKGUARD

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	WCI 807705101
NI	318578352 Frigidaire Harness
1	WCI 316557600
14A	316022500 Frigidaire Oven Warmer Drawer Zone Indicator Light Lamp
15A	807437110 Frigidaire Endcap
15	807437109 Frigidaire Endcap
16	BRACKET, TIMER SUPPORT
19	WCI 316572446
20	139092903 Frigidaire Controller
21	316546605 Frigidaire Oven Cap
22	WCI 318573700
36	KNOB, CONTROL, STAINLESS, (5)
36A	316564509 Frigidaire Oven Knob
46	316557300 Frigidaire Range Indicator Light Lens
54A	316436001 Frigidaire Oven Range Infinite Burner Switch
54	316436000 Frigidaire Oven Range Surface Element Switch
54B	316238201 Frigidaire Oven Switch
56	SHIELD, BACKGUARD, BLACK, INNER
77	316247900 Frigidaire Oven Spacer
77A	316114100 Frigidaire Oven Spacer
97B	WCI 316443947
98	5304401490 Frigidaire Oven Screw
